Transmission Position Sensor/Switch: Locations

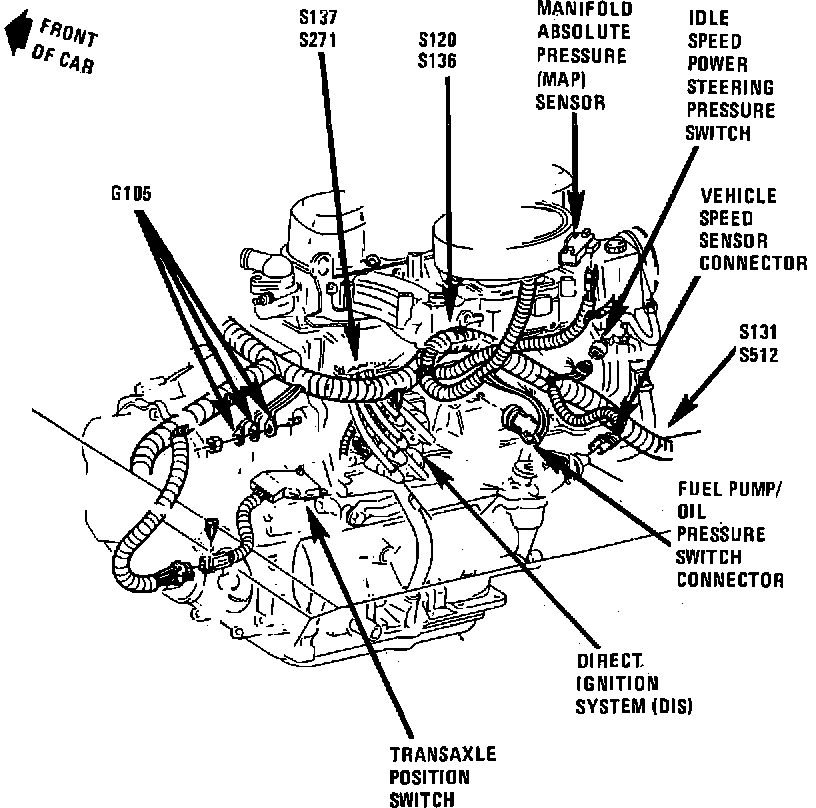

Rear Of Engine.:

Top LH Rear Of Transaxle

Applicable to: Century w/4-151/2.5L
