Module & Transmitters

  1. Move ignition switch into "RUN" position. Jumper program connector terminal A to terminal B; door locks will lock and unlock in approximately 2 seconds. See Fig 1 .
  2. Press unlock button on one transmitter twice, pausing briefly between presses; door locks will lock and unlock in approximately 2 seconds. Repeat procedure using other transmitter. If only one transmitter is being used, repeat procedure using same transmitter. Disconnect jumper from program connector.

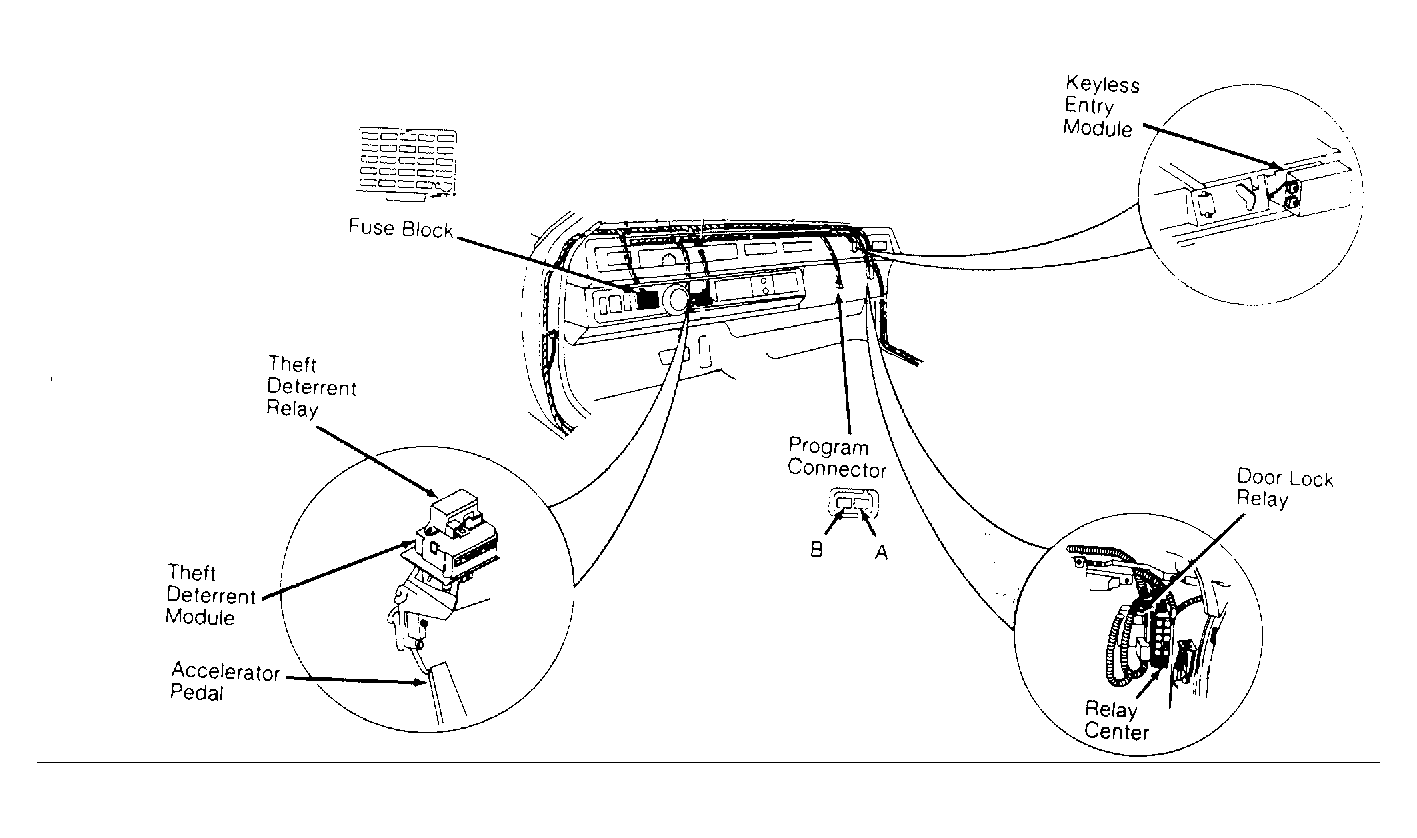

Fig 1: Electra & Park Avenue Remote Keyless Entry Components
G109253Courtesy of GENERAL MOTORS CORP.
