Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| ABS Controller Fuse | Behind dash, to right of steering column. | |
| ABS Main Relay Fuse | On center of firewall, above ABS main relay. | |
| ABS Pump Fuse | On firewall, above ABS main relay. | |
| ABS Pump Relay Fuse | In harness, behind dash and above brake pedal. | |
| Circuit Breakers | ||
| Headlights (Toronado) | In fuse block. | |
| High Beam (Reatta & Riviera) | In fuse block. | |
| Horn/Defogger | In fuse block. | |
| Low Beam (Reatta & Riviera) | In fuse block. | |
| Power Seats | In fuse block. | |
| Power Windows (Toronado) | In fuse block. | |
| Retained Accessory Power | In fuse block. | |
| Fuse Block | ||
| Reatta & Riviera | Under center of dash, on right front side of console. | |
| Toronado | Behind right side of dash, behind glove box. See Figure . | |
| Fusible Links | ||
| ABS Main Relay (Red) | In harness, behind battery. | |
| ABS Pump Fuse | In harness, behind battery. | |
| Cooling Fans (Black) | In harness, behind battery. | |
| Defogger & Power Accessories (Rust - Exc. Toronado) | In harness, behind battery. | |
| ECM & Radio (Blue - Exc. Toronado) | In harness, behind battery. | |
| ECM & Radio (Gray - Toronado) | In harness, behind battery. | |
| Fuse Block & Horn (Blue) | In harness, behind battery. | |
| Headlights (Rust - Exc. Toronado) | In harness, behind battery. | |
| Headlights (Black - Toronado) | In harness, behind battery. | |
| Headlight Doors & Stop/Hazard (Orange) | In harness, behind battery. | |
| Ignition (Black - Exc. Toronado) | In harness, behind battery. | |
| Ignition (Orange - Toronado) | In harness, behind battery. | |
| Power Module (Black - Exc. Toronado) | In harness, behind battery. | |
| Power Module (Blue - Toronado) | In harness, behind battery. | |
| Power Seats (Black - Exc. Toronado) | In harness, behind battery. | |
| Power Seats (Gray - Toronado) | In harness, behind battery. | |
| Starter (Rust) | At starter solenoid. | |
| Telephone (Orange) | In harness, behind battery. | |
| Underhood Relay Block (Blue & Gray) | In harness, behind battery. | |

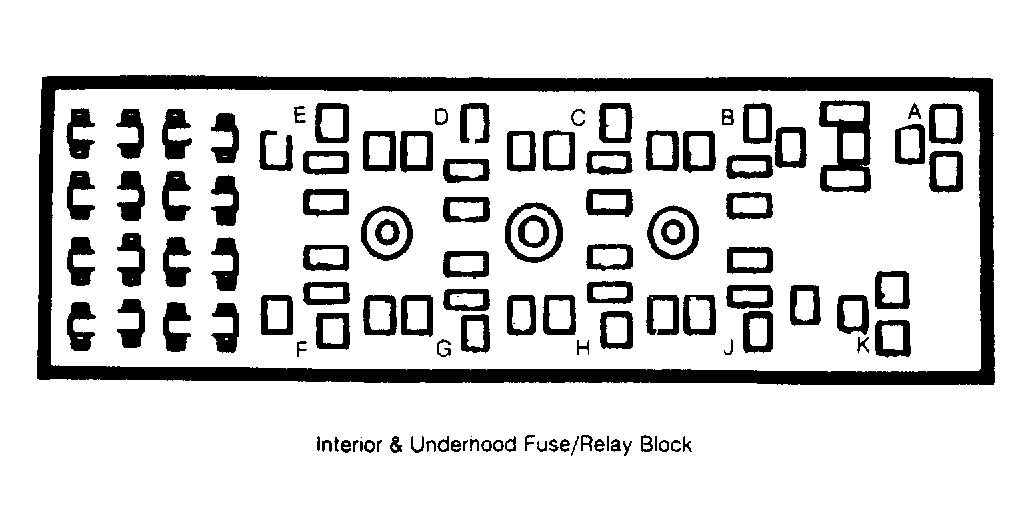

| Interior Fuse/Relay Block (Except Toronado) | At right side of center console. See Figure . | |
| Interior Fuse/Relay Block (Toronado) | Behind right side of dash, by glove box. See Figure . | |

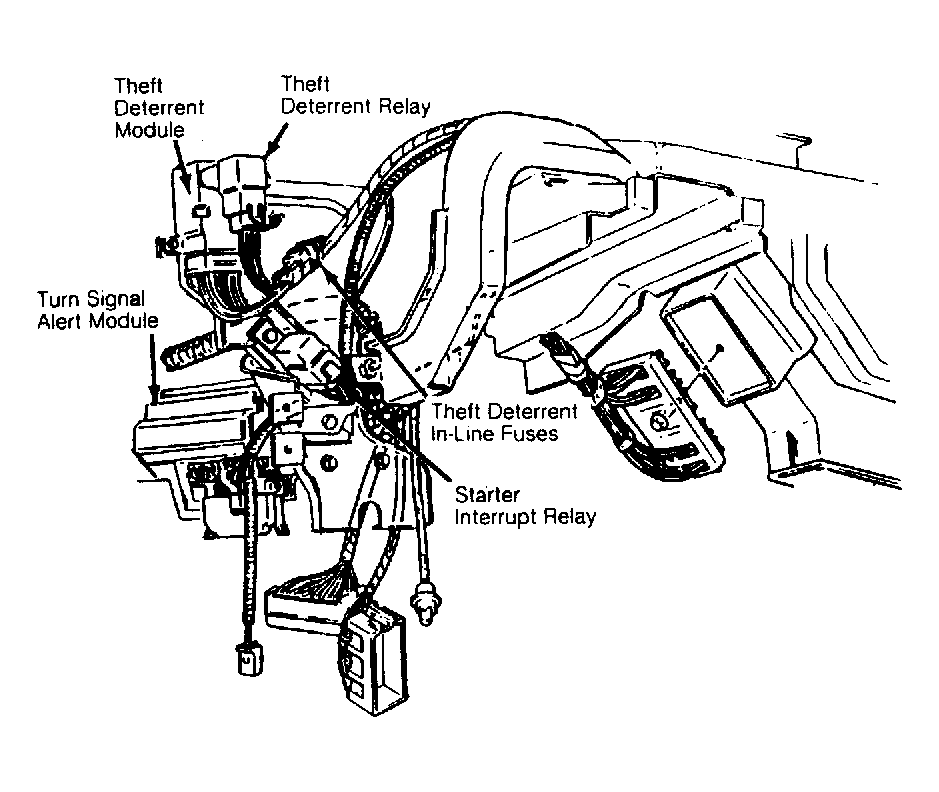

| Theft Deterrent Relay In-Line Fuses | In harness, next to theft deterrent module. See Figure . | |
| Underhood Fuse/Relay Block | ||
| Relay/Fuse Block | At left front corner of engine compartment. See Figure . | |

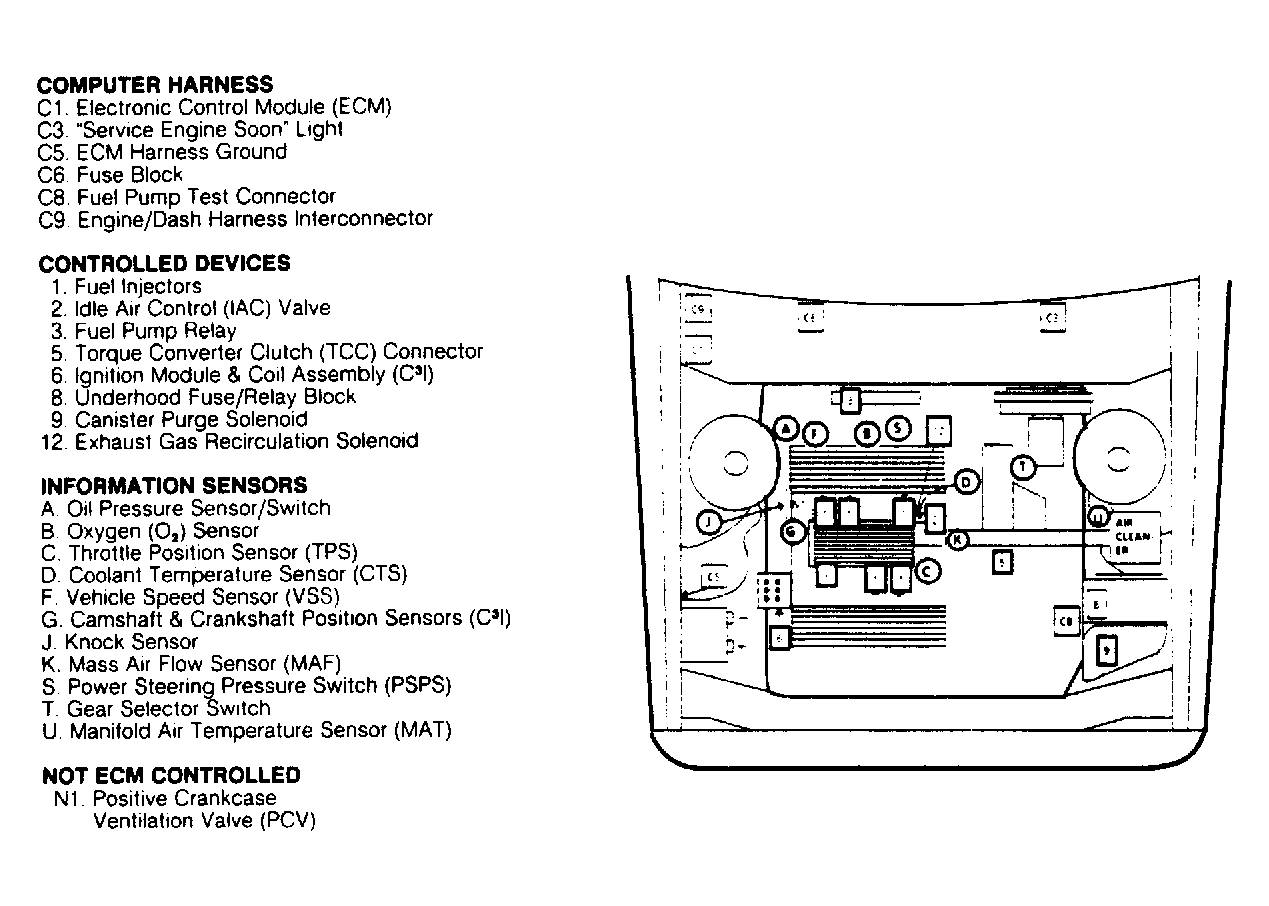

| Component Location | At left front corner of engine compartment. See Figure . | |
