Diagnostic Aids
An intermittent Code 13 may be caused by a poor connection, rubbed through wire insulation or a wire broken inside the insulation. Inspect ECM harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, poor terminal to wire connection and damaged harness.

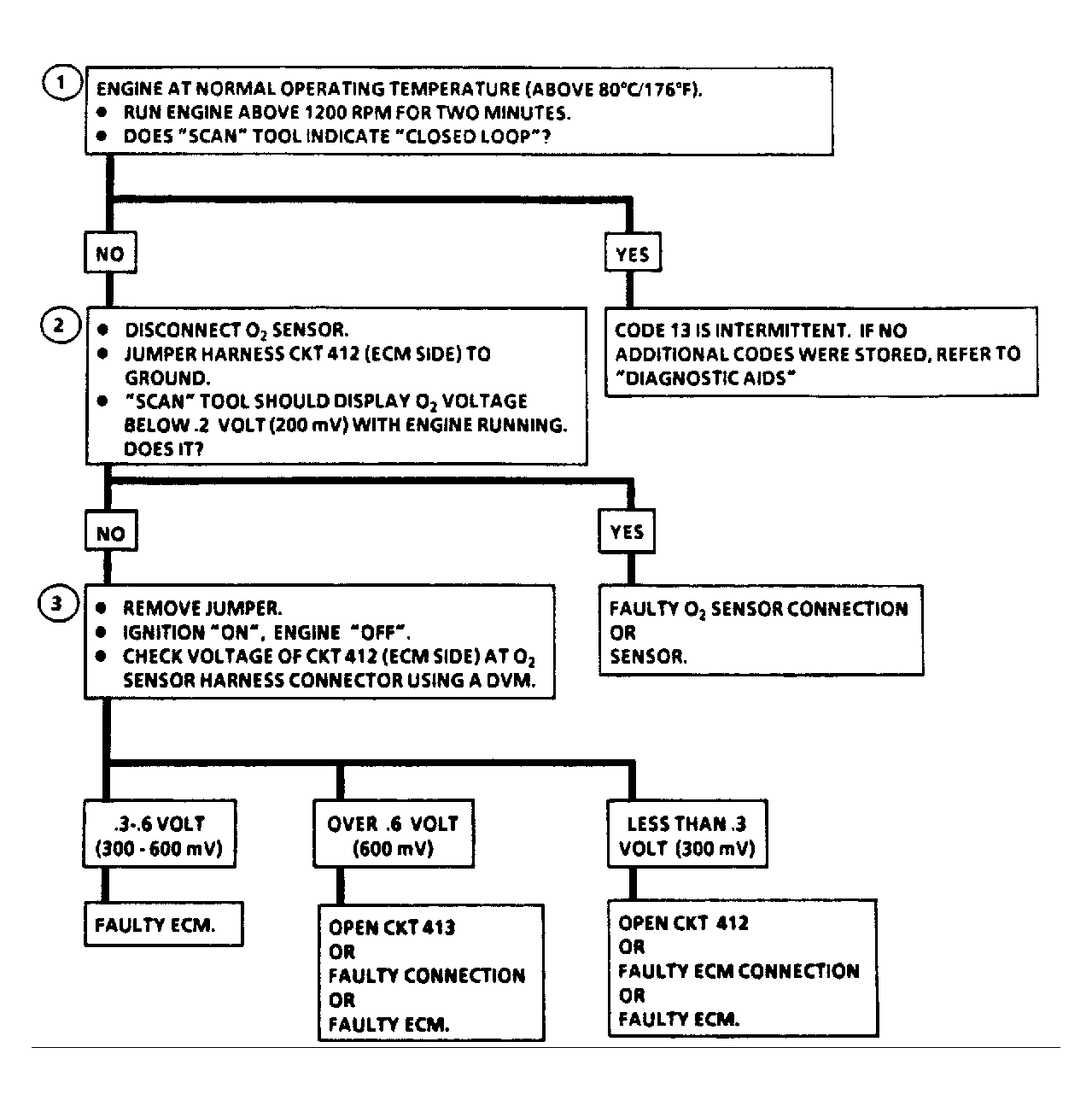

If connections and harness check out okay, "Scan" oxygen sensor voltage while moving related connectors and wiring harness. Engine should be warm, running at part throttle in "closed loop". If the failure is induced, the oxygen sensor voltage reading will change from its normal fluctuating voltage (greater than 600 mV to less than 300 mV) to a fixed value around 450 mV. This may help to isolate the location of the malfunction.
