Note on Intermittents

If an intermittent Code B121 is being set, manipulate related. When BI82 displays change-of-state, an "X" will be indicated. Check circuit for an intermittent open or short.

Fig 1: Code B121: Circuit Diagram

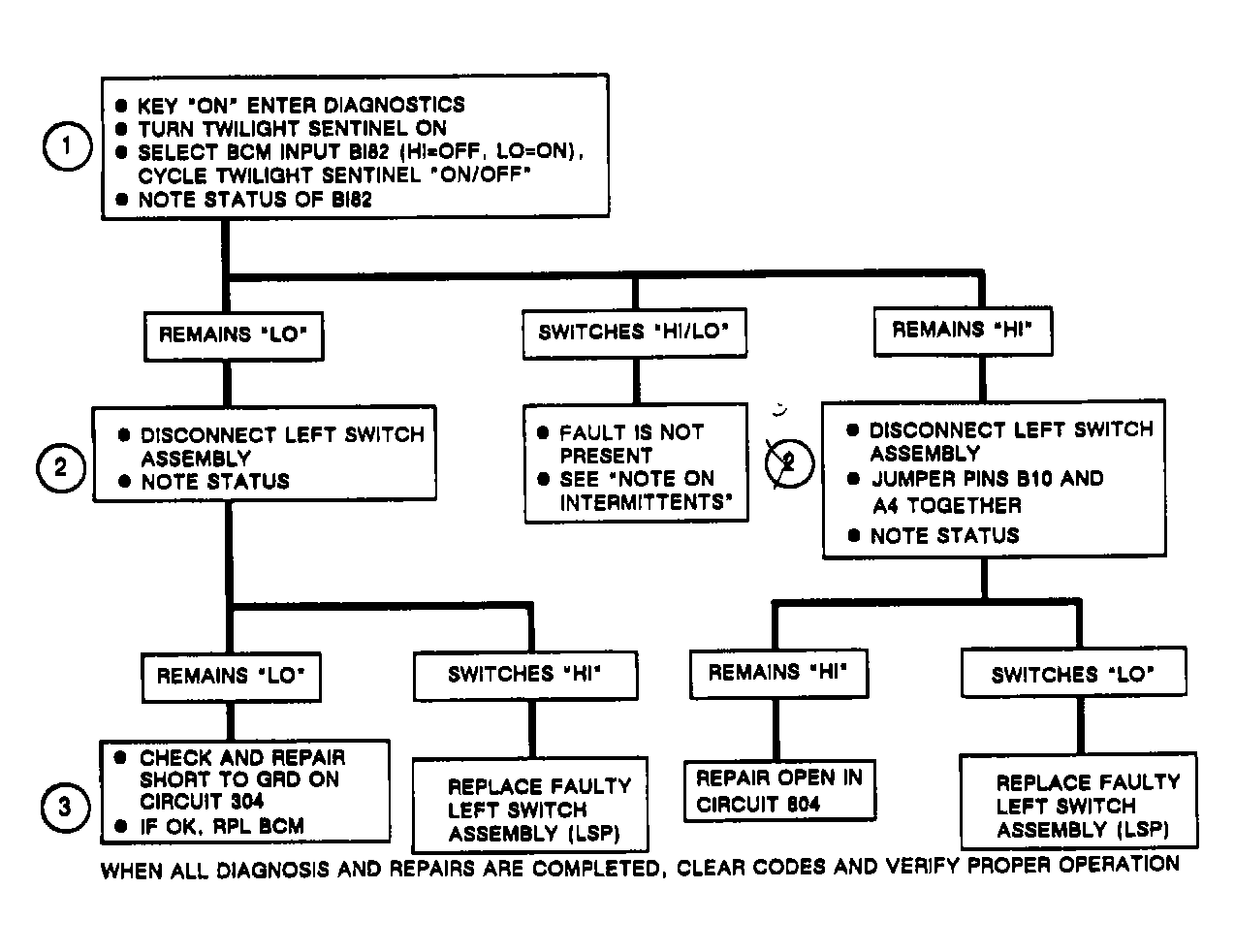

Fig 2: Code B121: Flow Chart Twilight Enable Switch Circuit
