Safety Belt Indicator Driver Module

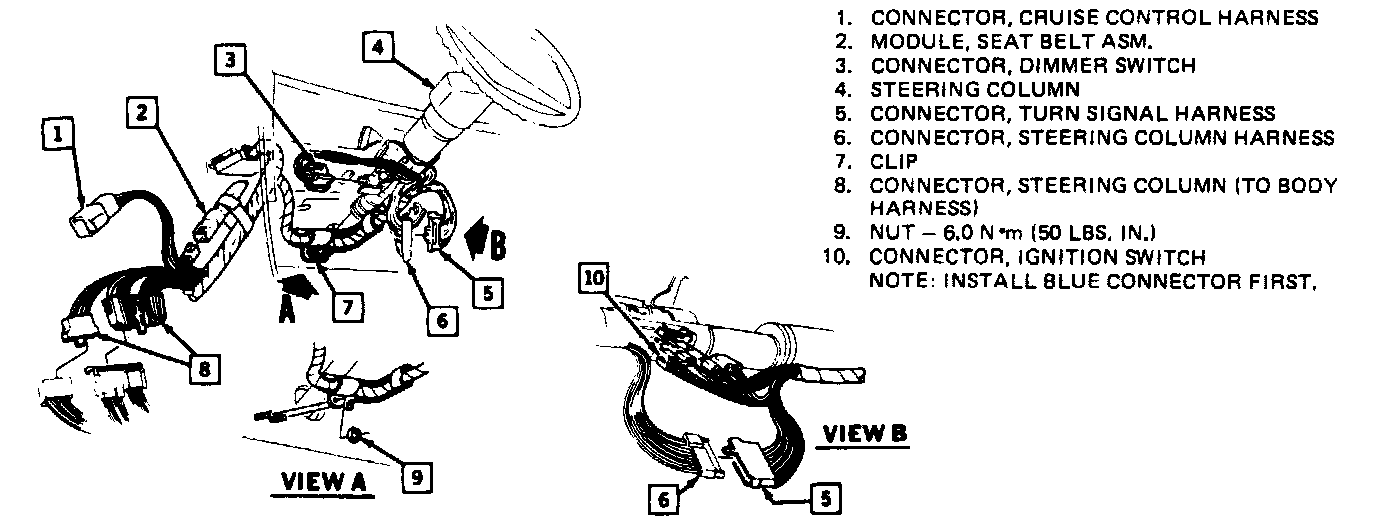

Steering Column To I/P Wiring:
Located in I/P, LH of steering column taped to I/P harness.
