Note On Intermittents

If an intermittent Code B121 is being set, manipulate related wiring. When BI82 displays change-of-state, an "X" will be indicated. Check circuit for an intermittent open or short.

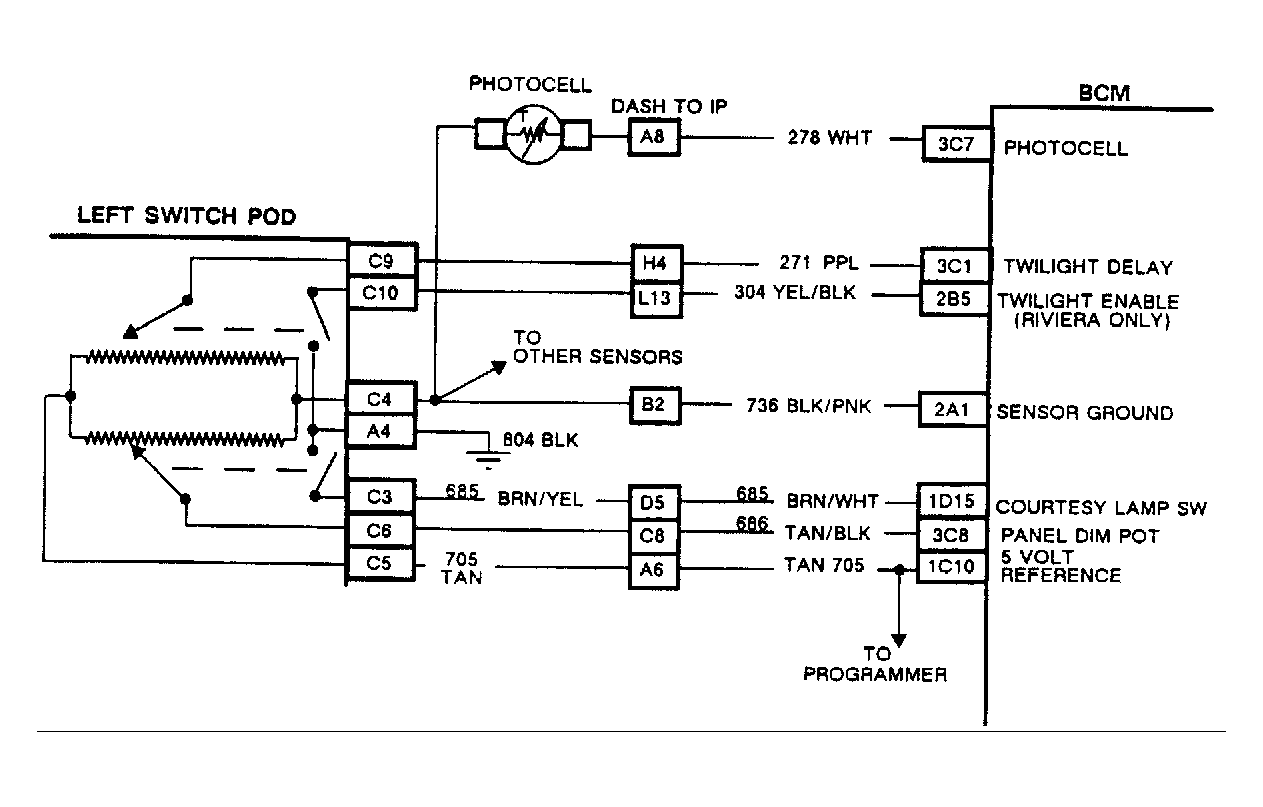

Fig 1: Code B121, Schematic, Twilight Enable Switch Circuit

Fig 2: Flow Chart, Code B121, Twilight Enable Switch Circuit
