Diagnostic Aids

Outside interference such as CB antenna lead near PCM wiring harness may cause a false servo position sensor signal, setting Code EO68.

Fig 1: Code EO68, Schematic, System Problem Using Tech 1

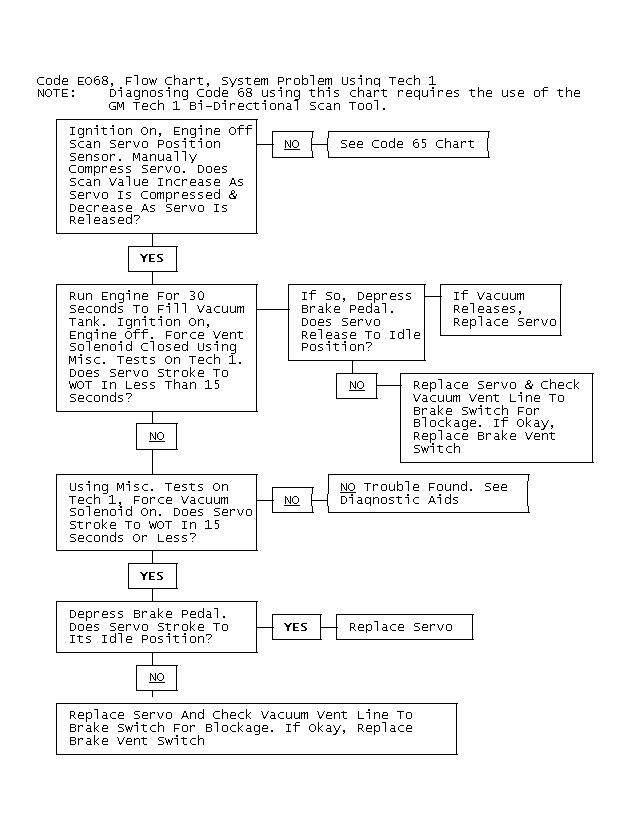

Fig 2: Code EO68, Flow Chart, System Problem Using Tech 1
