Wiring Diagrams

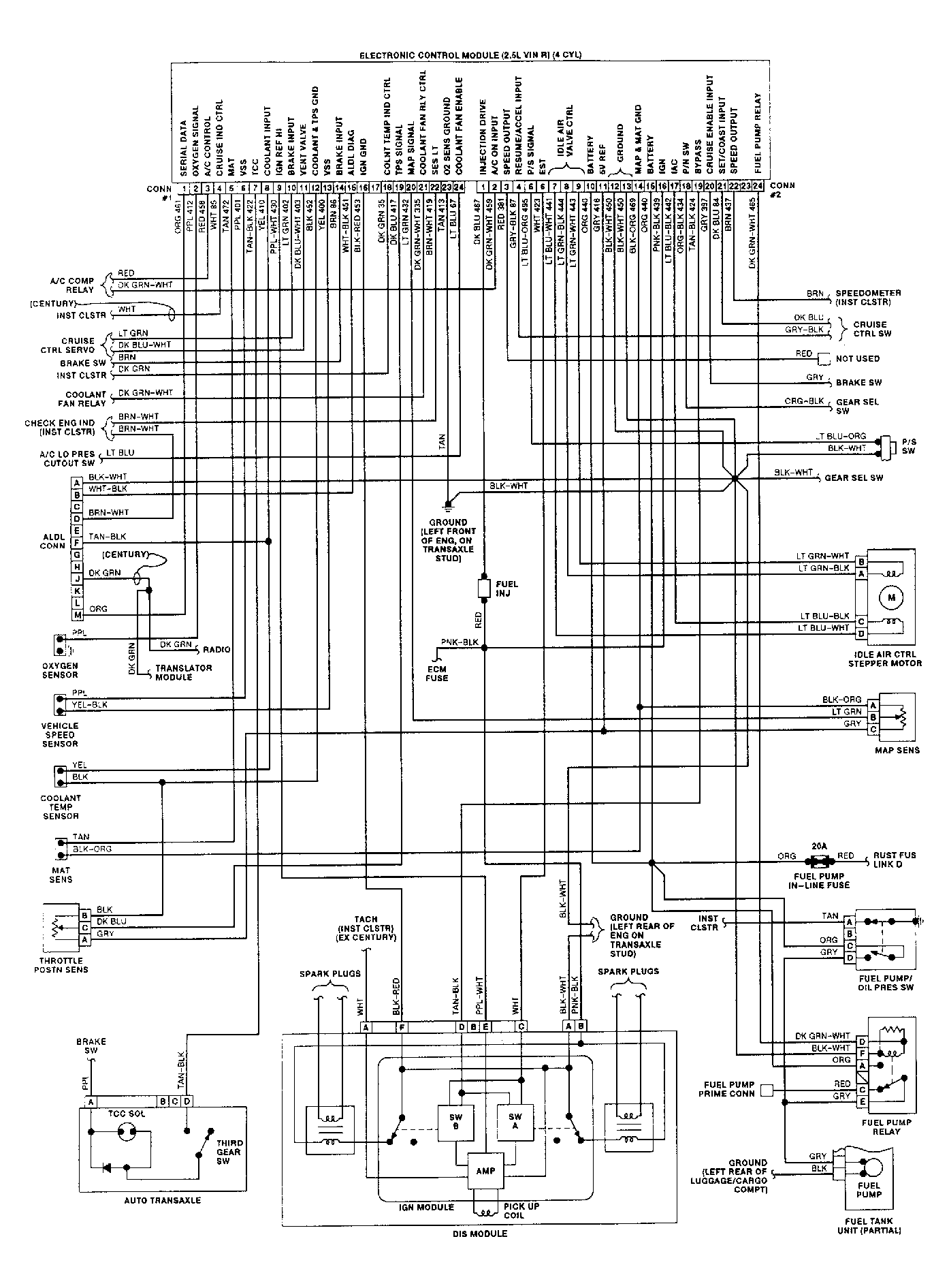

Fig 1: ECM Wiring Diagram (2.5L VIN R)

G92J05851

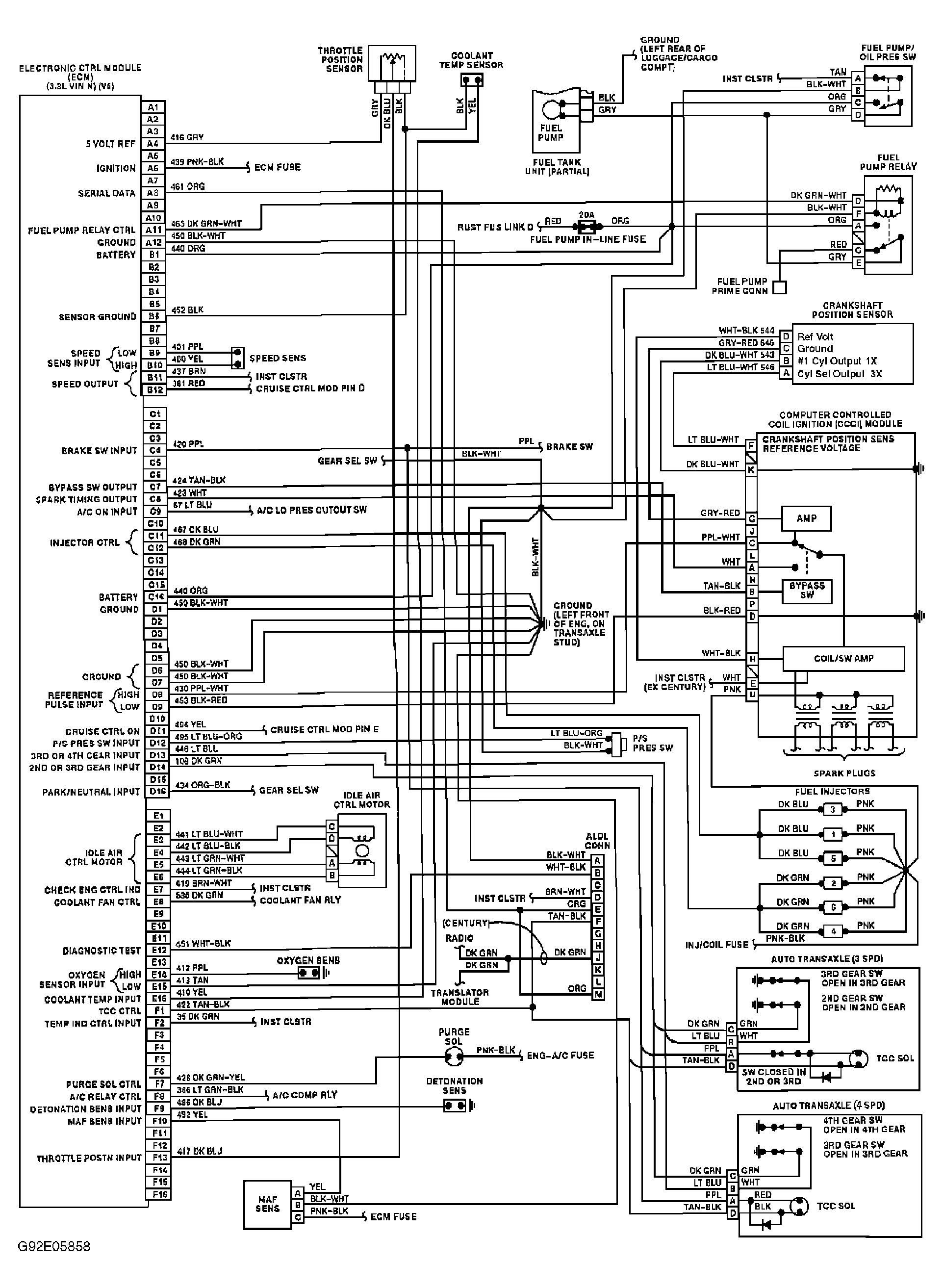

Fig 2: ECM Wiring Diagram (3.3L VIN N)

G92E05858
