Wiring Diagrams

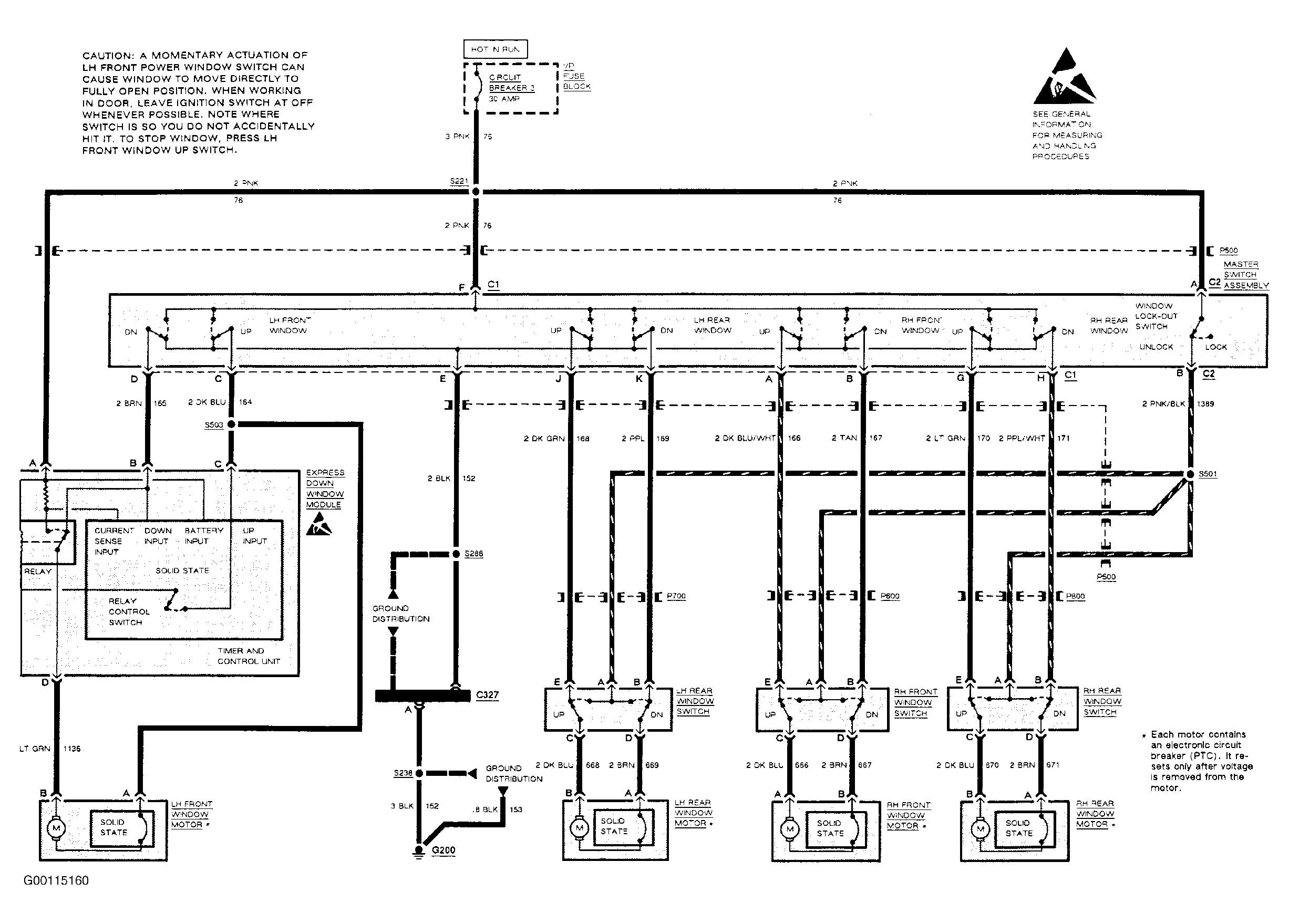

Fig 1: Power Window Wiring Diagram (LeSabre)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
