Code 39, TCC Ckt, Flow Chart, W/4T60 Transaxle

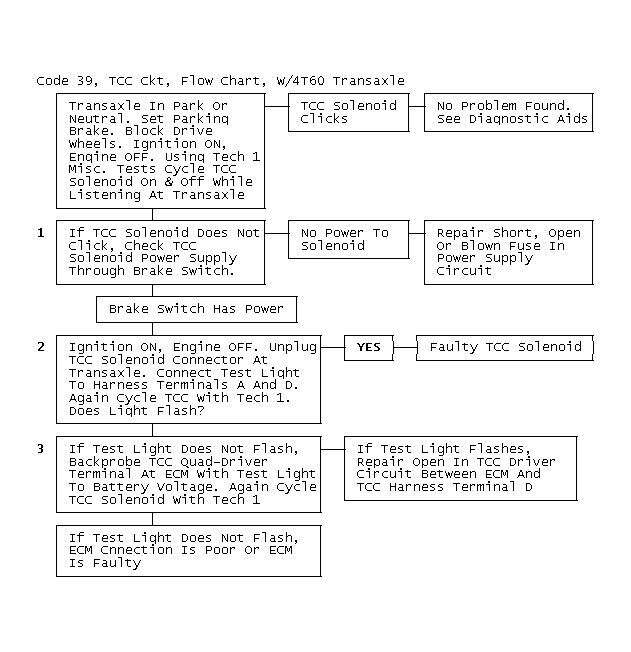

Fig 1: Code 39, TCC Ckt, Flow Chart, W/4T60 Transaxle
