Engine Controls - Tests W/Codes - 3.8L PFI
>>
Pcm/BCM Code Charts
>>
Code 69, A/C Head Pressure Switch
>>
Code 69, Flow Chart, A/C Head Pressure Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code 69, Flow Chart, A/C Head Pressure Switch

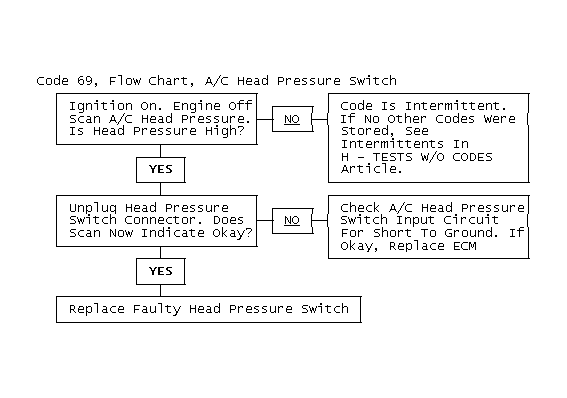

Fig 1: Code 69, Flow Chart, A/C Head Pressure Switch
