Ignition Module

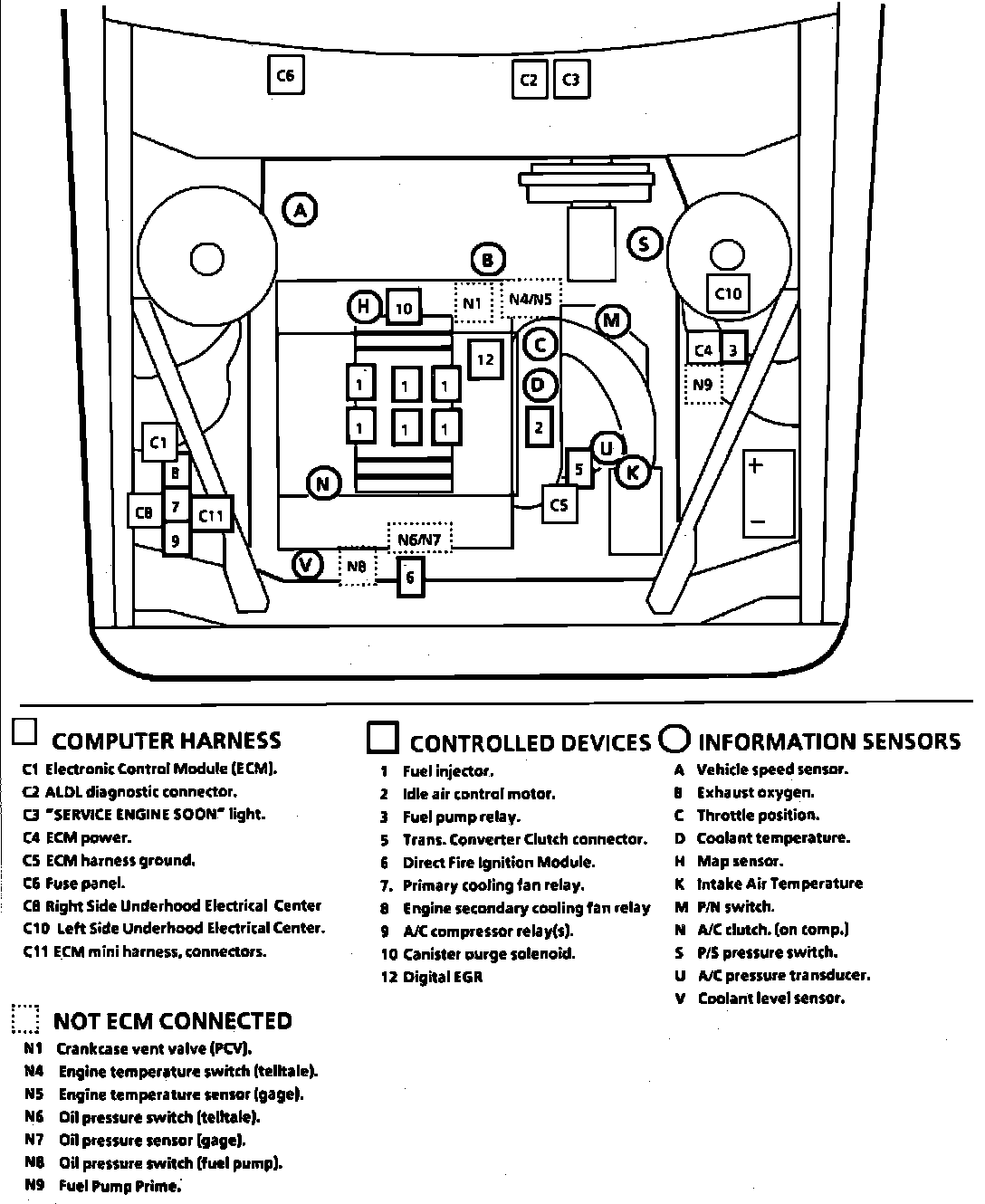

Engine Compartment Component Locations.:
Upper Rear Of Engine
Applicable to: 1992 w/3.1L/V6-192 & 3.8
