Electronic Brake Control Module (EBCM)

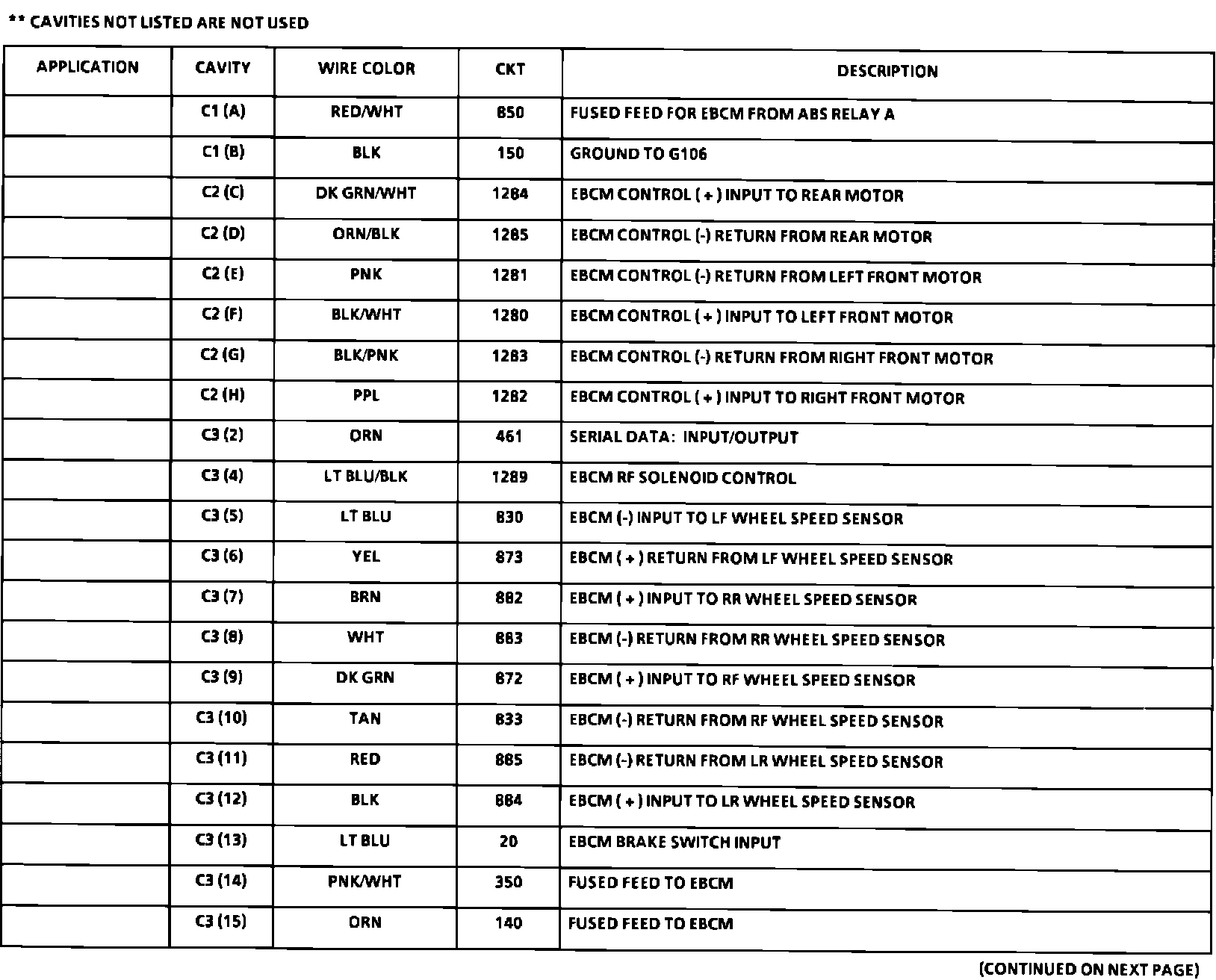

Electronic Brake Control Module (EBCM) Connector:

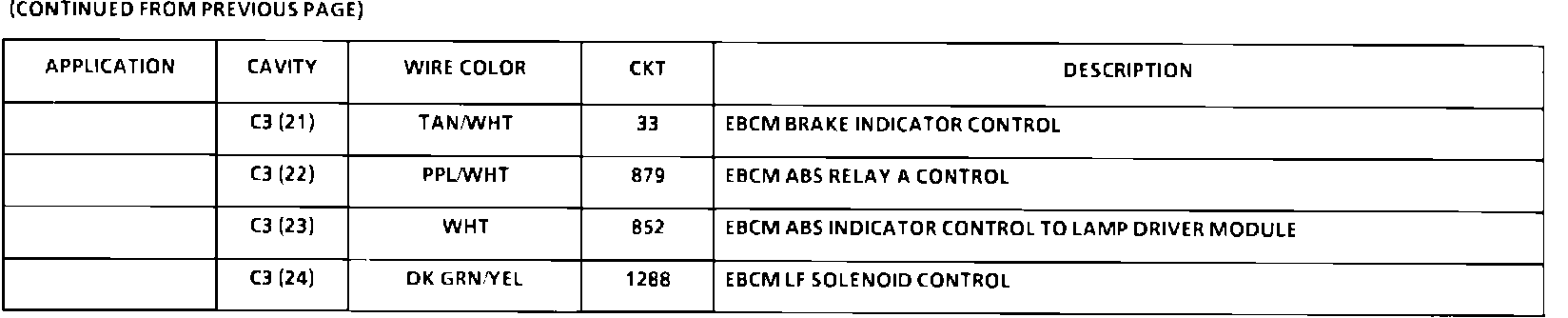

Electronic Brake Control Module (EBCM) Connector:

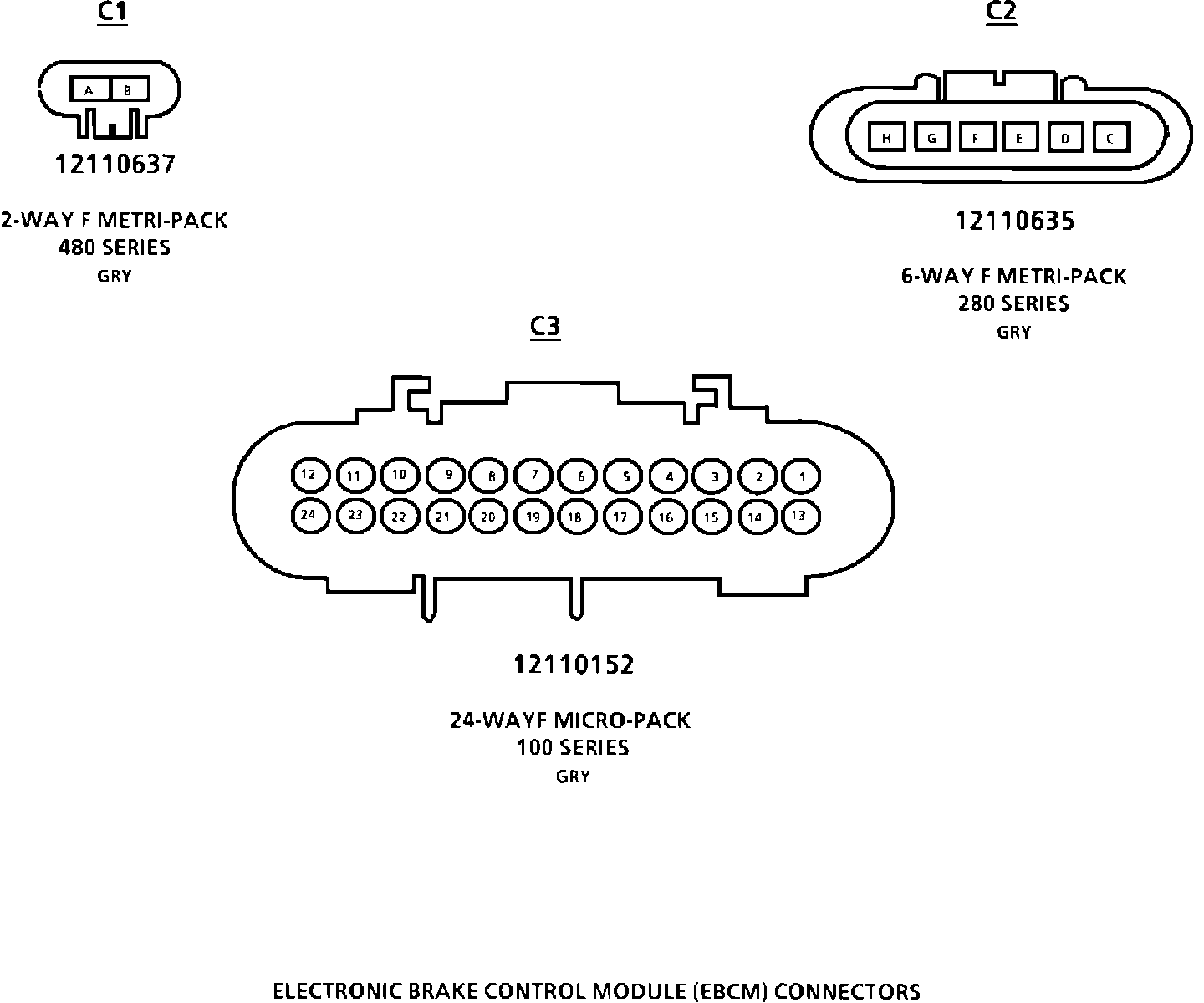

Electronic Brake Control Module (EBCM) Connector:
