Home >> Buick >> 1992 >> Regal V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Control Module (ECM) >> Part 1 of 4

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Part 1 of 4

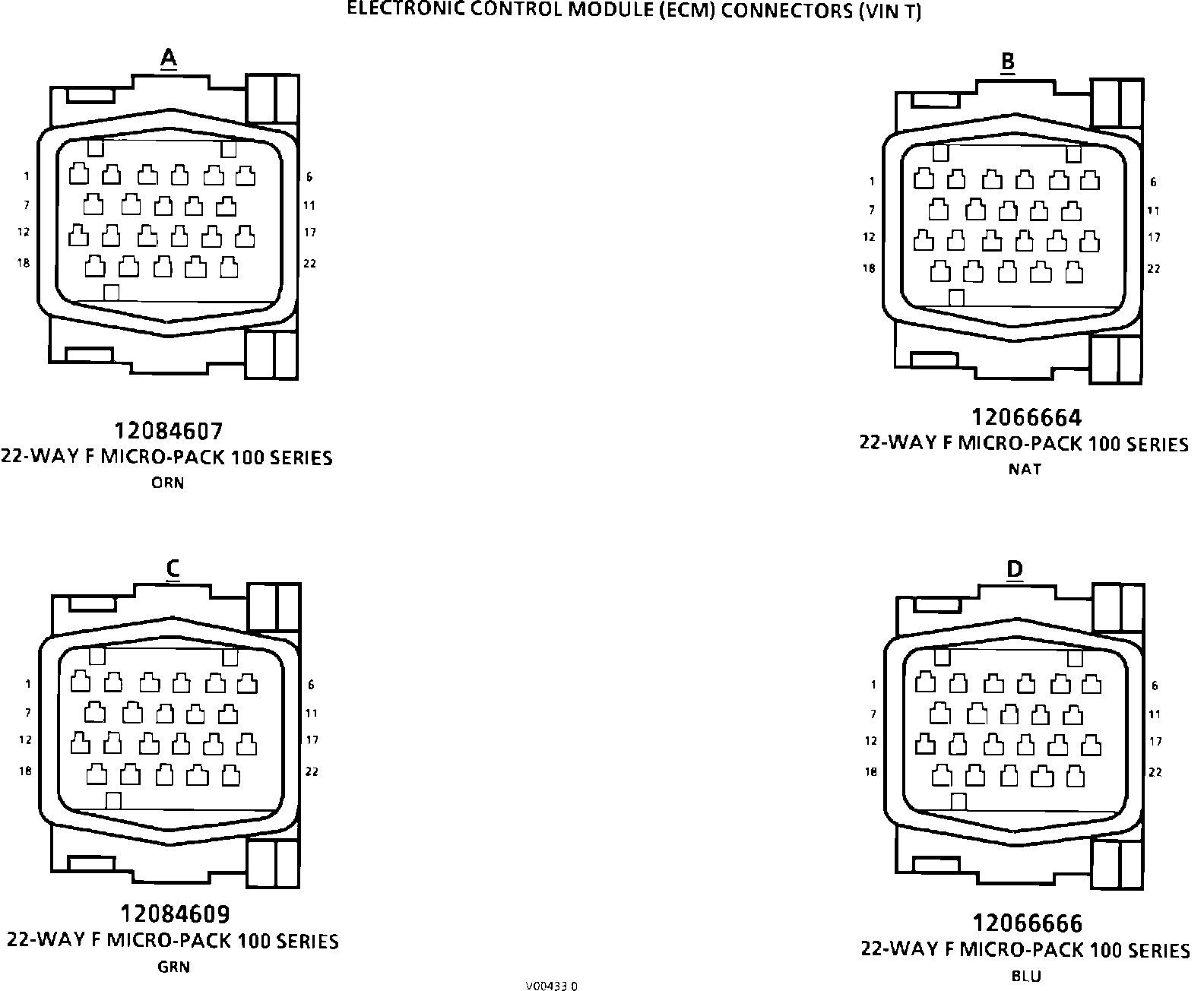

Electronic Control Module (ECM) Connector:
