Keyless Entry Module

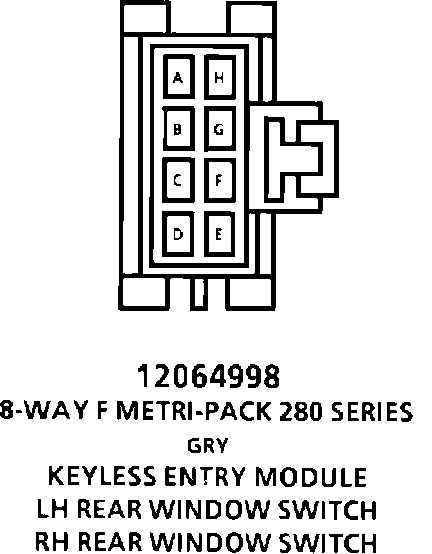

Keyless Entry Module/LH And RH Rear Window Switch:

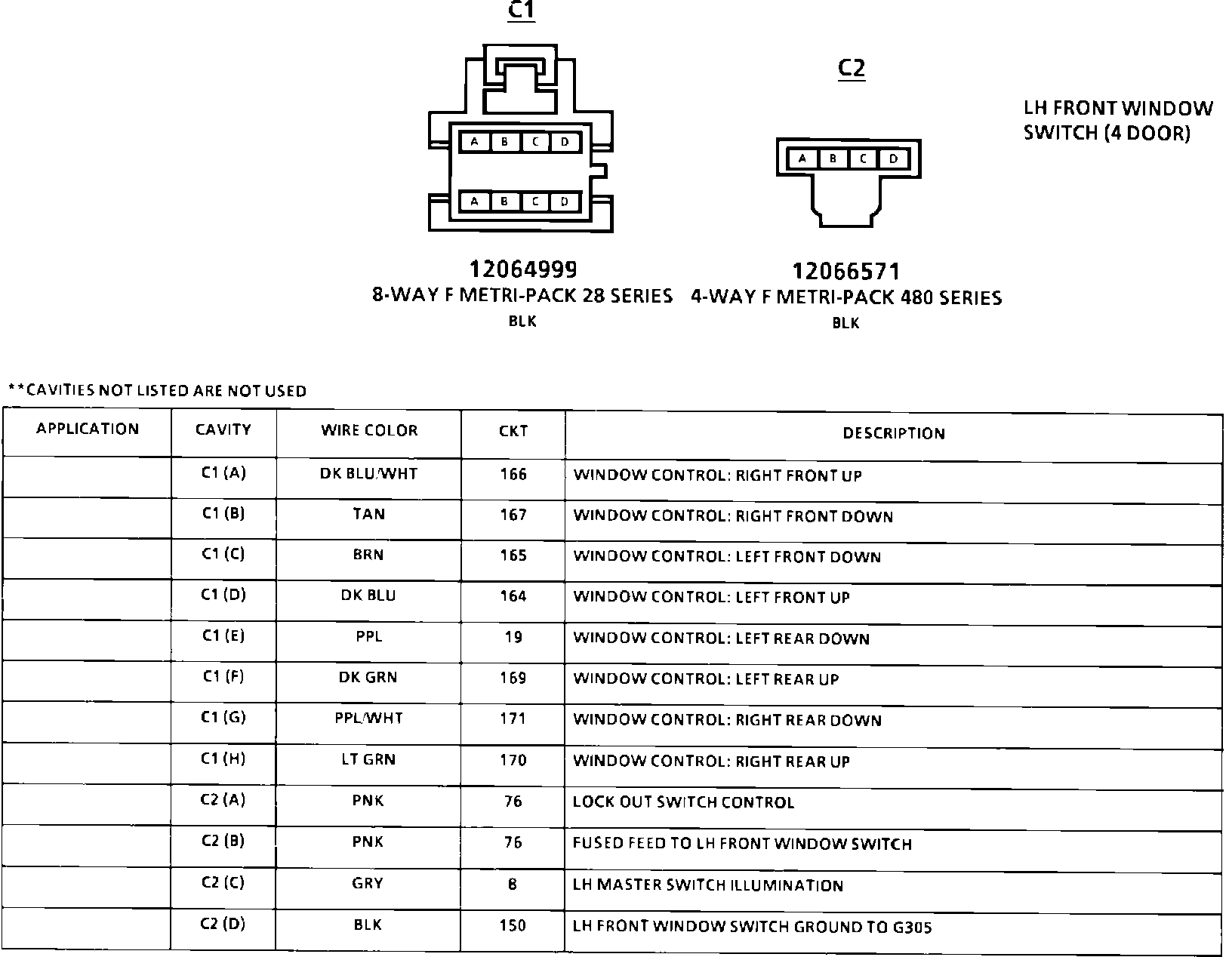

LH Front Window Switch (4 Door) Connector Face:

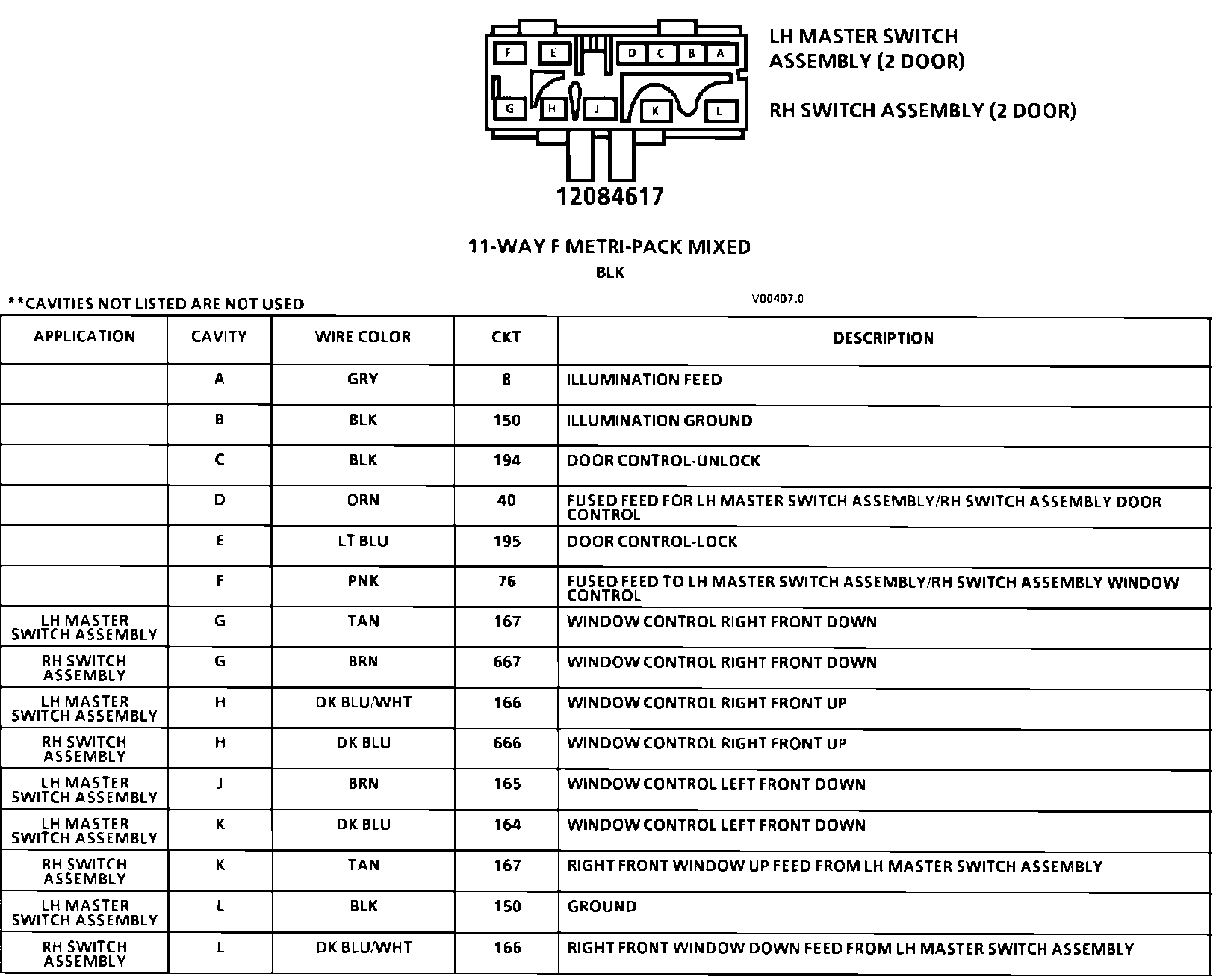

LH And RH Switch Assembly (2 Door) Connector Face:
