Wiring Diagrams

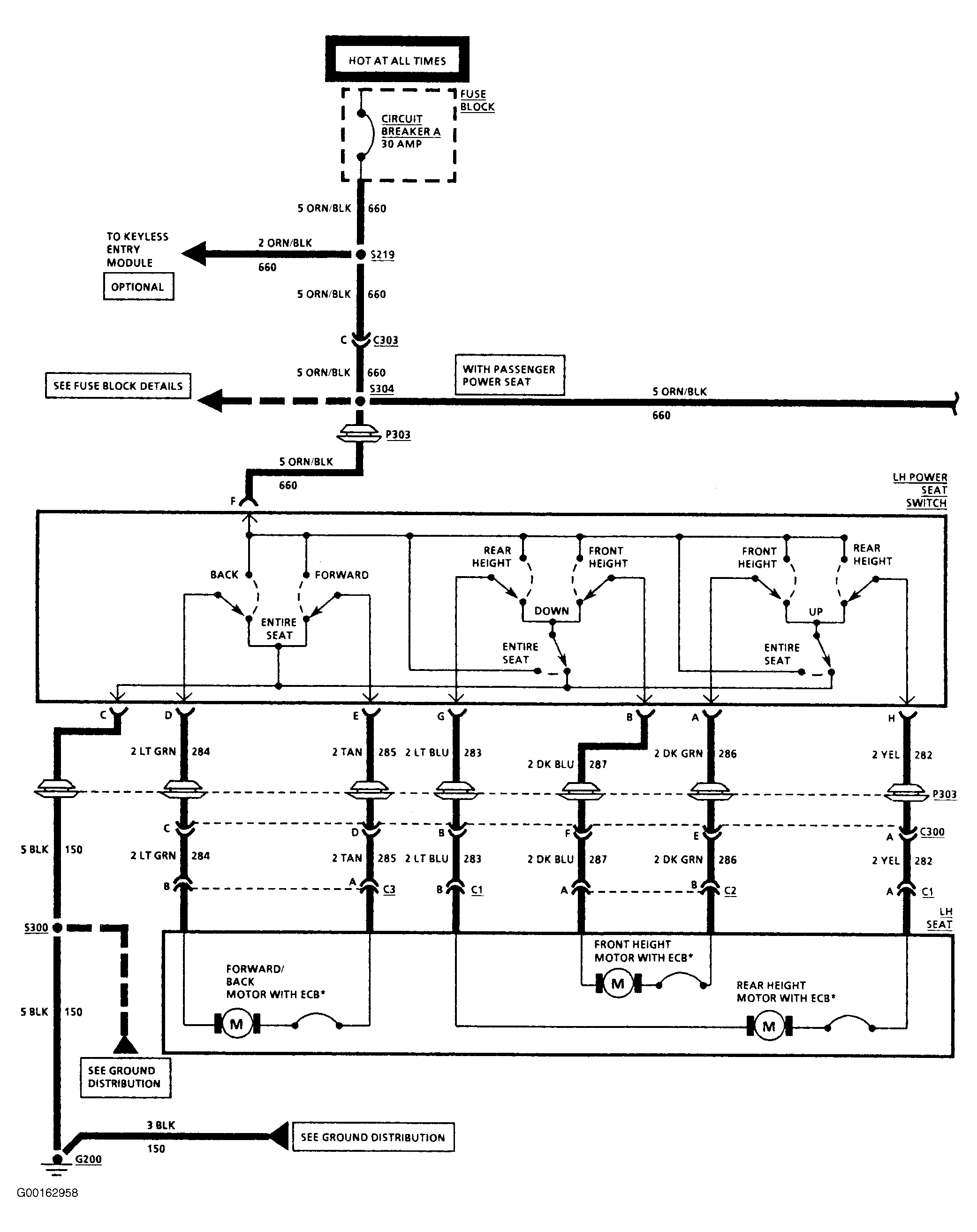

Fig 1: Power Seats Wiring Diagram (1 Of 2)
G00162958Courtesy of GENERAL MOTORS CORP.

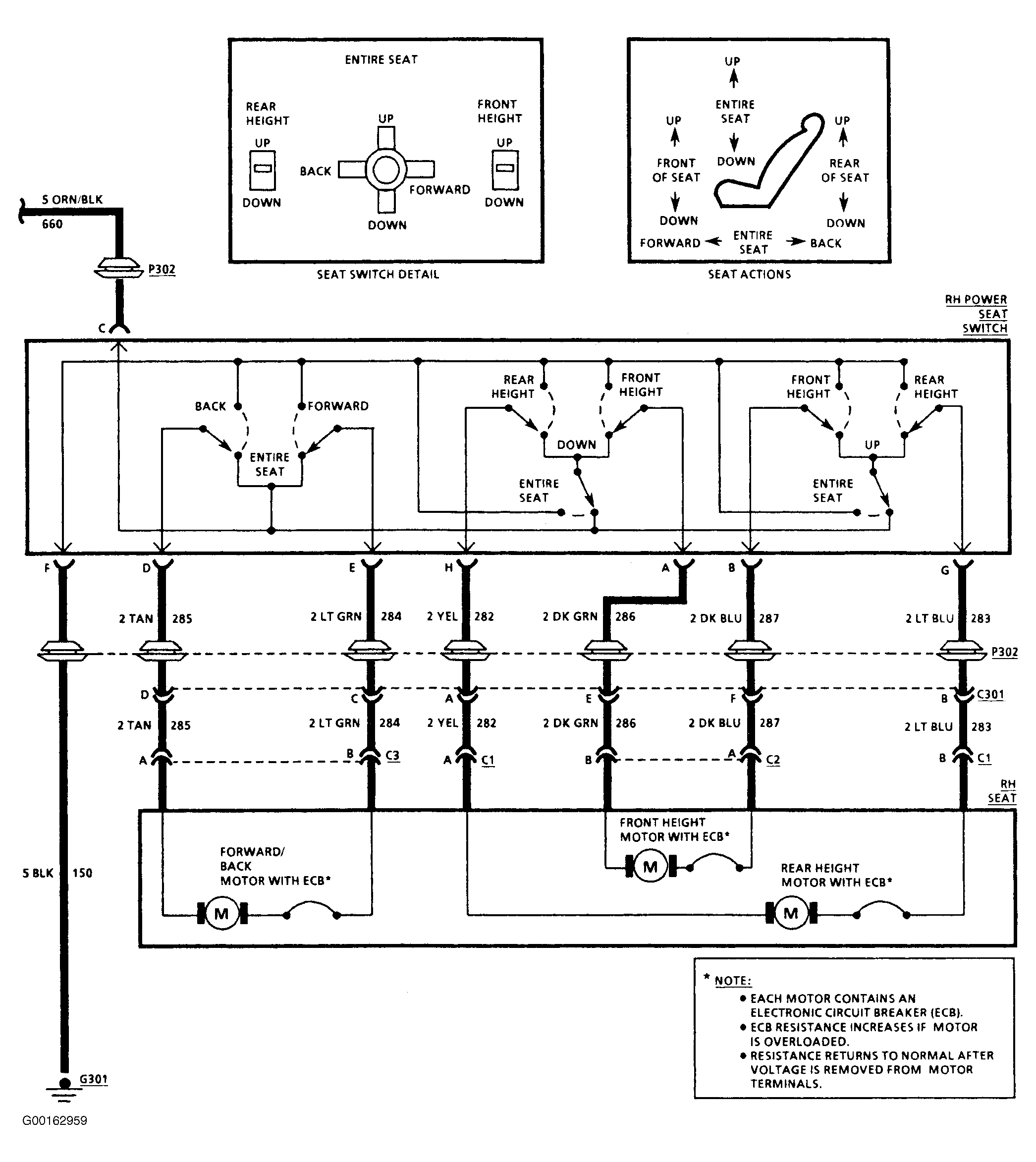

Fig 2: Power Seats Wiring Diagram (2 Of 2)
G00162959Courtesy of GENERAL MOTORS CORP.
