Hydraulic Modulator: Removal

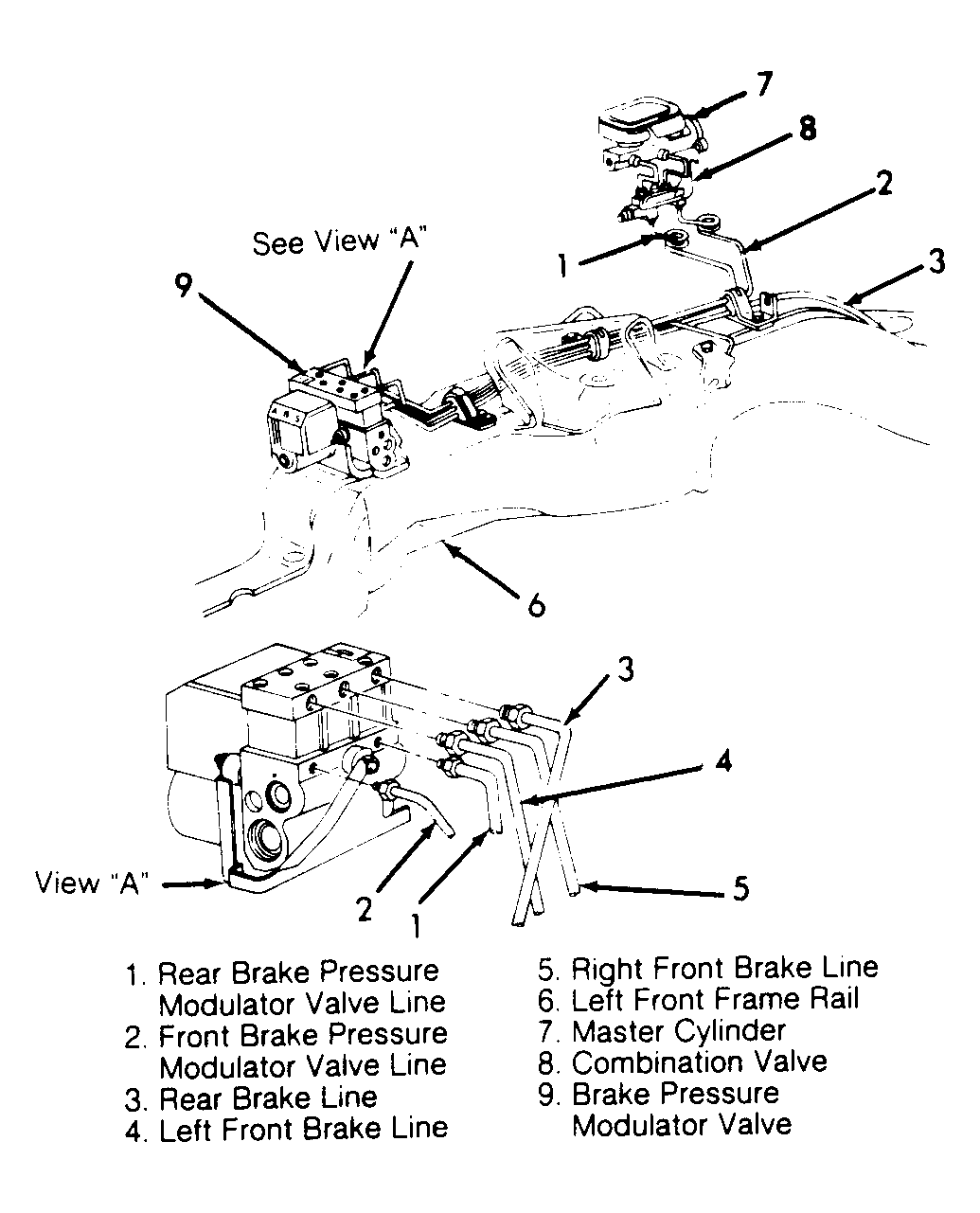

- Disconnect negative battery cable. Remove air intake duct. Disconnect canister purge line at canister and position aside. Remove cover from hydraulic modulator. See Fig 1.
- Unlock tab and remove wiring harness connector from hydraulic modulator. Remove ground wire from hydraulic modulator. Note location of hydraulic modulator brake lines; remove lines. Remove nuts and hydraulic modulator from bracket.
