Steering System - Variable: Wiring Diagram

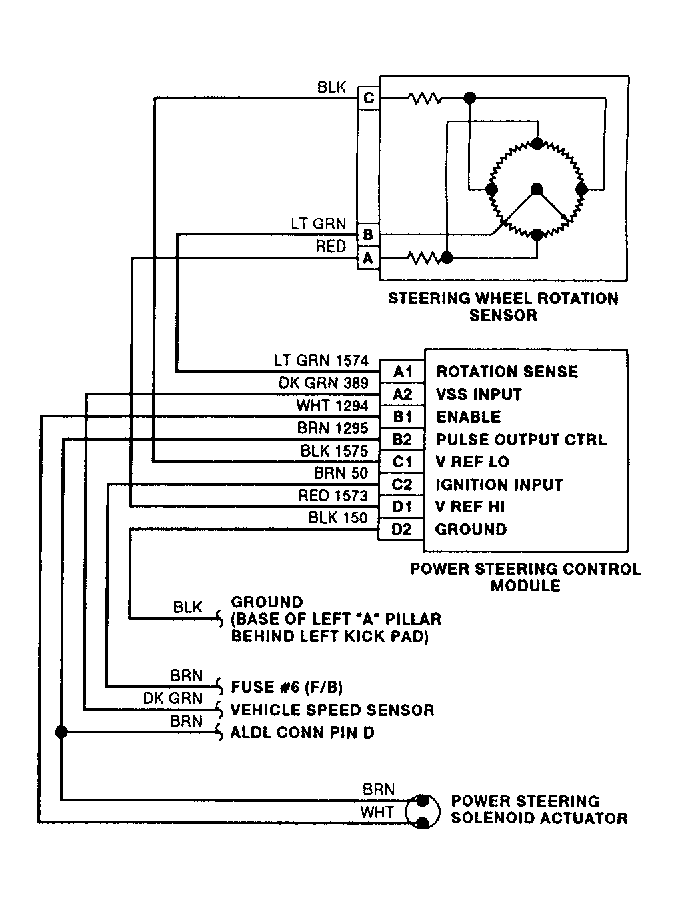

Fig 1: Variable Effort Steering (VES) System Wiring Diagram

G92I05290
