Knock Sensor: Locations

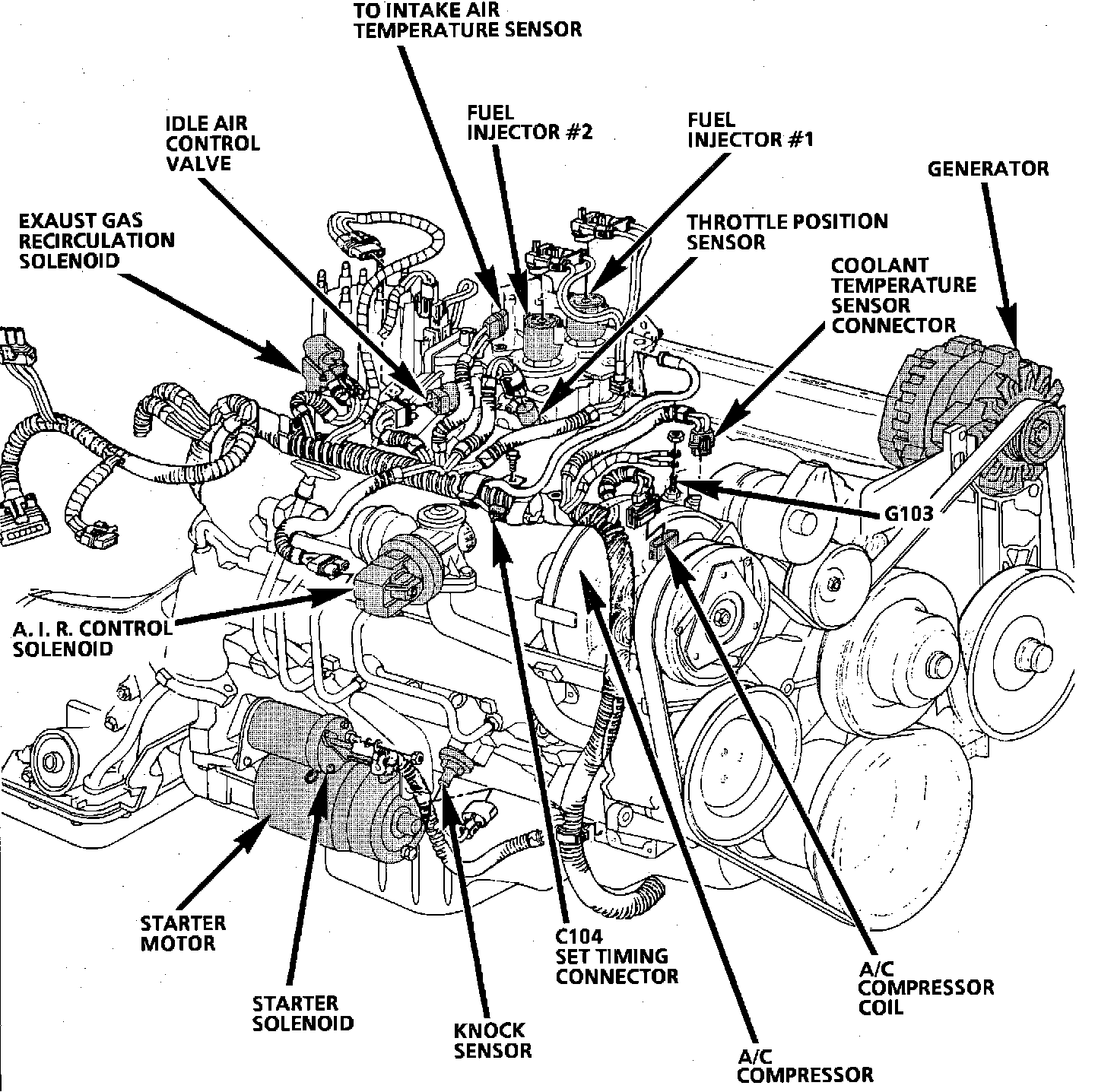

Component Location View. Engine:

RH side of Engine Block, forward of Starter
