Left Front Door Isolation Relay Test

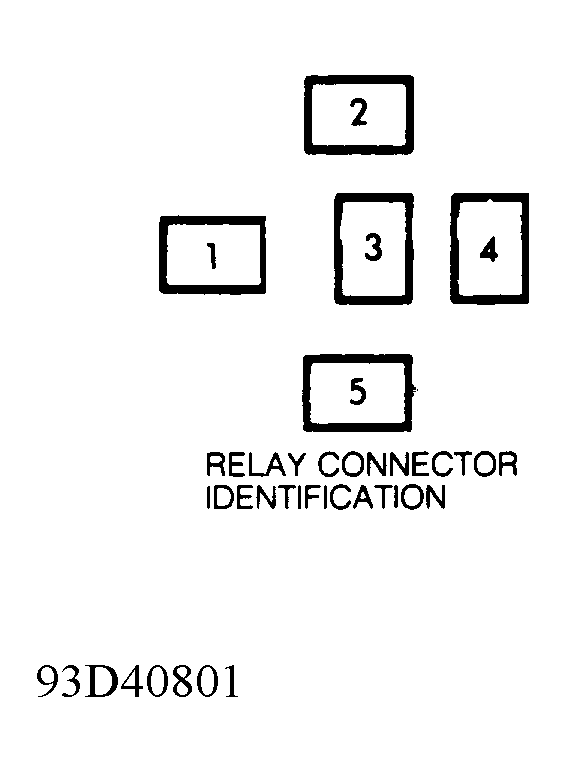

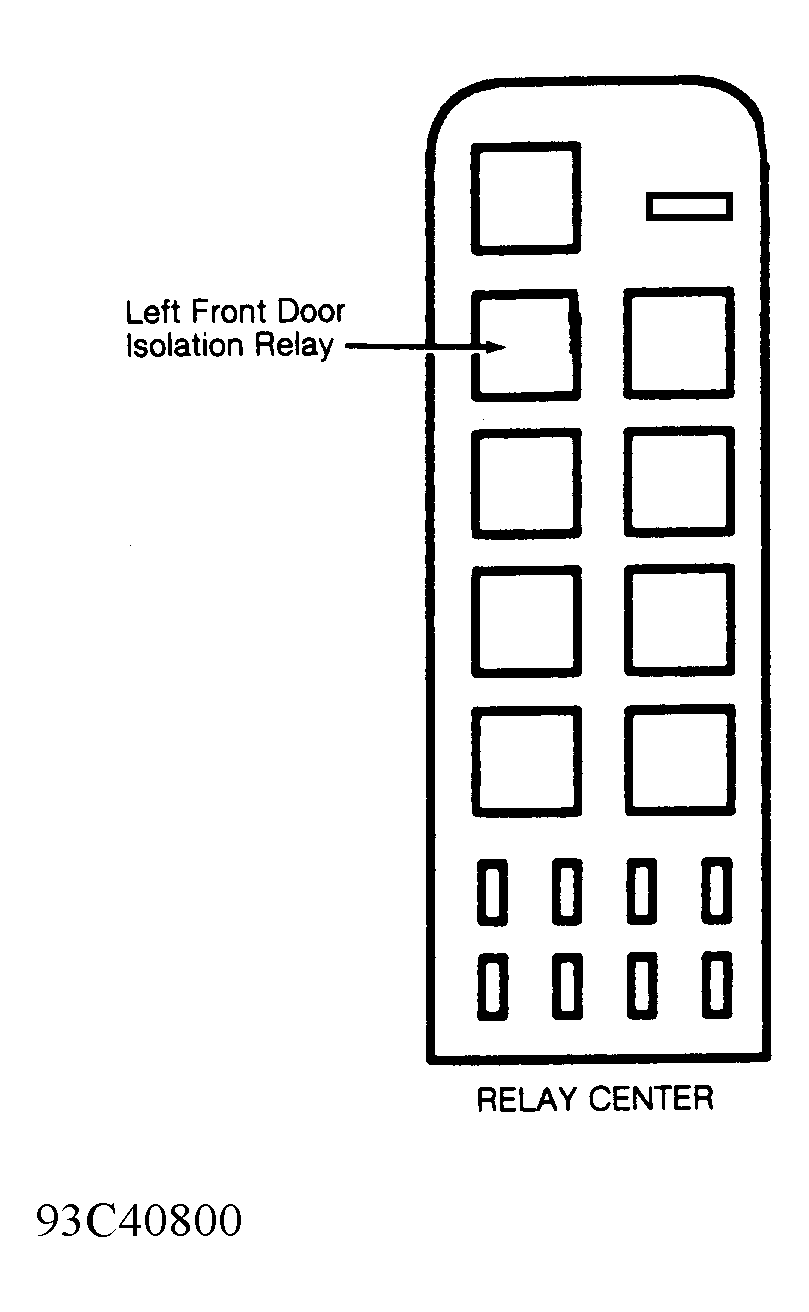

- Remove left front door isolation relay. See Fig 1 . Use a voltmeter and check for battery voltage between relay terminal No. 5 (Orange wire) and ground. See Fig 2 . If battery voltage is not present, check wiring for an open circuit.
- Use a fused jumper wire and momentarily connect relay terminals No. 1 (Tan wire) and 5 (Orange wire). All doors except left front door should unlock. If not, check Tan wire for an open circuit.
- Connect a test light between relay terminals No. 2 (Tan wire) and 5 (Orange wire). Test light should flash once when transmitter UNLOCK button is pressed, If not, check wiring for an open or short circuit to ground, and RAC module 9-pin connector terminal "G" (Black wire) for good terminal contact.
- If wiring and connection are okay, replace RAC module. If all checks are okay, replace left front door isolation relay.
REMOTE KEYLESS ENTRY COMPONENT LOCATION
| Component | Location |
|---|---|
| Data Link Connector (DLC) | Under Left Side Of Dashboard, To Left Of Steering Column |
| Door Lock Relay | Under Right Side Of Dashboard |
| Instrument Panel Fuse Block | Under Left Side Of Dashboard |
| Park/Neutral Position Switch | On Top Of Transaxle |
| Remote Accessory Control (RAC) Module | Under Right Side Of Dashboard |
