Flow Chart 10B, Middle Support Inflate Mode Inoperative Deflate Operates Normally (ROADMASTER)

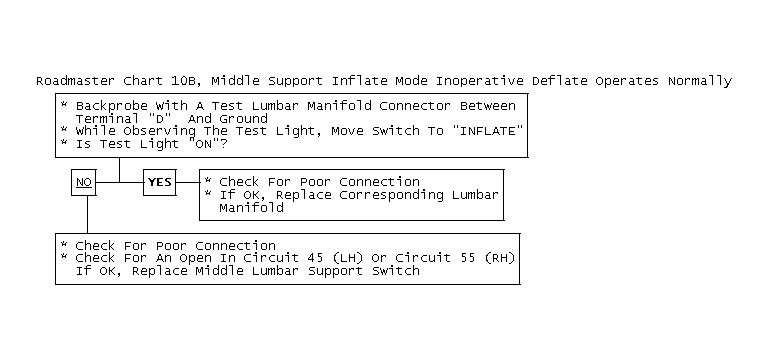

Fig 1: Roadmaster Chart 10B, Middle Support Inflate Mode Inoperative Deflate Operates Normally
GB0022280
