Flow Chart 12B, Lower Support Inflate Mode Inoperative Deflate Operates Normally (ROADMASTER)

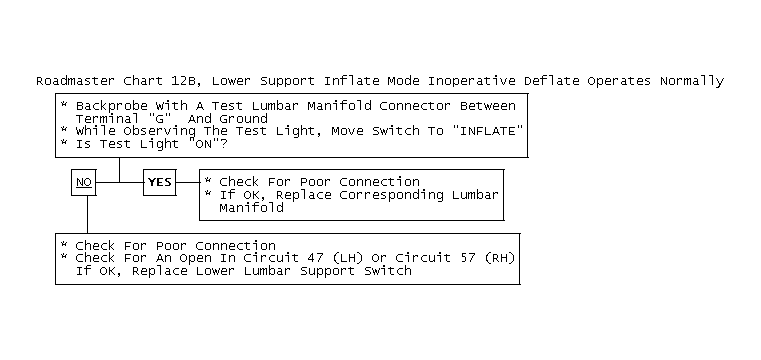

Fig 1: Roadmaster Chart 12B, Lower Support Inflate Mode Inoperative Deflate Operates Normally
GB0022282
