Flow Chart 9B, Middle Support Deflate Mode Inoperative Inflate Operates Normally (ROADMASTER)

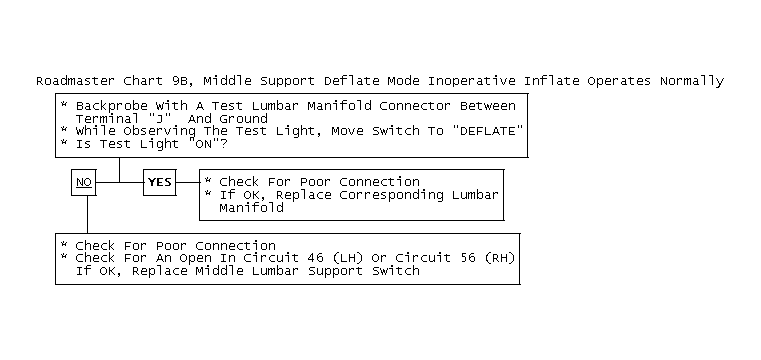

Fig 1: Roadmaster Chart 9B, Middle Support Deflate Mode Inoperative Inflate Operates Normally
GB0022279
