Transmission Reassembly: Notes

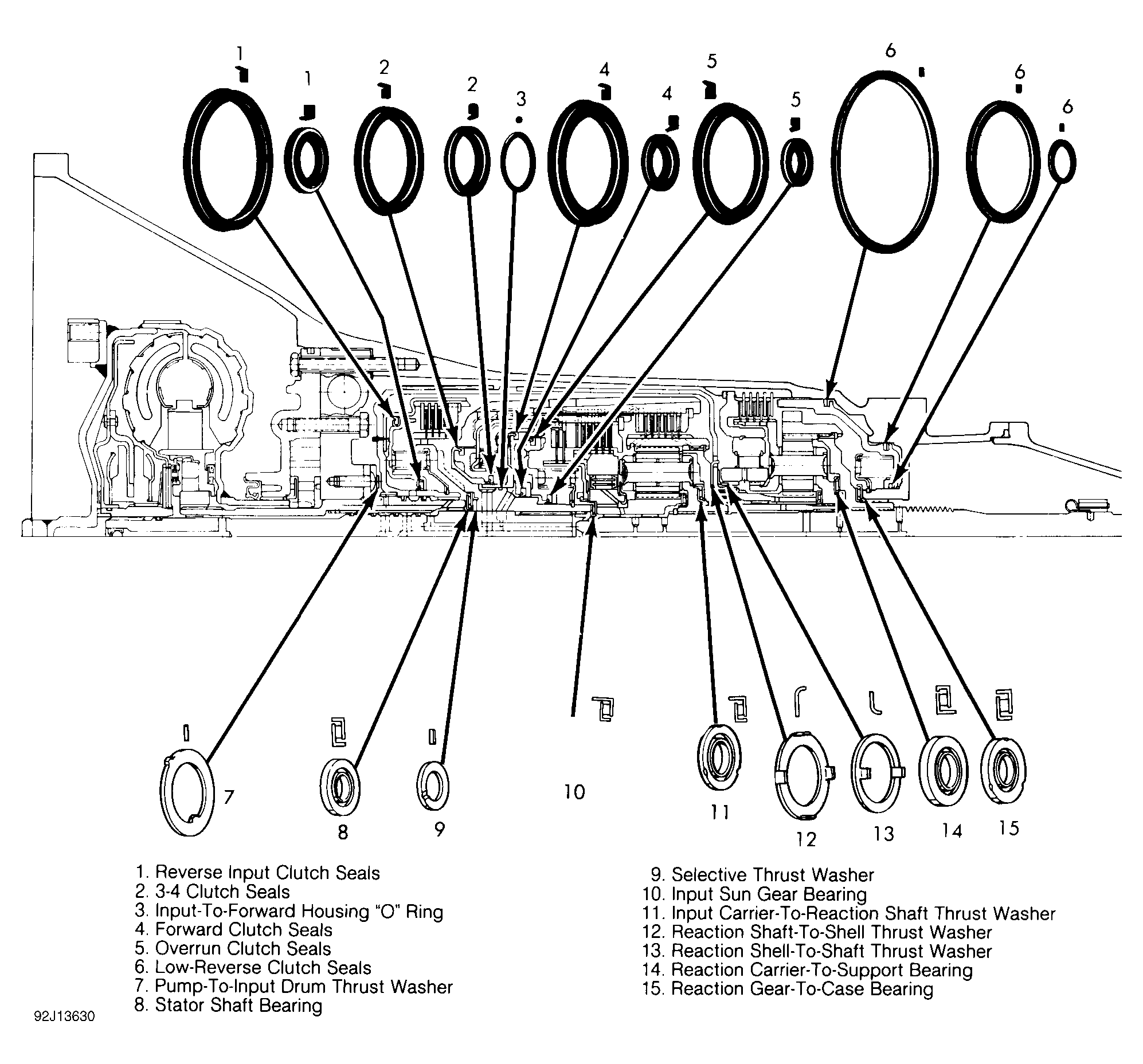

NOTE: To locate seals, bearings and thrust washers, see SEALS, BEARINGS & THRUST WASHERS under TRANSMISSION REASSEMBLY. See Figure.
