Home >> Buick >> 1994 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Wiper Motor Module

April 5, 2026: LEMON Manuals is launched! Read the announcement.

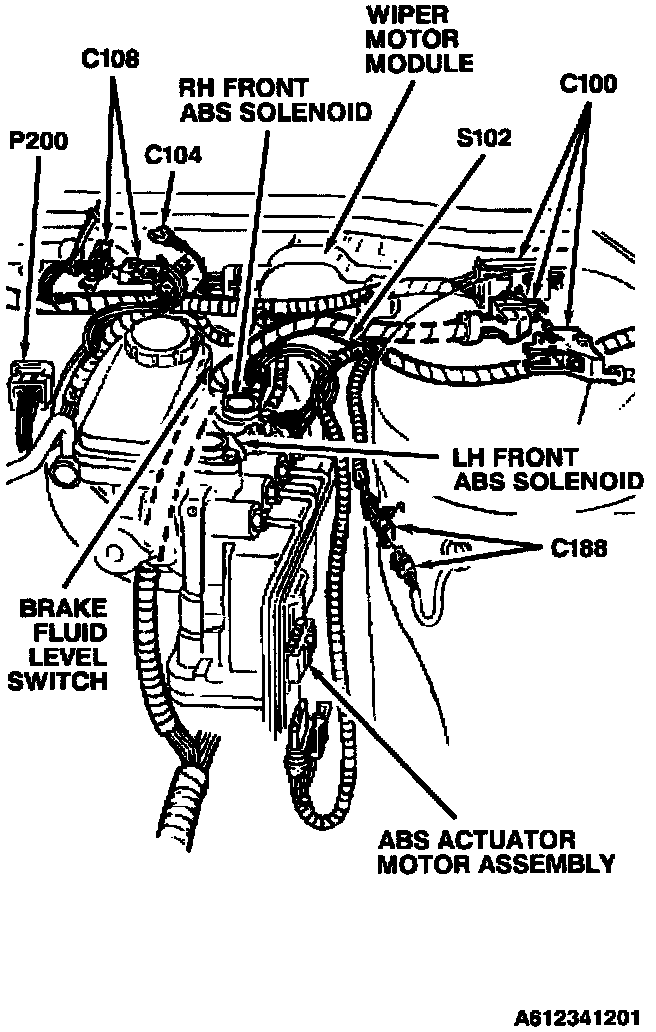

Wiper Motor Module

LH Rear Of Engine Compartment:
