Diagnostic Aids

WARNING: This page is about a different car, the 1994 Cadillac Fleetwood. However, it is still accessible from the selected car via links, so may be relevant.

Check for poor connections at pass-through connector. A faulty transmission range pressure switch assembly may set Code 80.

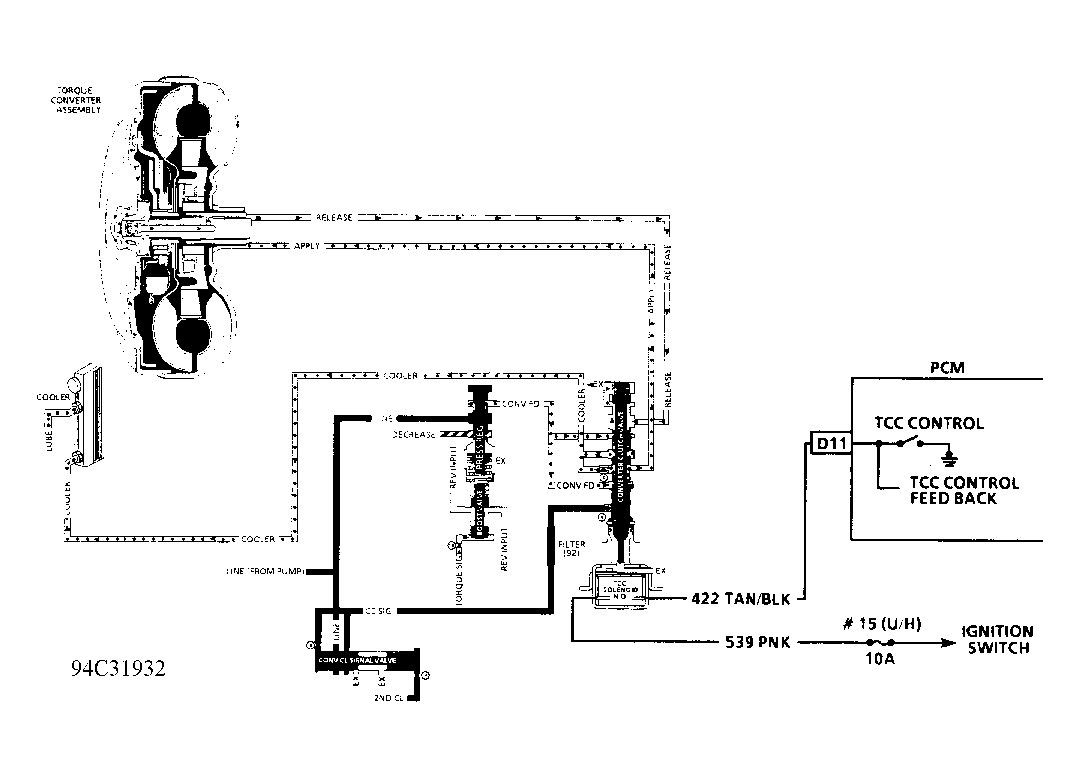

Fig 1: Code 80 Schematic (Fleetwood) Transmission Component Slipping
G94C31932
Fig 2: Code 80 Flow Chart (Fleetwood) Transmission Component Slipping
G94F31935
