Electronic Brake Control Module (EBCM)

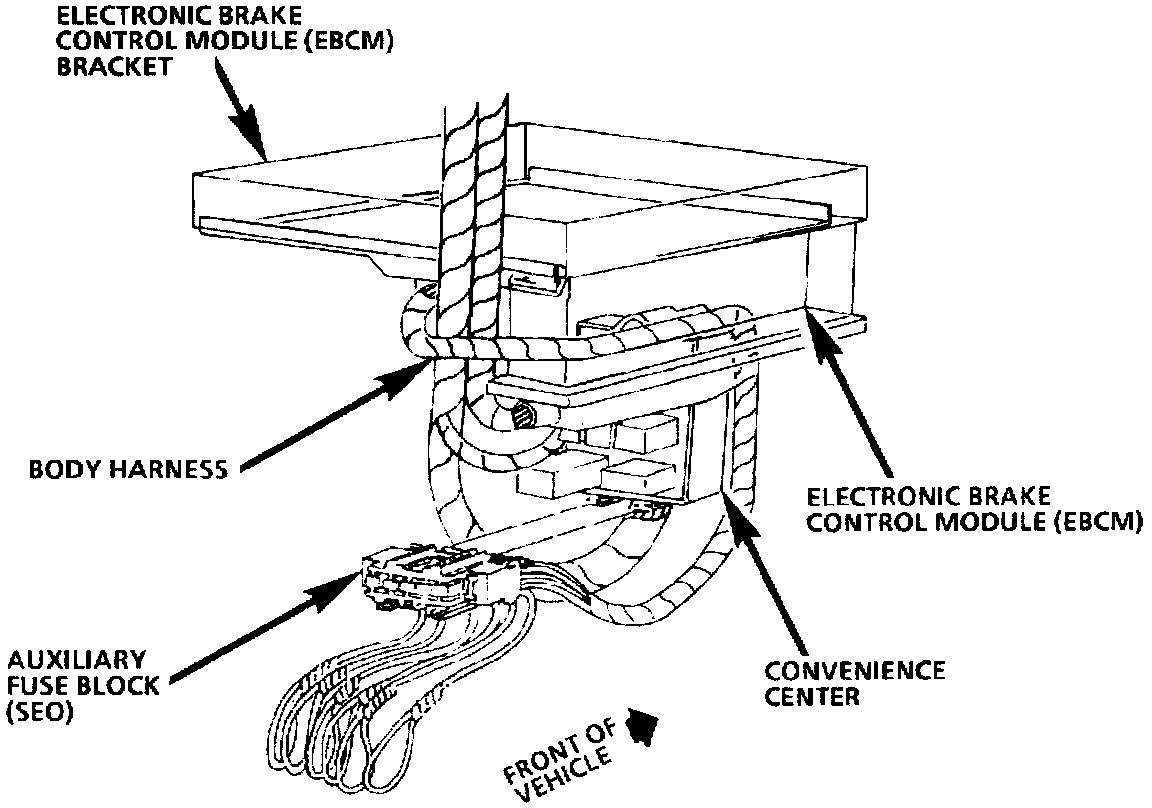

Behind LH I/P, LH Of Brake Pedal Bracket:

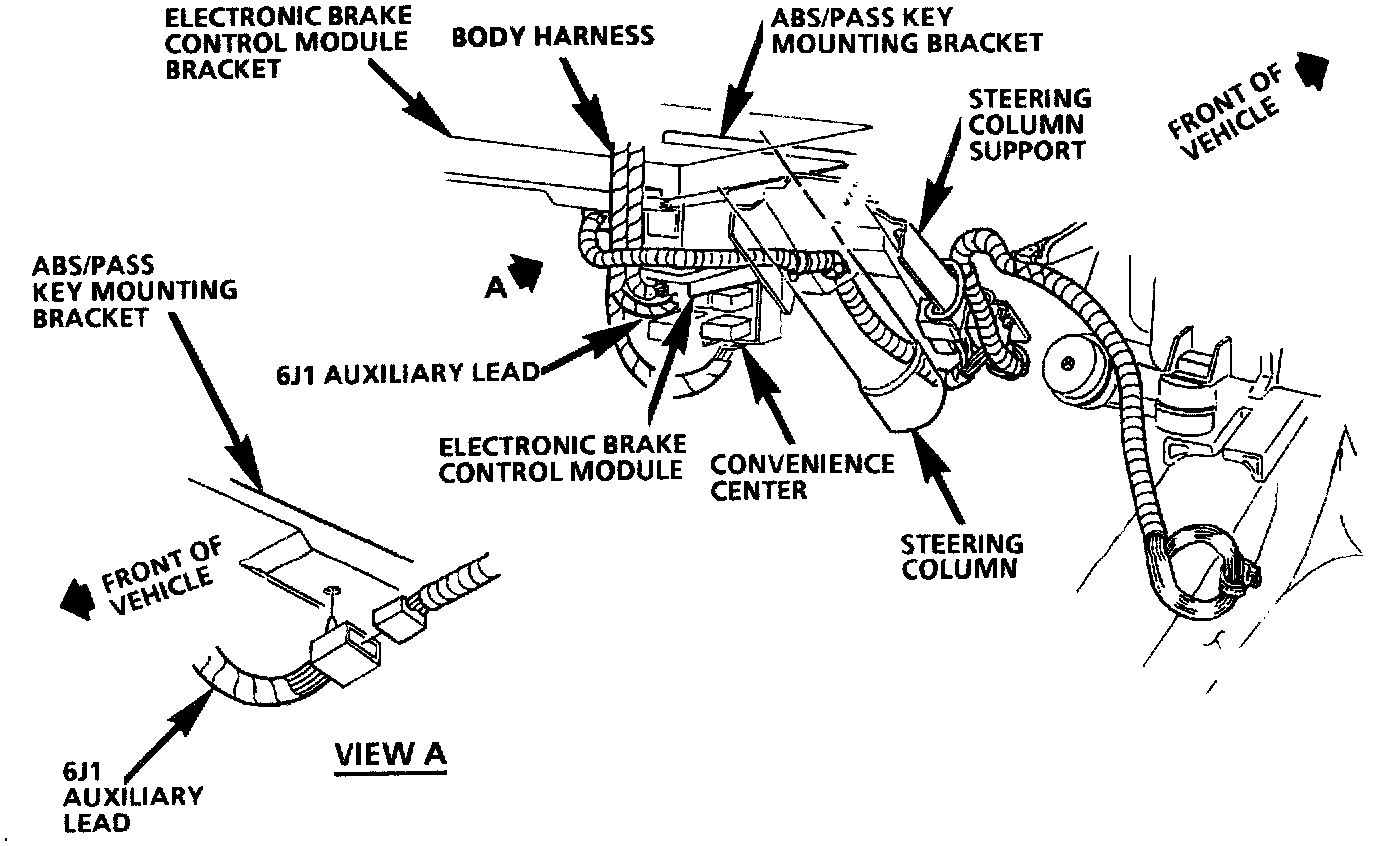

Under I/P:

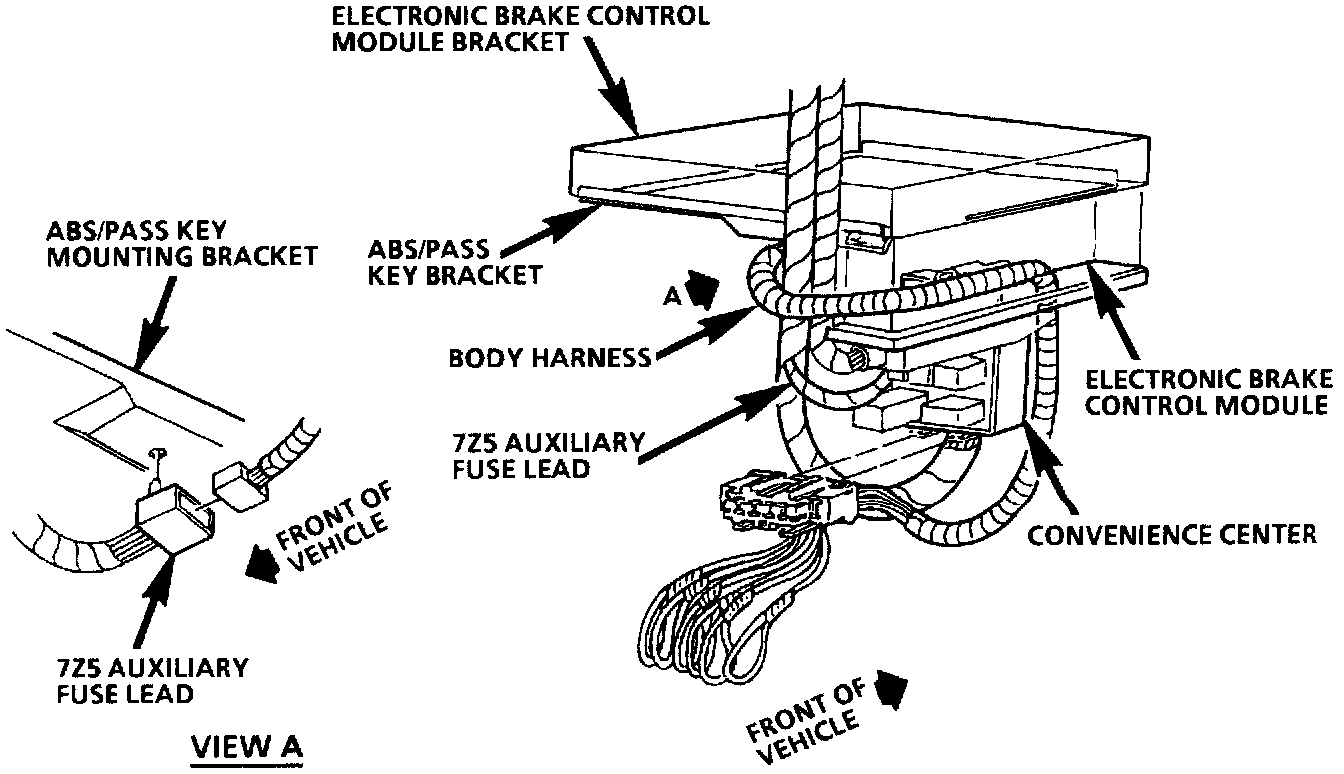

Under I/P:
