Air Bag Control Module

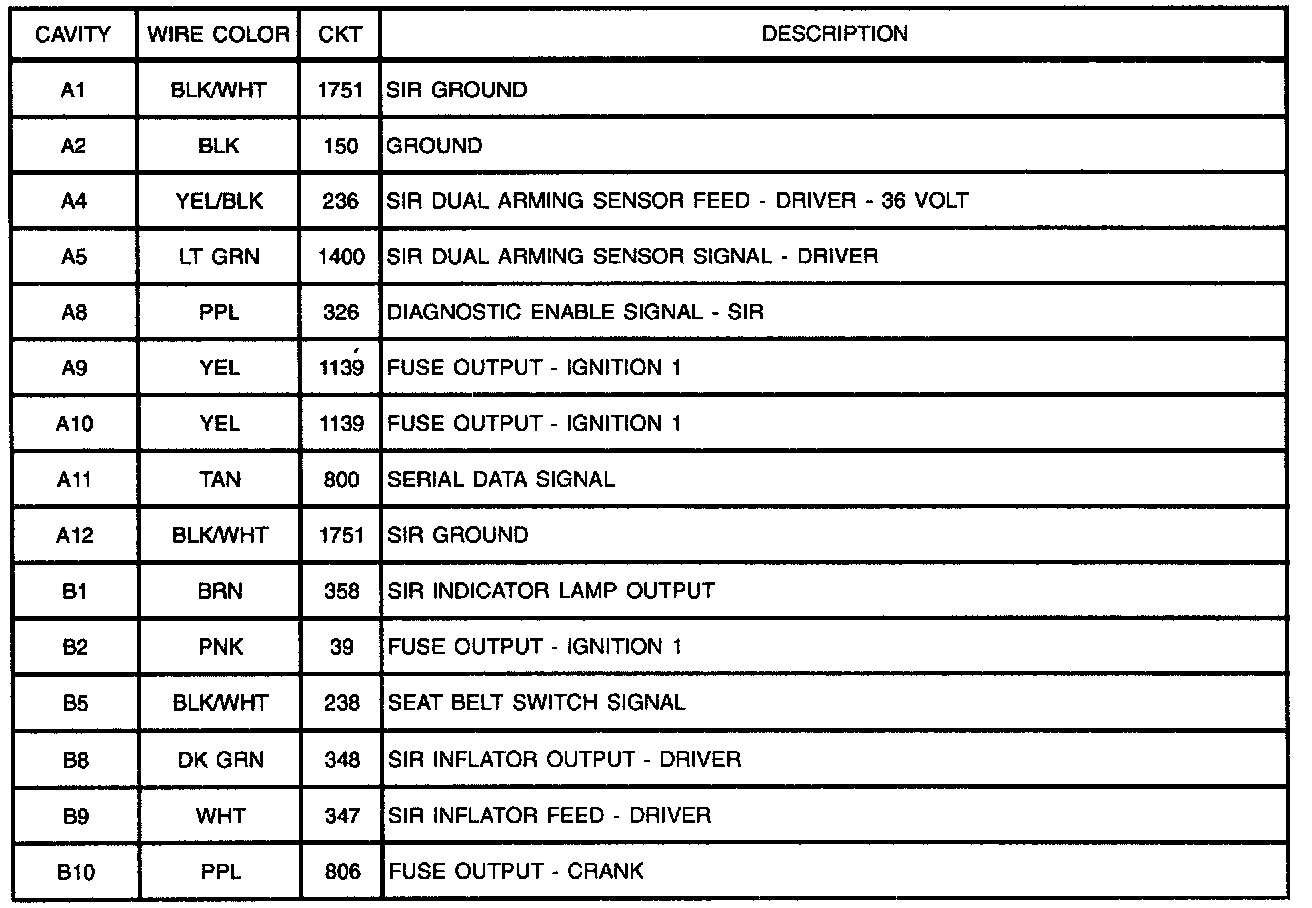

24-Way F Micro-Pack 100 Series YEL (Diagnostic Energy Reserve Module) DERM:
24-Way F Micro-Pack 100 Series YEL (Diagnostic Energy Reserve Module) DERM:
