C2 (Clear)

PCM Connector End Views:

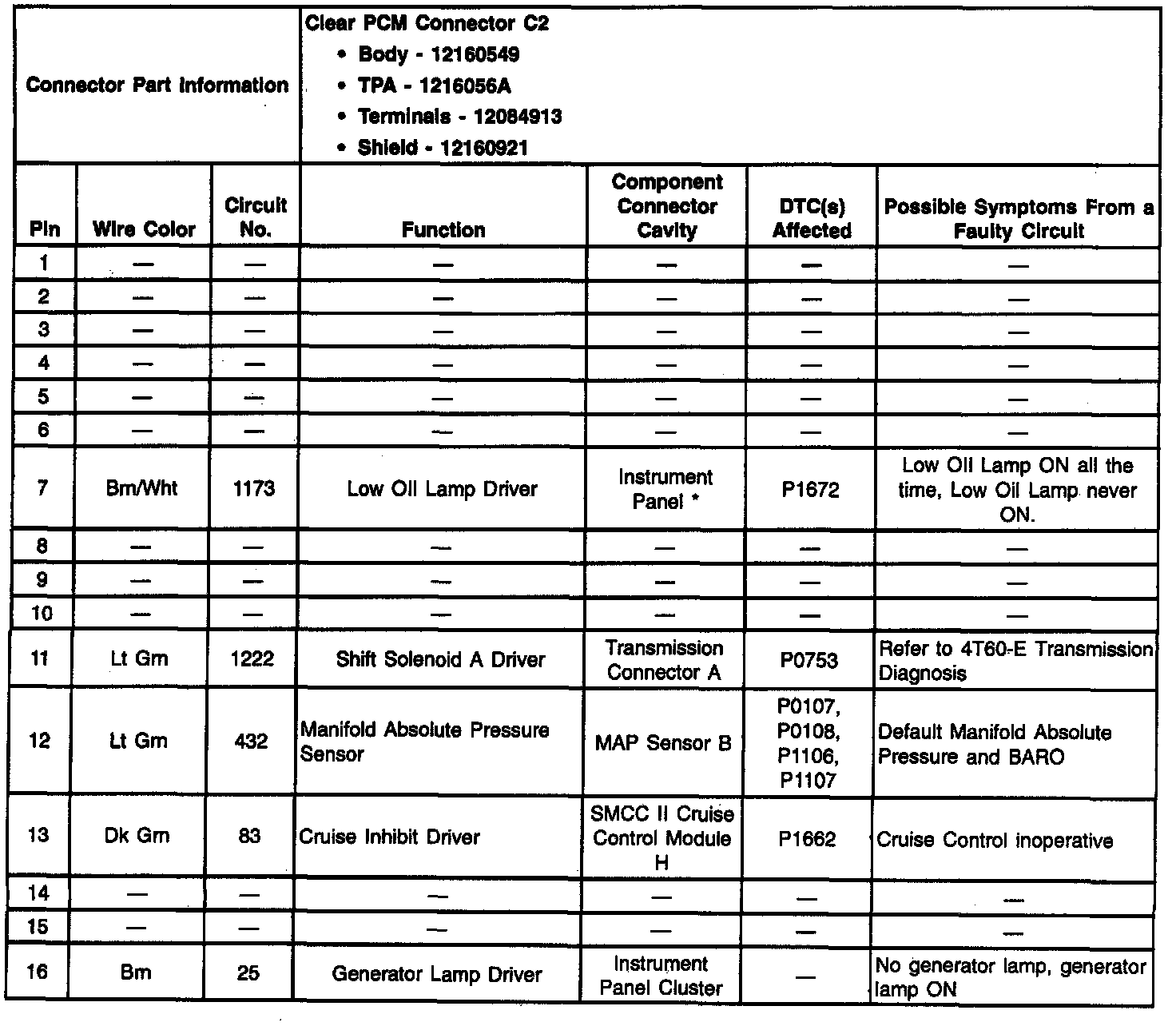

PINS 1-16

Clear PCM Connector C2 (1 Of 4):

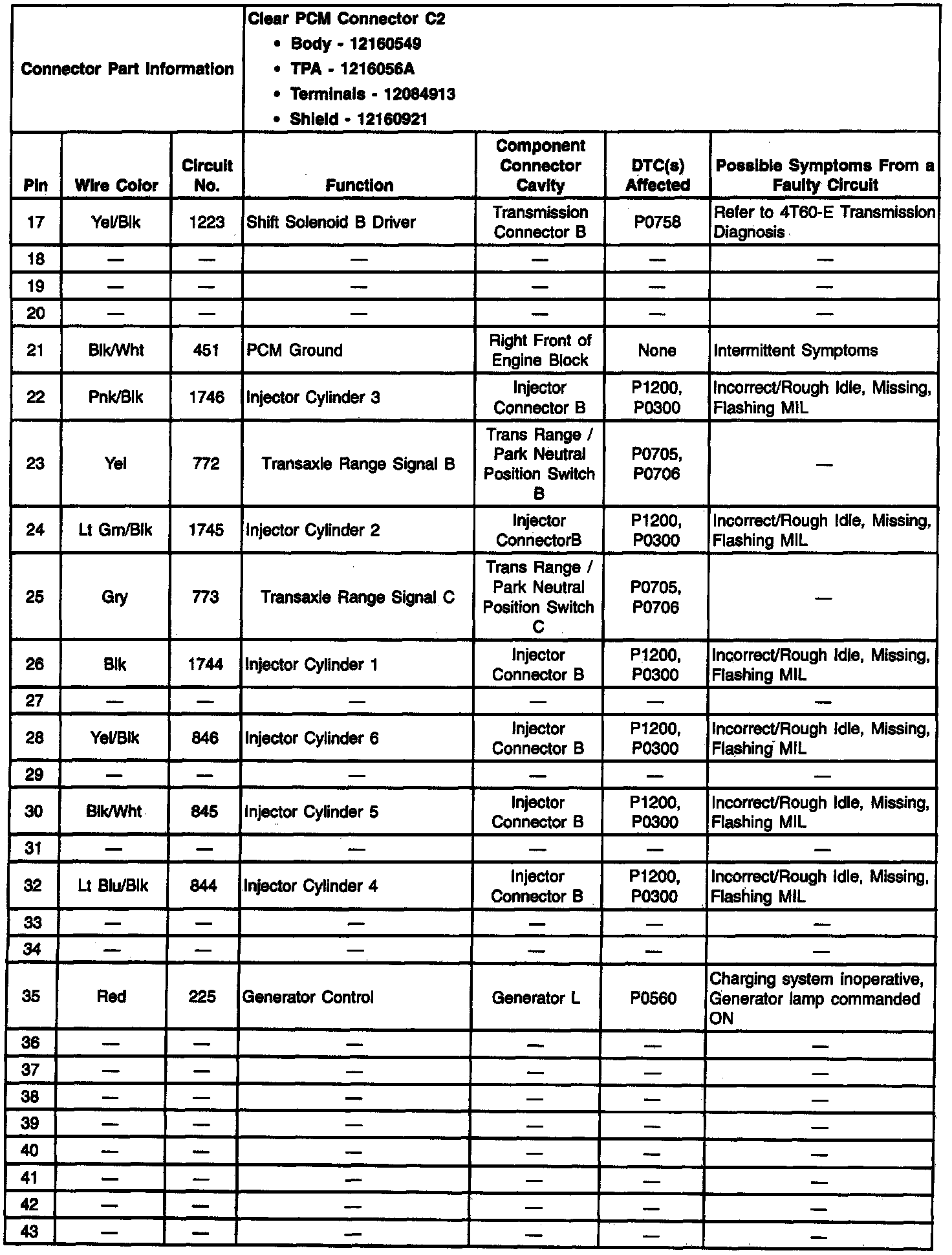

PINS 17-43

Clear PCM Connector C2 (2 Of 4):

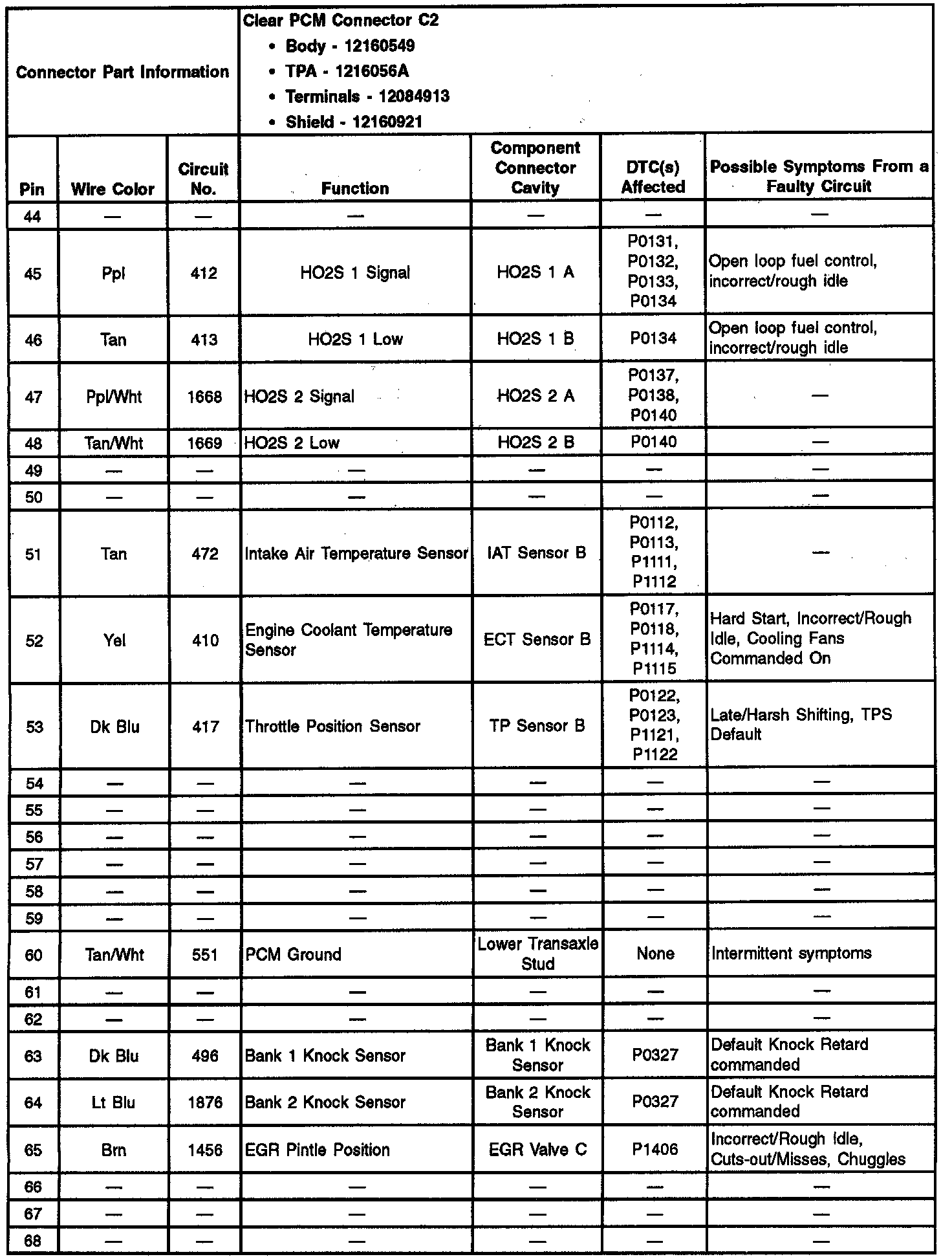

PINS 44-68

Clear PCM Connector C2 (3 Of 4):

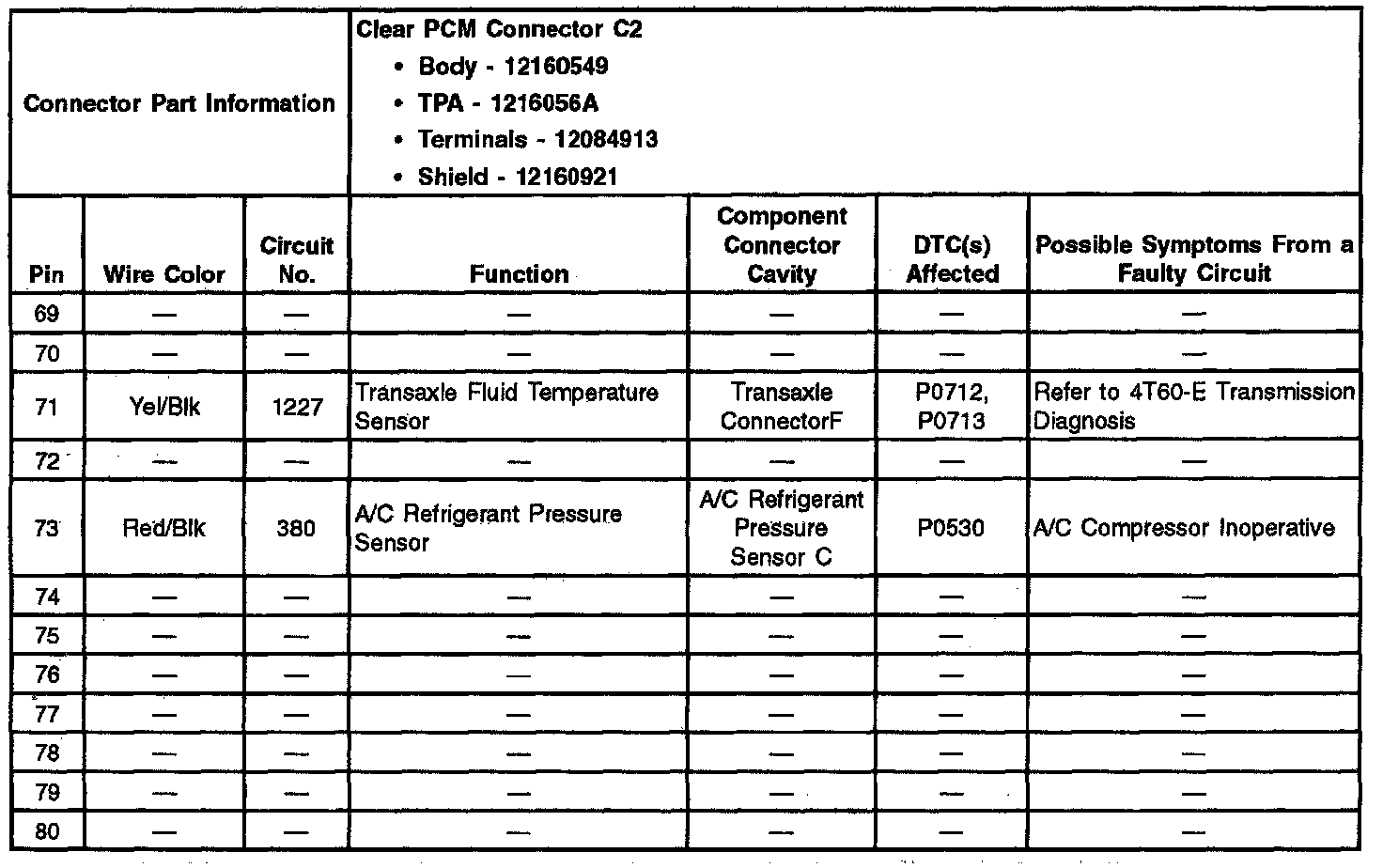

PINS 69-80

Clear PCM Connector C2 (4 Of 4):
