C1 (Blue)

PCM Connector End Views:

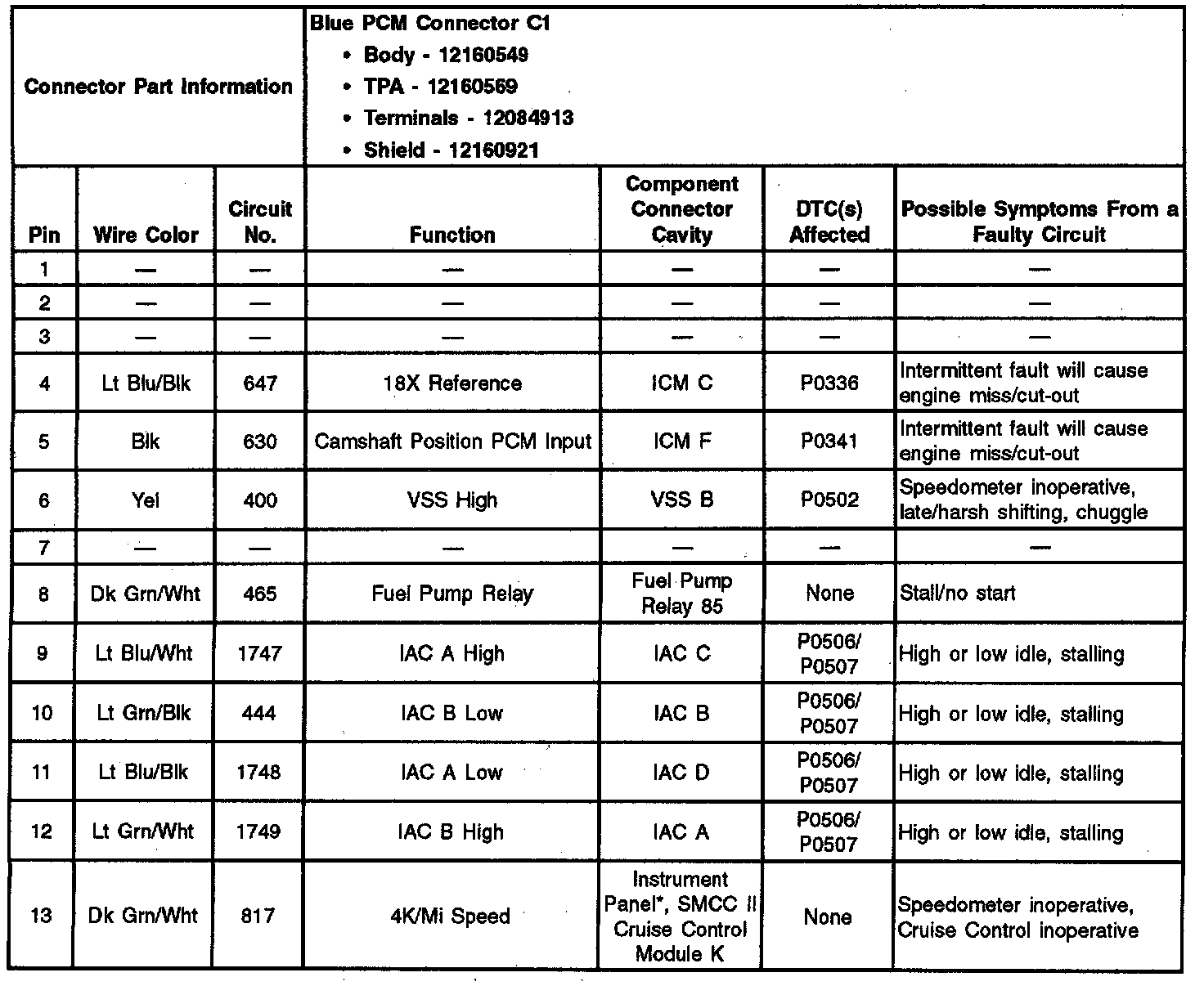

PINS 1-13

Blue PCM Connector C1 (1 Of 4):

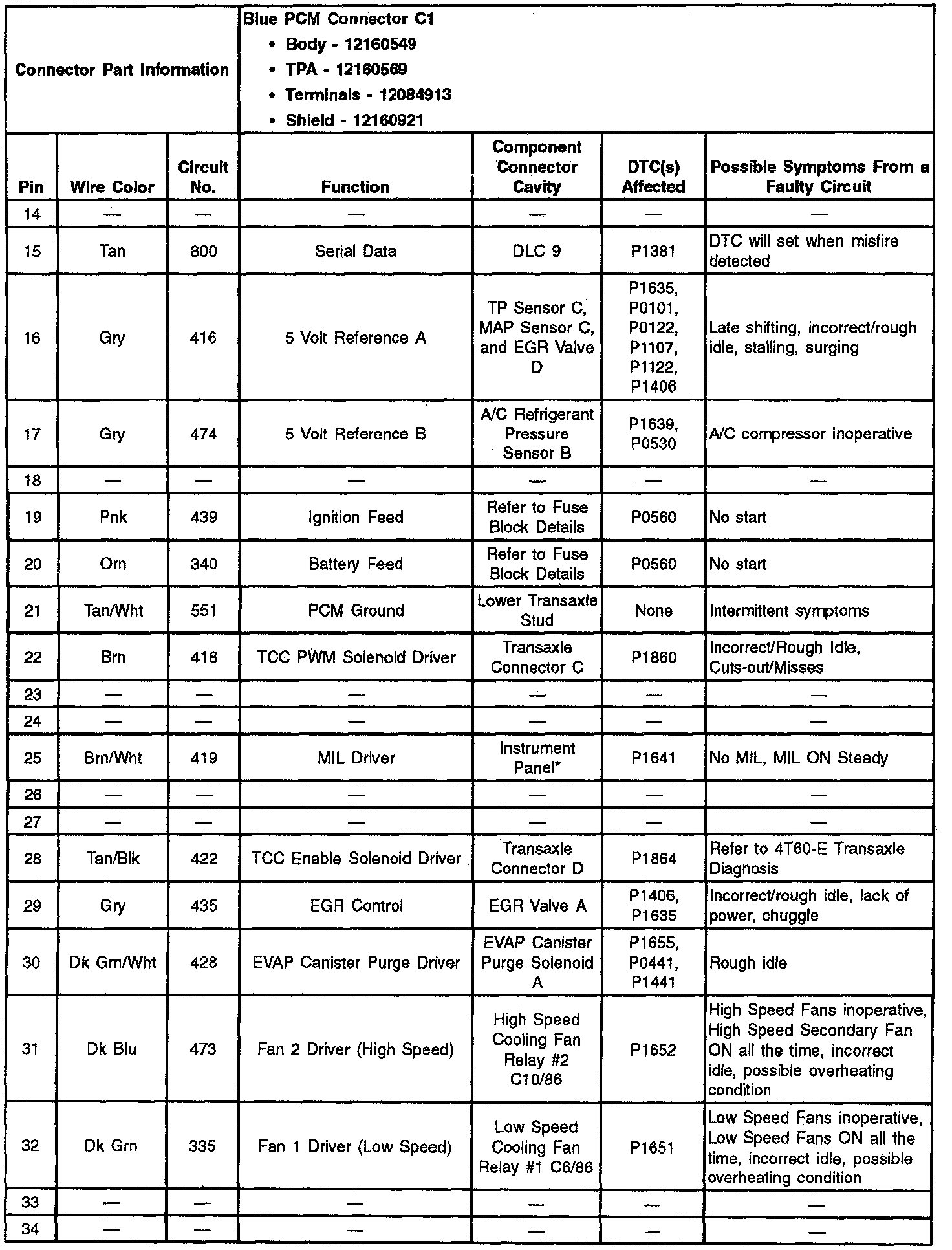

PINS 14-34

Blue PCM Connector C1 (2 Of 4):

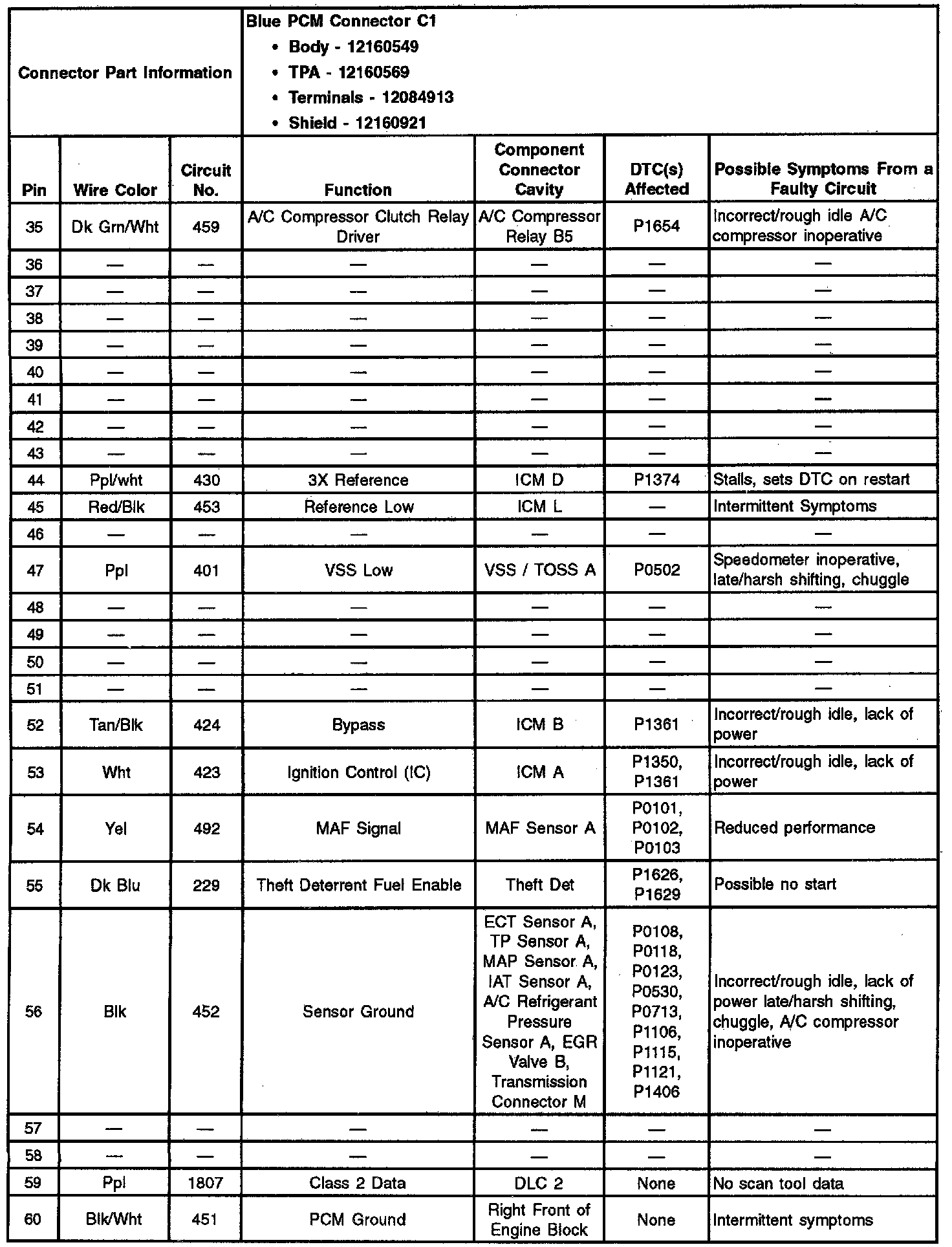

PINS 35-60

Blue PCM Connector C1 (3 Of 4):

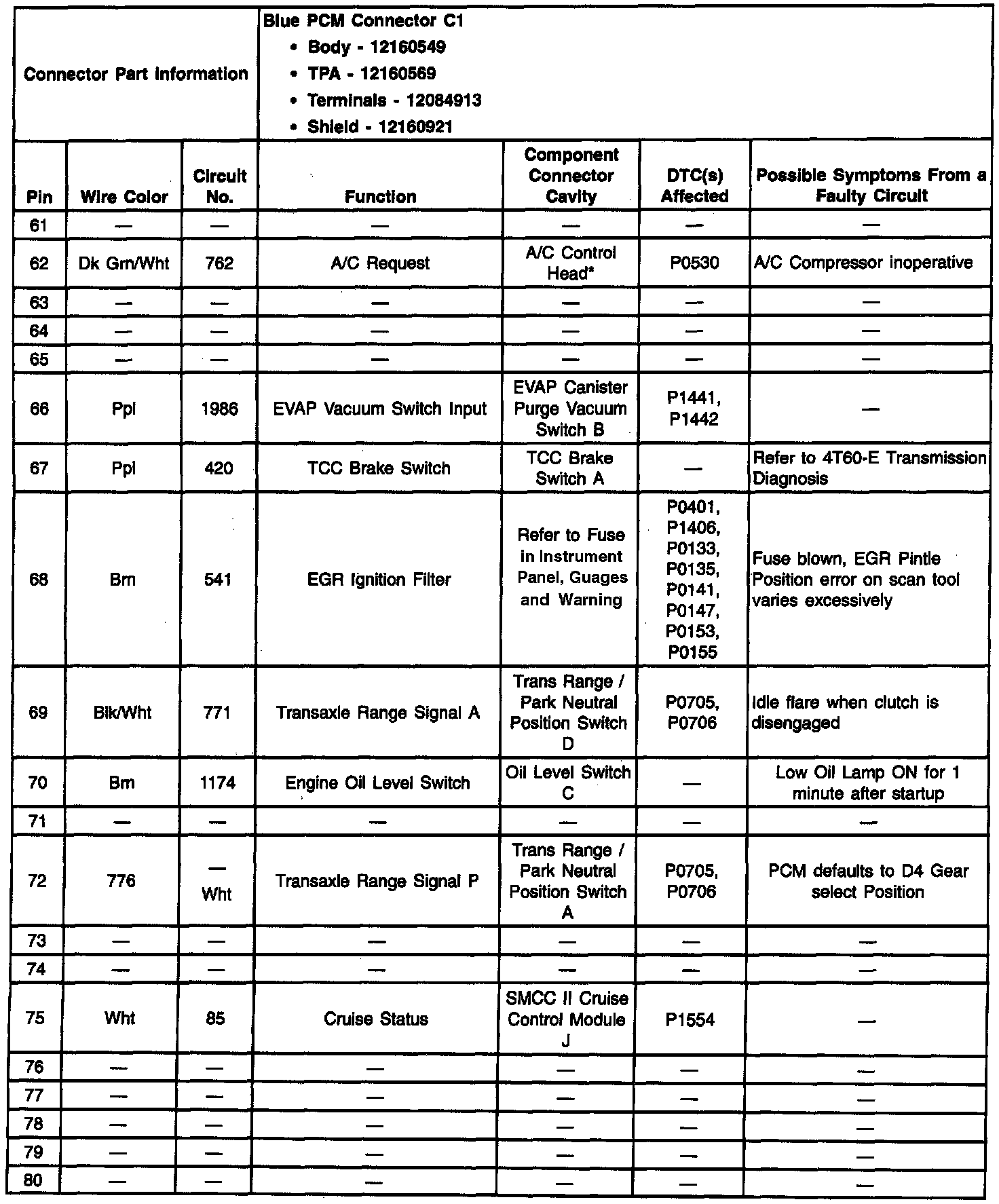

PINS 60-80

Blue PCM Connector C1 (4 Of 4):
