Spring Height Measurement

Measure distance from adapter face and bearing assembly to lower spring retainer. Spring height must equal 1.0" (25.4 mm). See Fig 3.

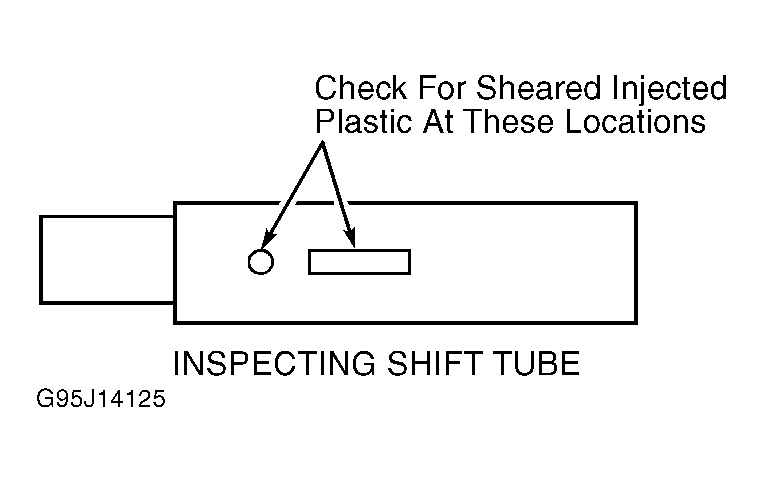

Fig 1: Inspecting Shift Tube

Courtesy of GENERAL MOTORS CORP.

Fig 2: Inspecting Steering Shaft

Courtesy of GENERAL MOTORS CORP.

Fig 3: Measuring Spring Height

Courtesy of GENERAL MOTORS CORP.
