Table 1 Scan Tool Does Not Communicate

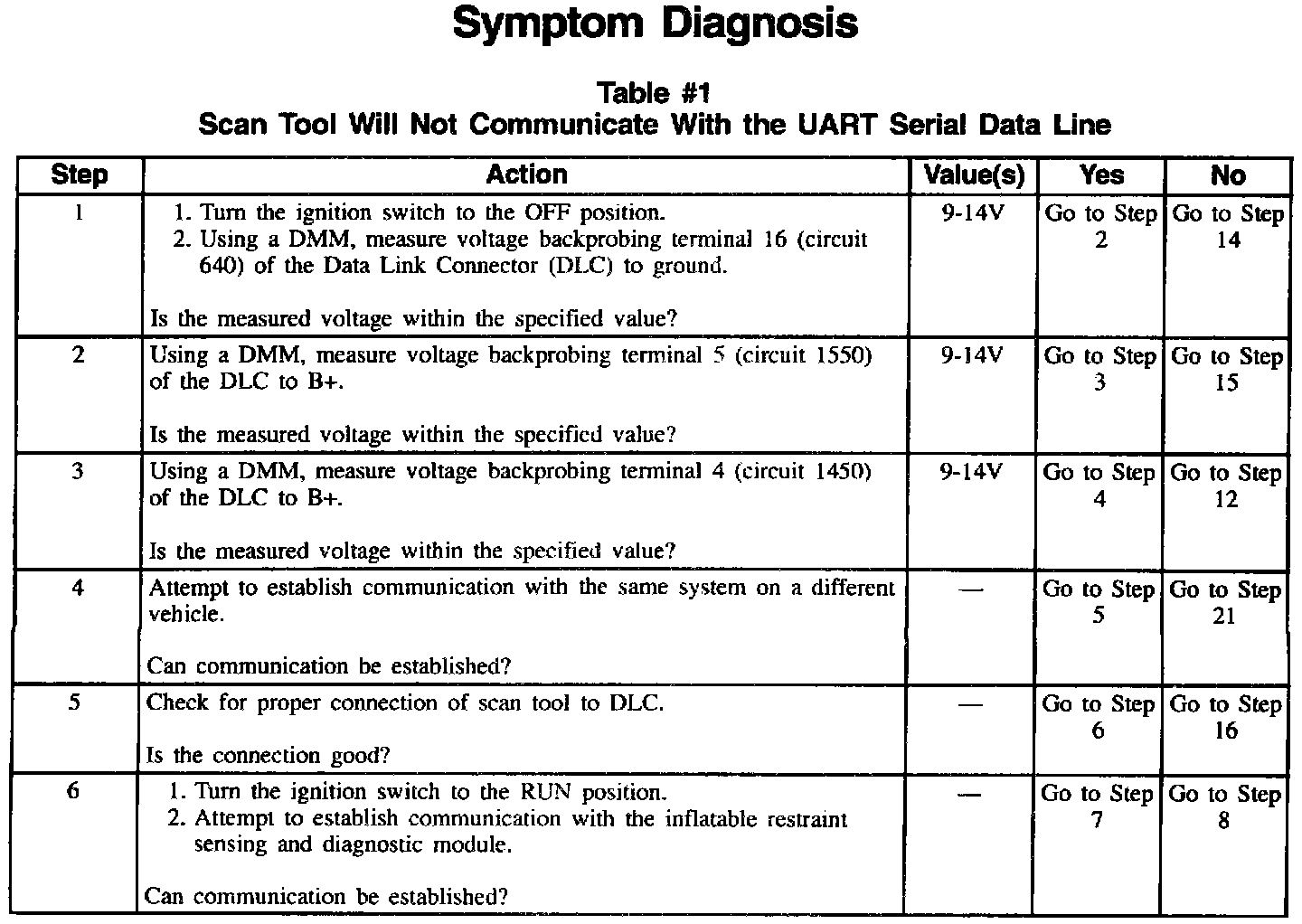

Table #1 Scan Tool Will Not Communicate With The UART Serial Data Line (Part 1 Of 3):

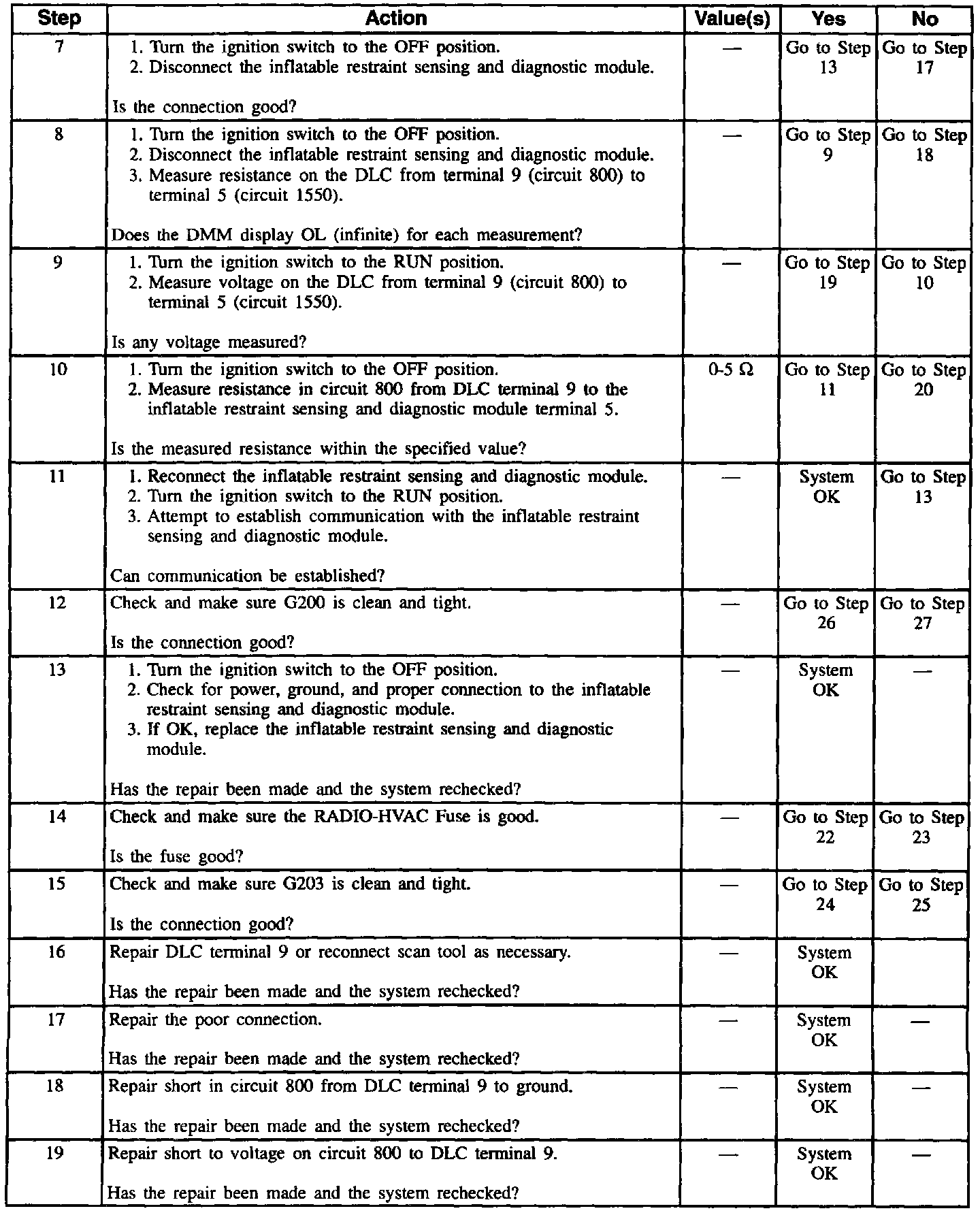

Table #1 Scan Tool Will Not Communicate With The UART Serial Data Line (Part 2 Of 3):

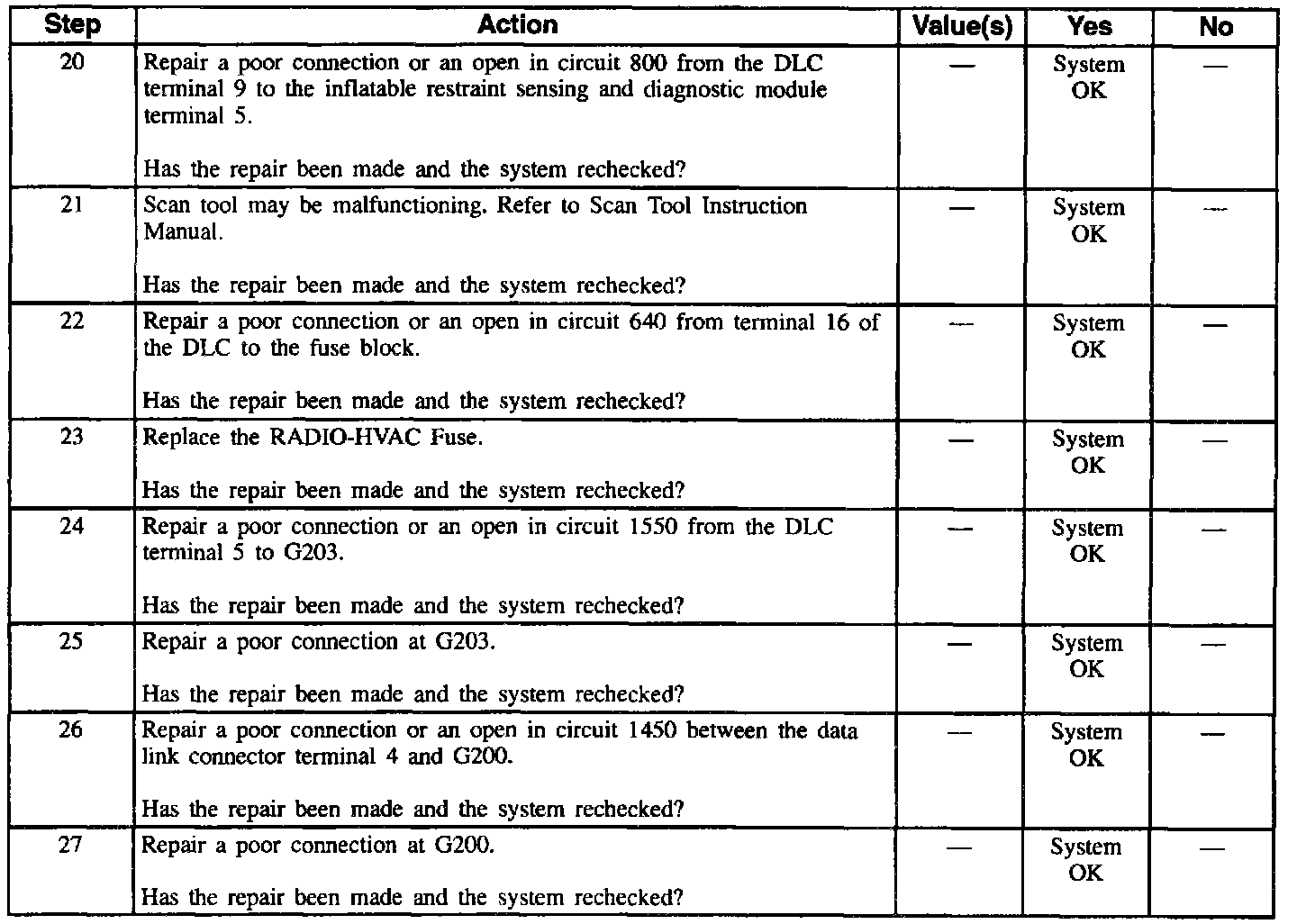

Table #1 Scan Tool Will Not Communicate With The UART Serial Data Line (Part 3 Of 3):
