Connector Identification

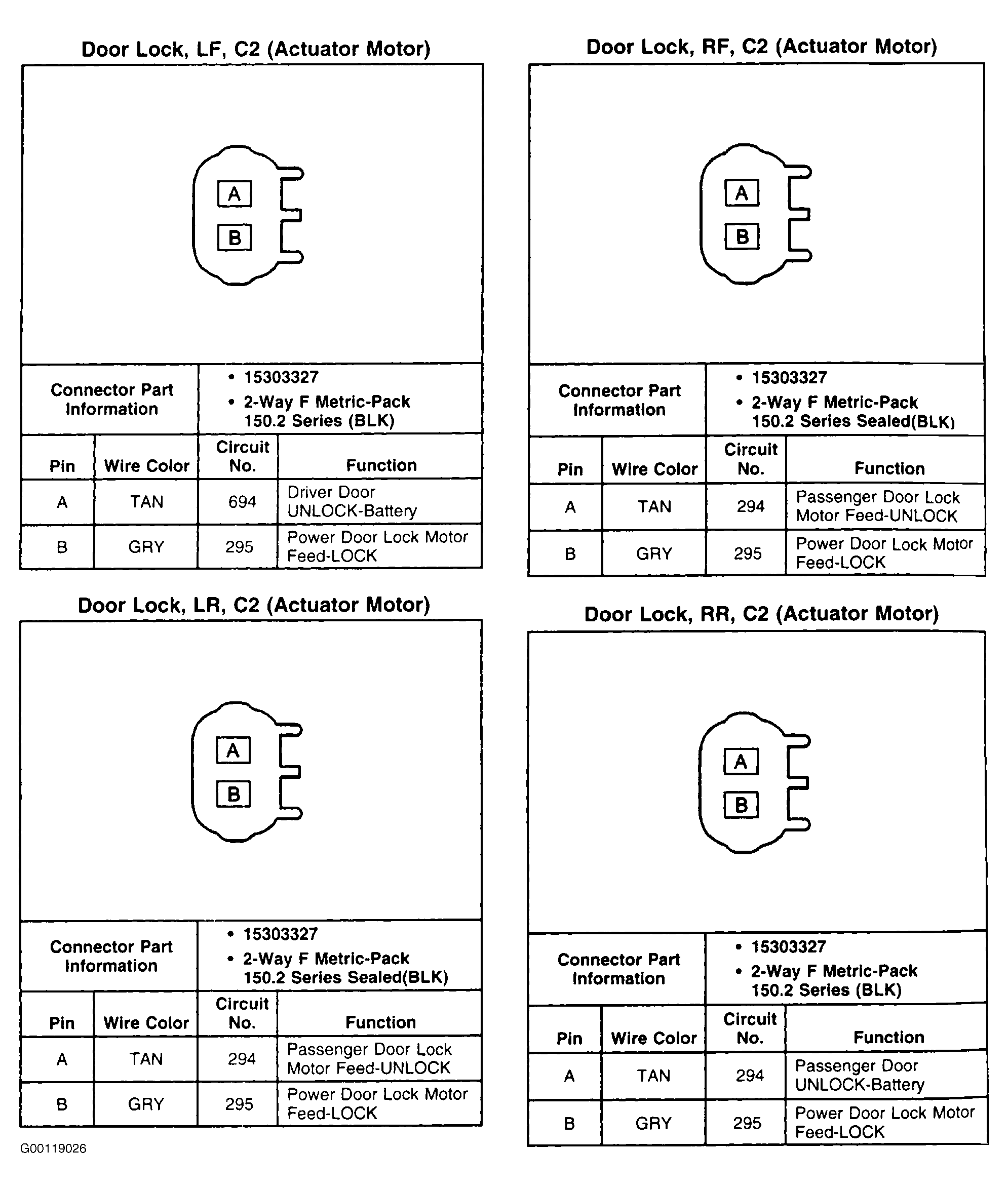

Fig 1: Power Door Lock Connectors (1 Of 2)
G00119026Courtesy of GENERAL MOTORS CORP.

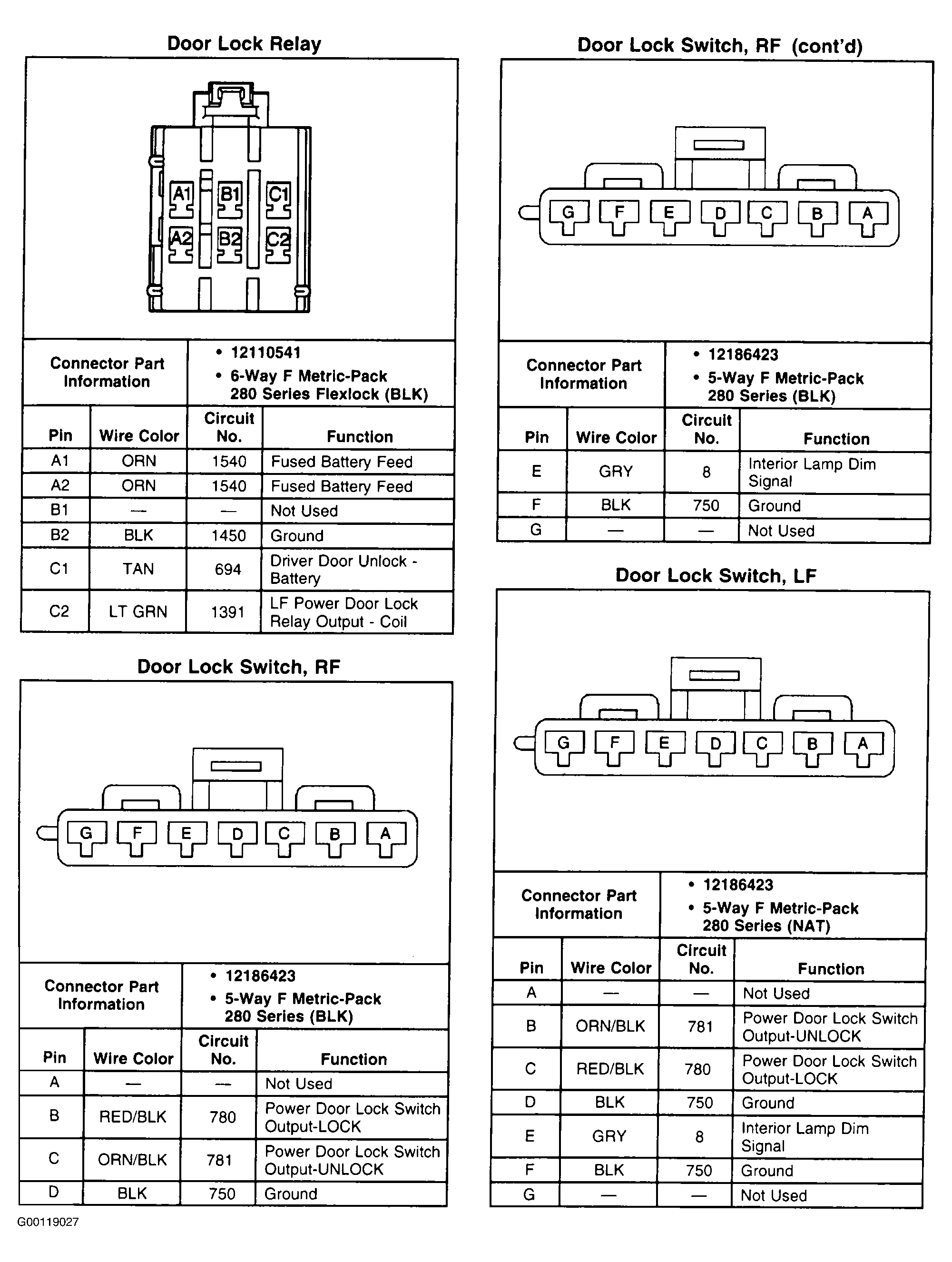

Fig 2: Power Door Lock Connectors (2 Of 2)
G00119027Courtesy of GENERAL MOTORS CORP.
