Connector Identification

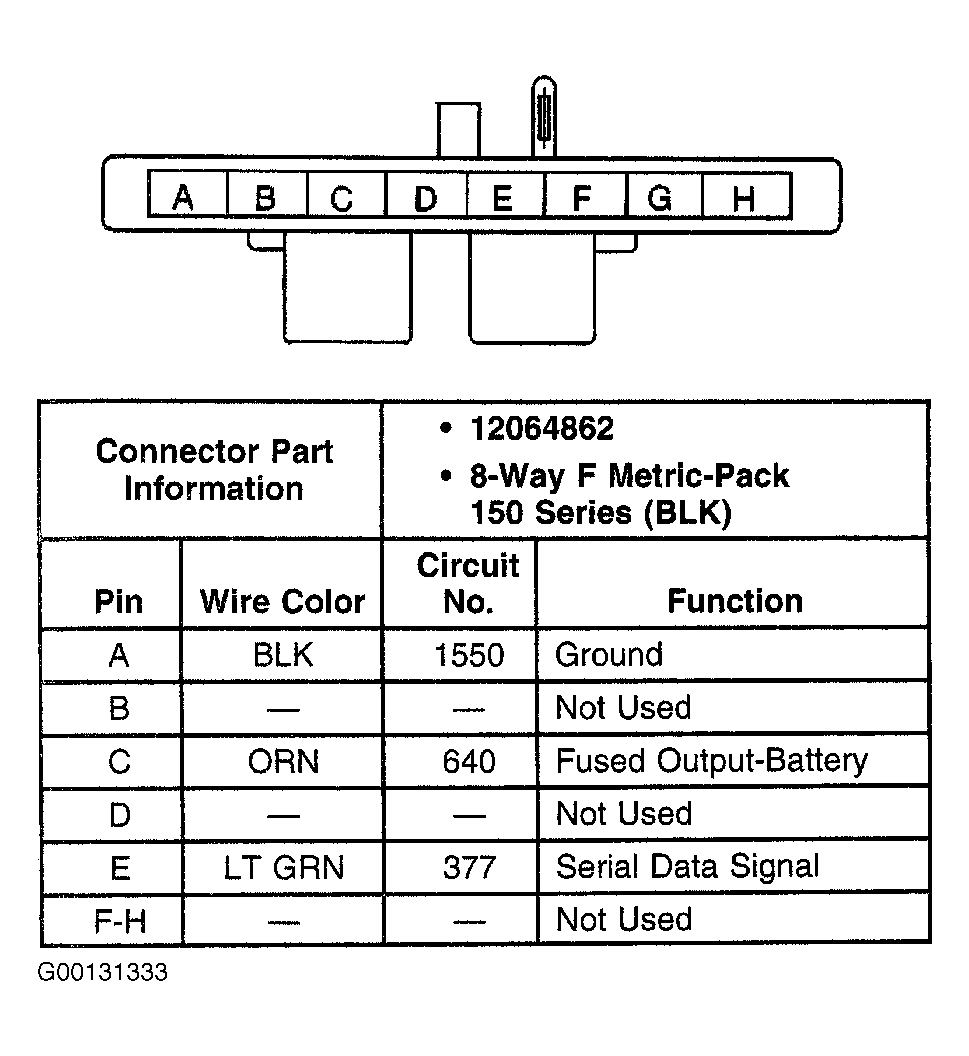

Fig 1: Identifying Remote Control Door Lock Receiver Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
