Remote Keyless Entry System Check

Begin diagnosis with Remote Keyless Entry Check. See Fig 1 and Fig 2 . Check for any stored diagnostic codes.SELF-DIAGNOSTIC SYSTEM .

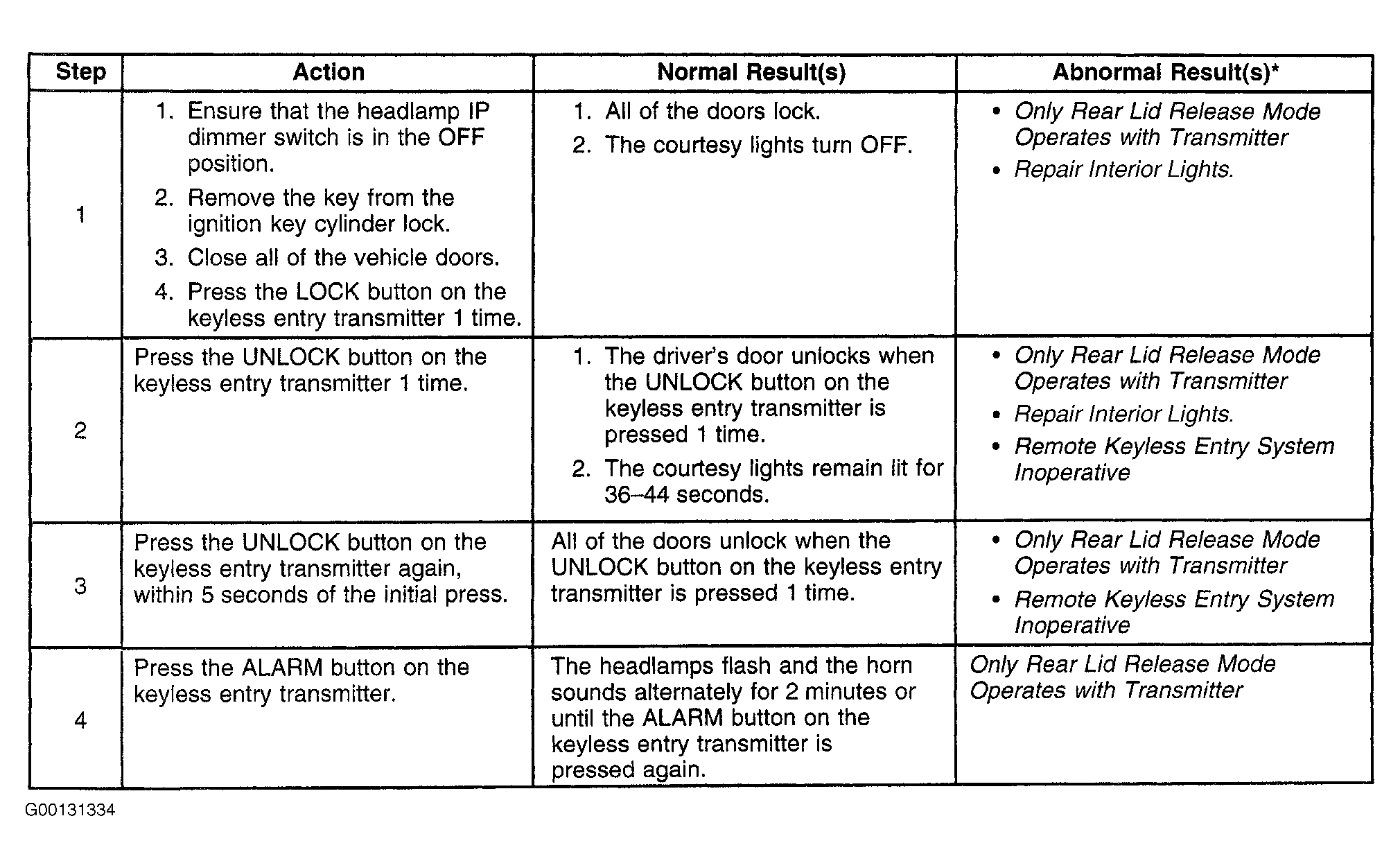

Fig 1: Remote Keyless Entry System Check (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

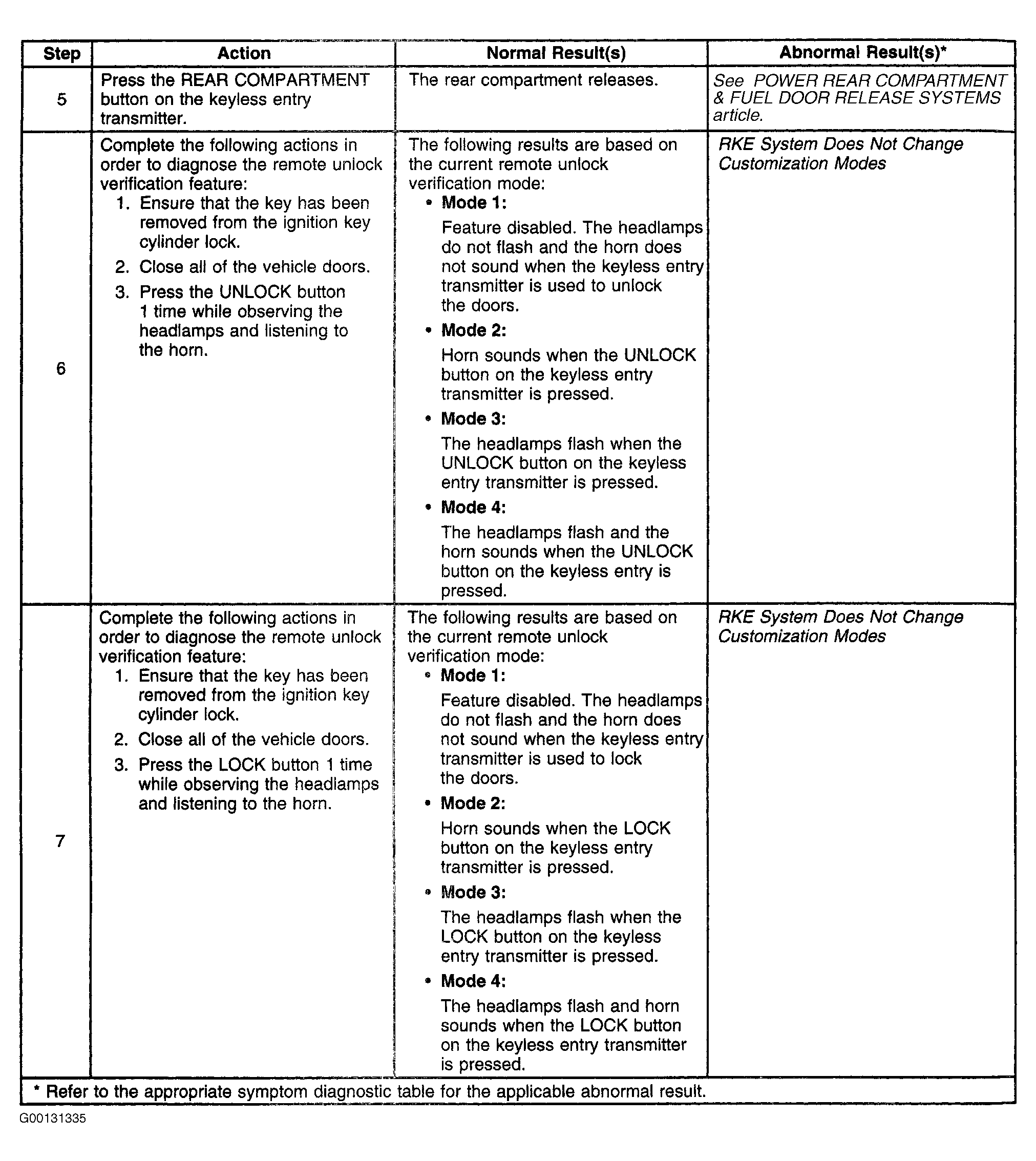

Fig 2: Remote Keyless Entry System Check (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

NOTE: For testing procedures referred to in Remote Keyless Entry System Check tables, go to SYSTEM TESTS .
