Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Automatic Transmission Control (BTSI) | Center of console. |
| Blower Motor Control Module | In right side of heater-A/C module. See Figure . |

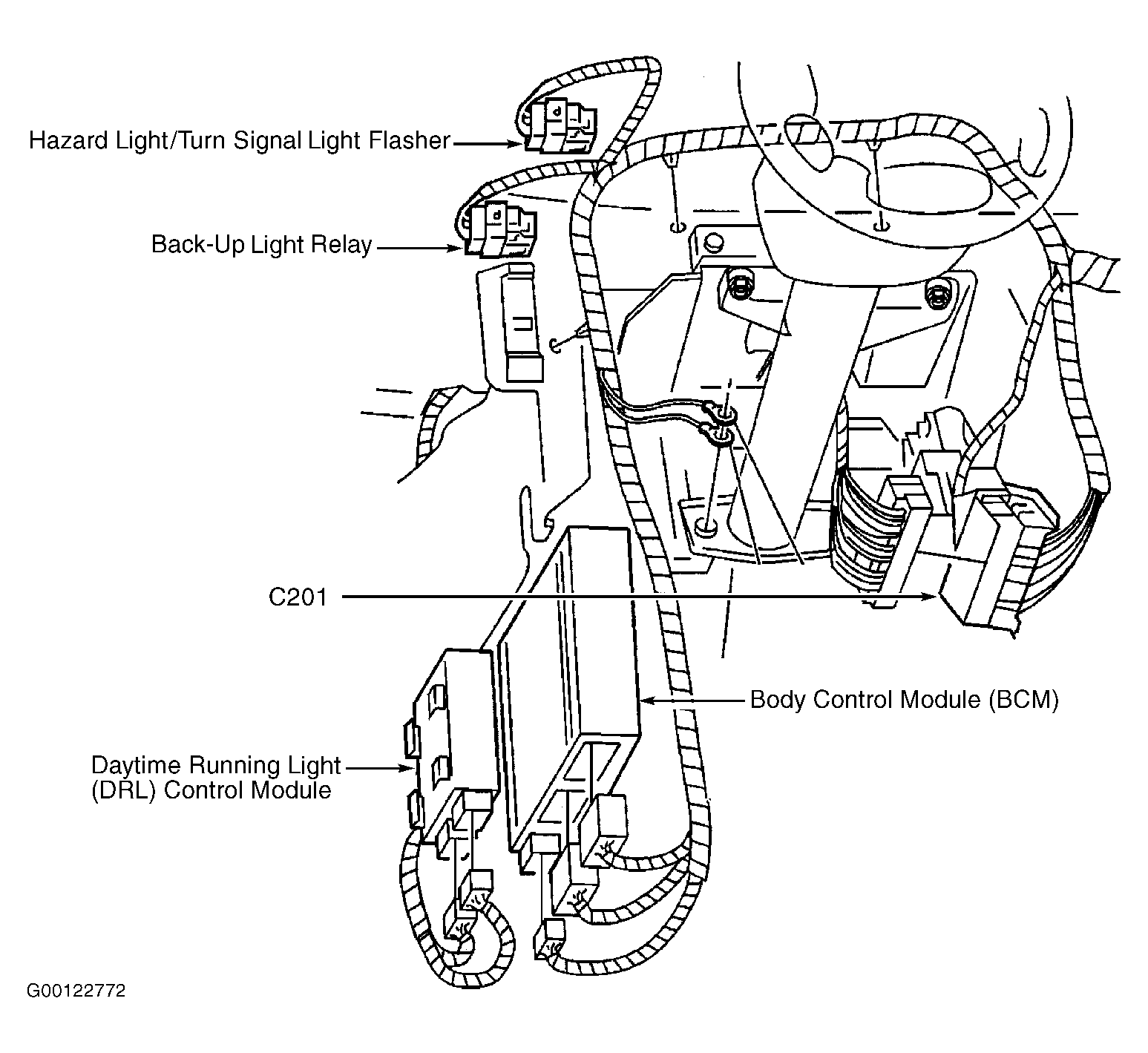

| Body Control Module (BCM) | Behind left side of dash, left of steering column. See Figure . |
| Cruise Control Module | Front of left strut tower. |
| Daytime Running Lamp (DRL) Control Module | Behind left side of dash. See Figure . |
| Electronic Brake Control/Electronic Brake Traction Control Module (EBCM/EBTCM) | Below left side of dash, left of steering column. |
| Engine Coolant Level Indicator Module | Mounted on right side of radiator. |
| Ignition Control Module (ICM) (3.1L VIN M) | Top right side of engine. See Figure . |
| Ignition Control Module (ICM) (3.8L VIN K) | Top front of engine. |
| Ignition Control Module (ICM) (3.8L VIN 1) | Top front of engine. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below carpet, under right front seat. |
| Powertrain Control Module (PCM) | Left front side of engine compartment, in air cleaner assembly. |
| Radio Antenna Module | On rear window header panel, above headliner. |
| Remote Control Door Lock Receiver (RCDLR) | Left side of dash, on right side of instrument cluster. |
| Seat Heater Control Module | Below right side of driver's seat. |
| Sun Roof Module (Express Open) | Right corner of sun roof. |
