Electronic Traction Control Switch

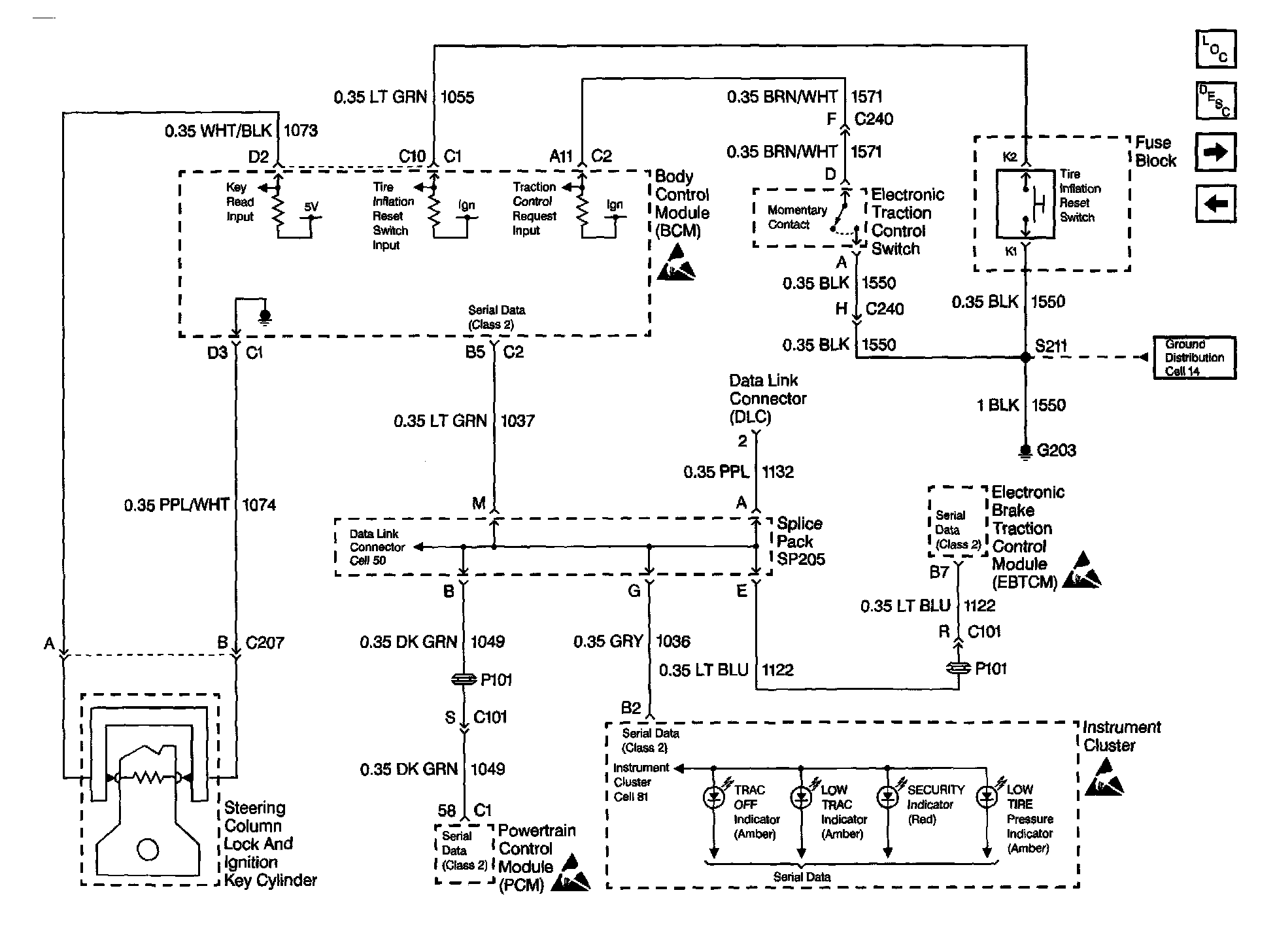

Body Control Module Schematics: Electronic Traction Control Switch, Tire Inflation Reset Switch, Class 2 Serial Data And Pass Key (R):
