Interior Lights Control - Inadvertent BATT Rundown Protection

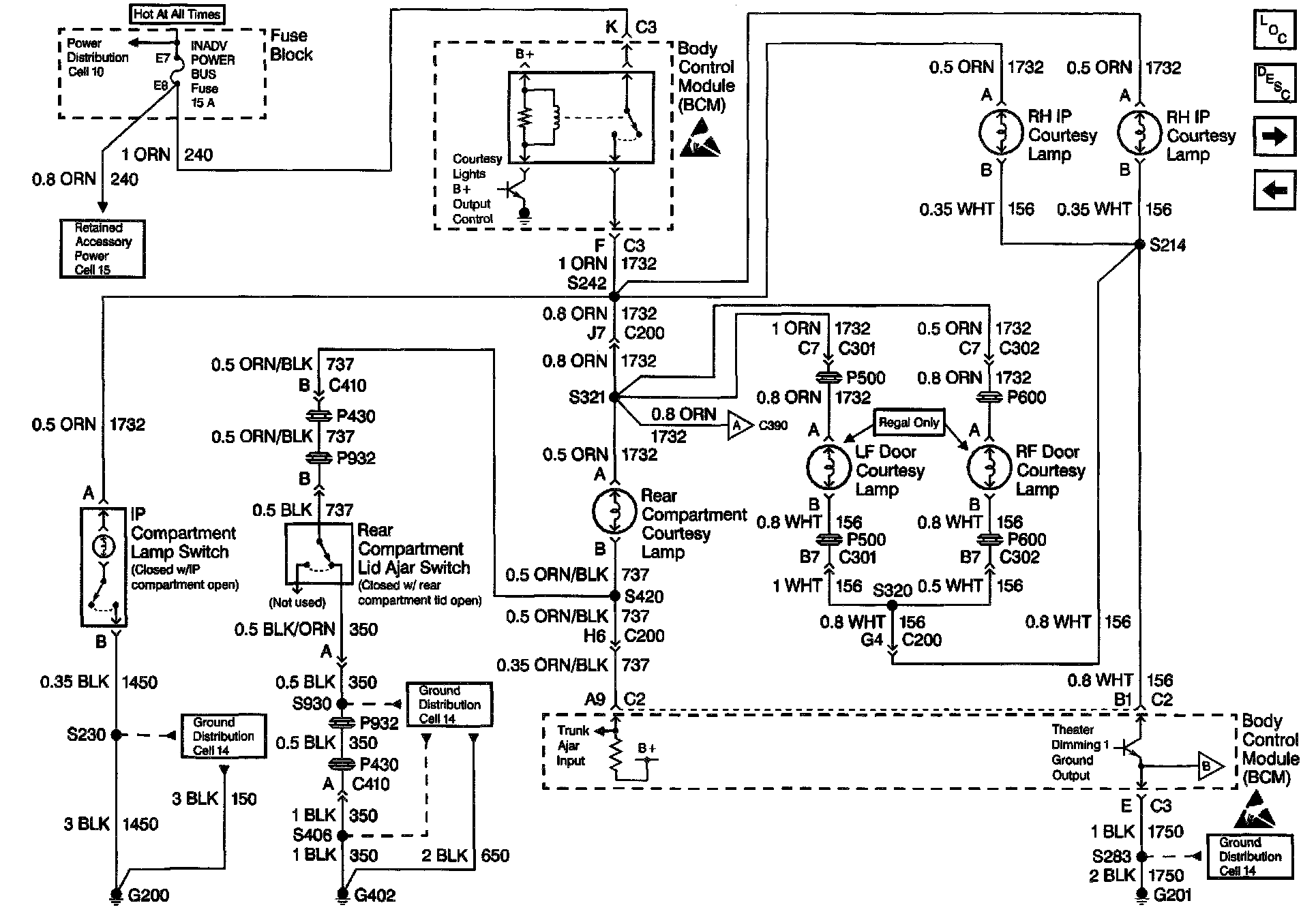

Body Control Module Schematics: Interior Lights Control - Inadvertent Battery Rundown Protection And Theater Dimming 1 Ground Output:
