Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | Behind left rear seat back. |

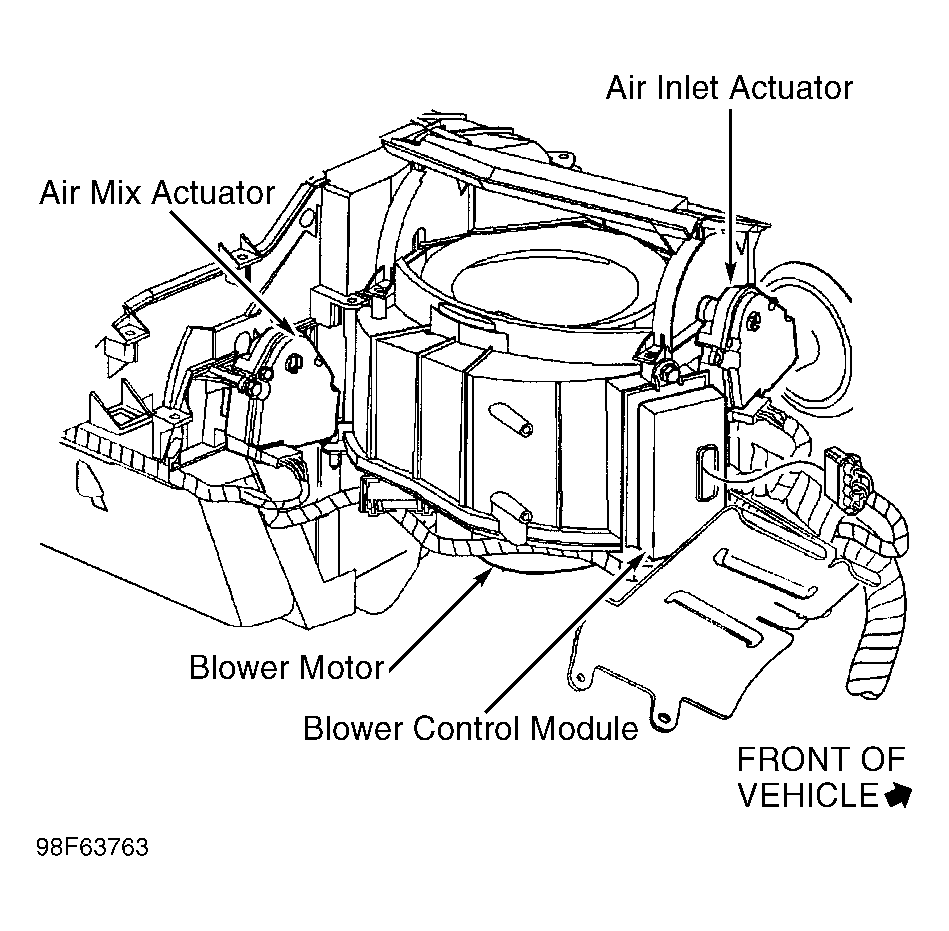

| Blower Control Module | Under right side of dash, above blower motor. See Figure . |

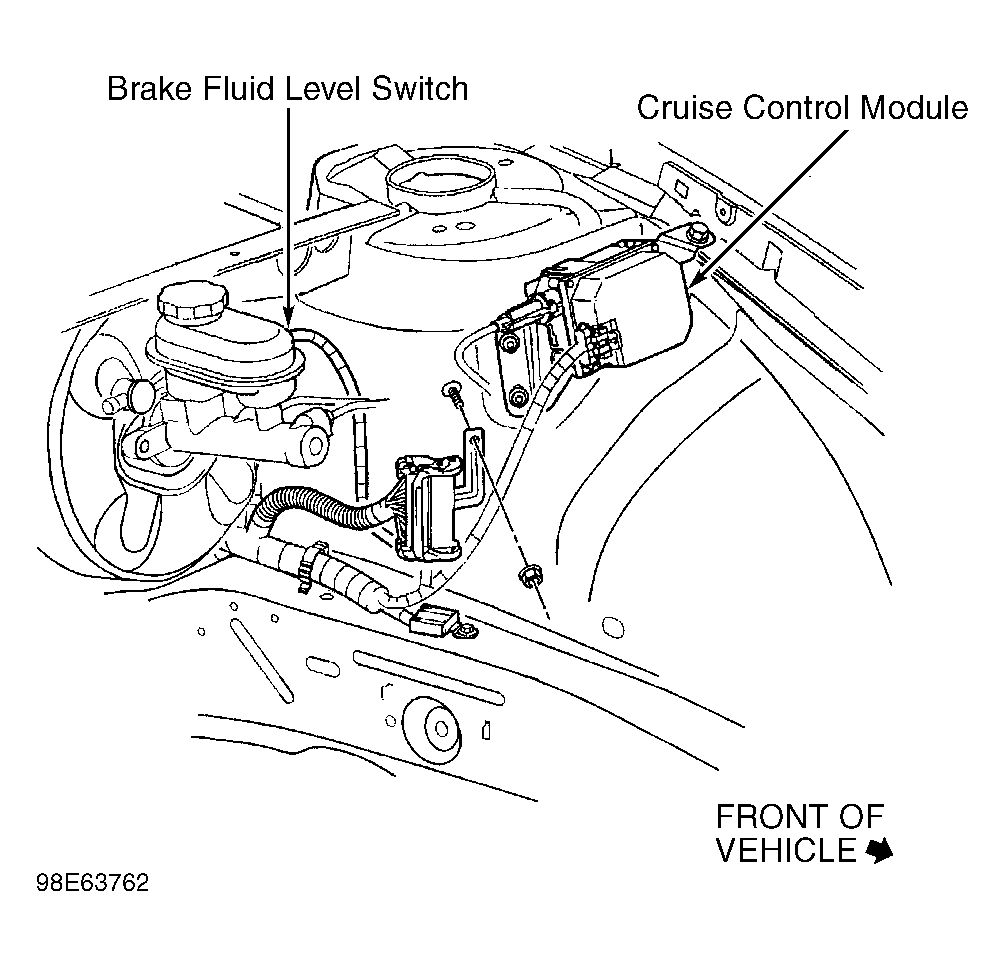

| Cruise Control Module | On left side of engine compartment, on strut tower. See Figure . |
| Dash Integration Module (DIM) | Behind right side of dash, under sound insulator. |
| Electronic Brake (& Traction) Control Module (EBCM/EBTCM) | On left front of engine compartment. |
| Electronic Compass Module | Under left side of rear shelf. |
| Fuel Pump Control Module (3.8L VIN 1) | In right side of luggage compartment, above CD player. |

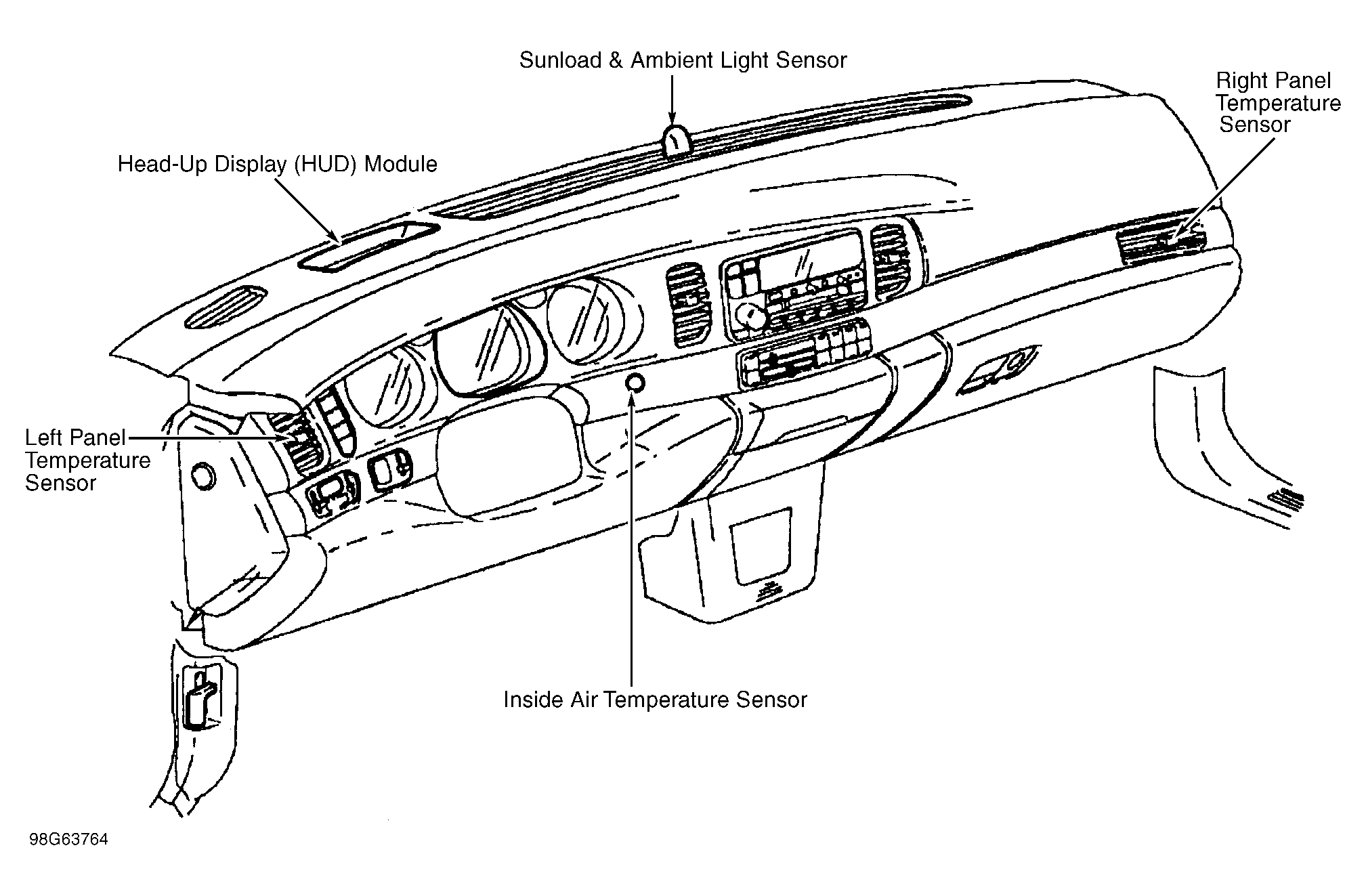

| Head-Up Display (HUD) Module | On top left side of dash. See Figure . |

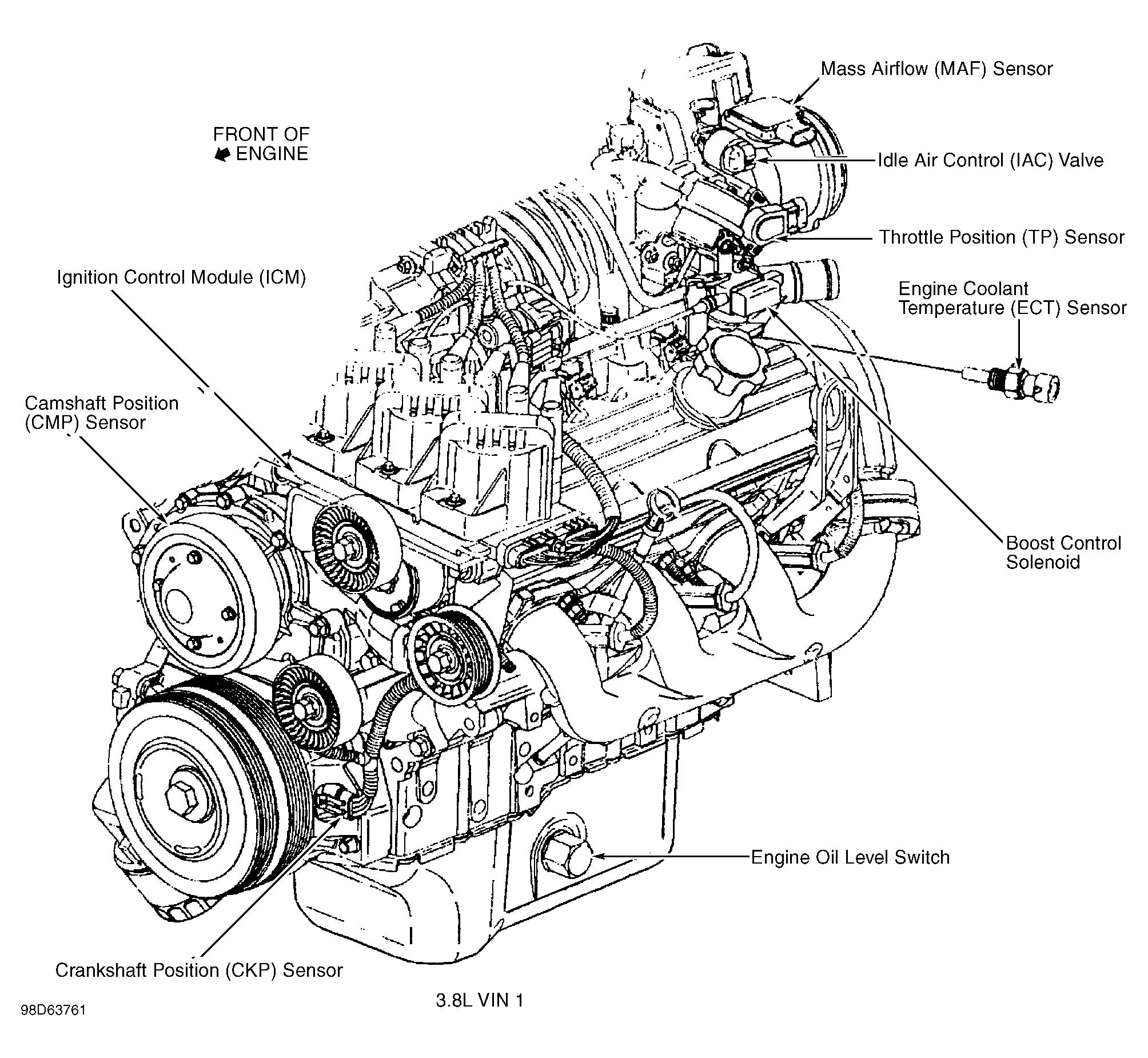

| Ignition Control Module (ICM) (3.8L VIN K) | On top left front of engine. See Figure . |
| Ignition Control Module (ICM) (3.8L VIN 1) | On top left front of engine. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of center console, mounted to floor pan. |
| Instrument Panel Integration Module (IPM) | Behind left side of dash. |
| Memory Seat Module (MSM) | Under driver's seat. |
| Powertrain Control Module (PCM) | In air cleaner housing. |
| Radio Antenna Module | On center rear of headliner. |
| Rear Integration Module (RIM) | Behind upper left rear seat cushion. |

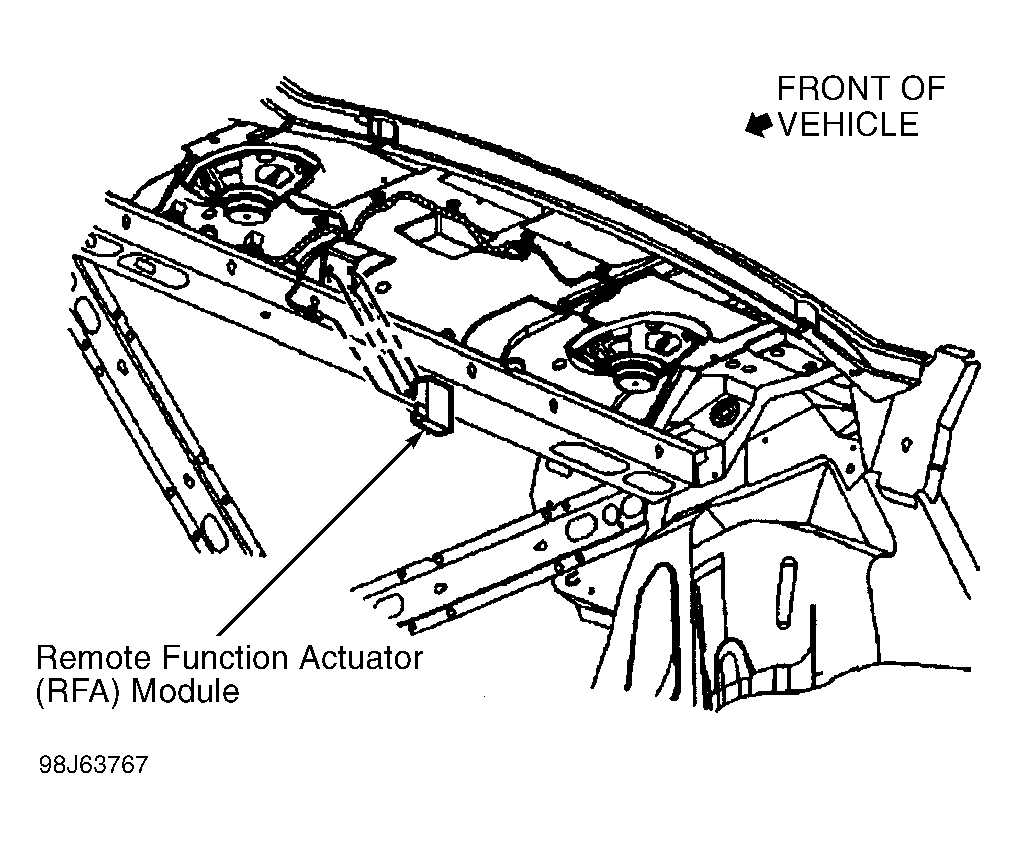

| Remote Function Actuator (RFA) Module | Below rear shelf. See Figure . |

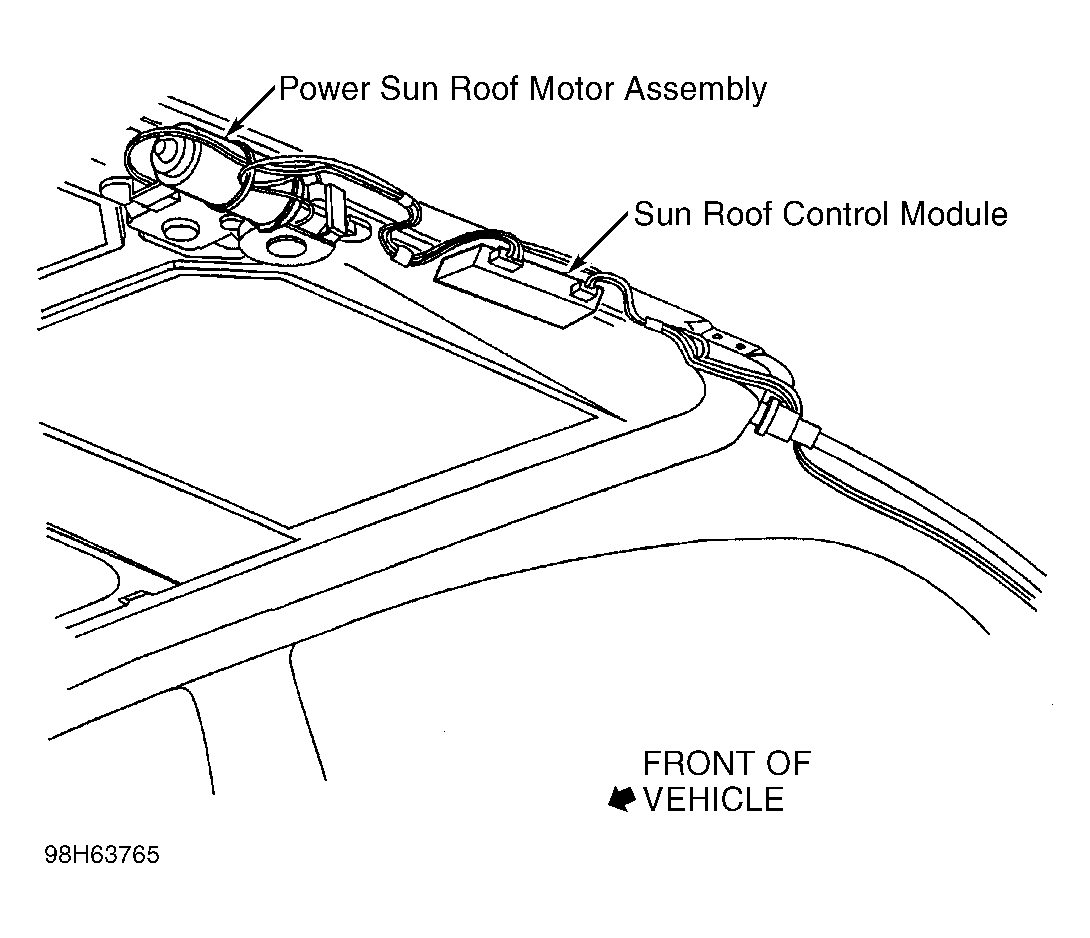

| Sun Roof Control Module | Rear of glass assembly, above headliner. See Figure . |
| Vehicle Theft Deterrent Module | On right side of steering column, behind shroud at ignition switch. |
