Cruise Control Cable Replacement

REMOVAL PROCEDURE

IMPORTANT: Note the cable routing for replacement.

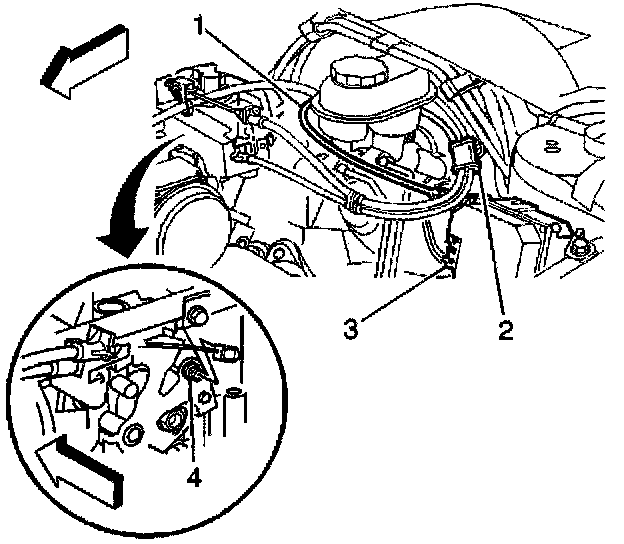

1. Disconnect the cruise control cable from the following components:
^ The throttle body fuel injection cam
^ The throttle body bracket (4)
2. Disconnect the cruise control cable from the cruise control module (3).
3. Disconnect the cable from the retainers (2).

INSTALLATION PROCEDURE
1. Connect the cruise control cable to the cruise control module.
2. Install the cruise control cable to the throttle body injection cam (4).
3. Snap the cable to the throttle body bracket.
4. Connect the cable to the retainers (2).
5. Adjust the cruise control cable. Refer to Cruise Control Cable Adjustment.
