IPM Inputs/Outputs

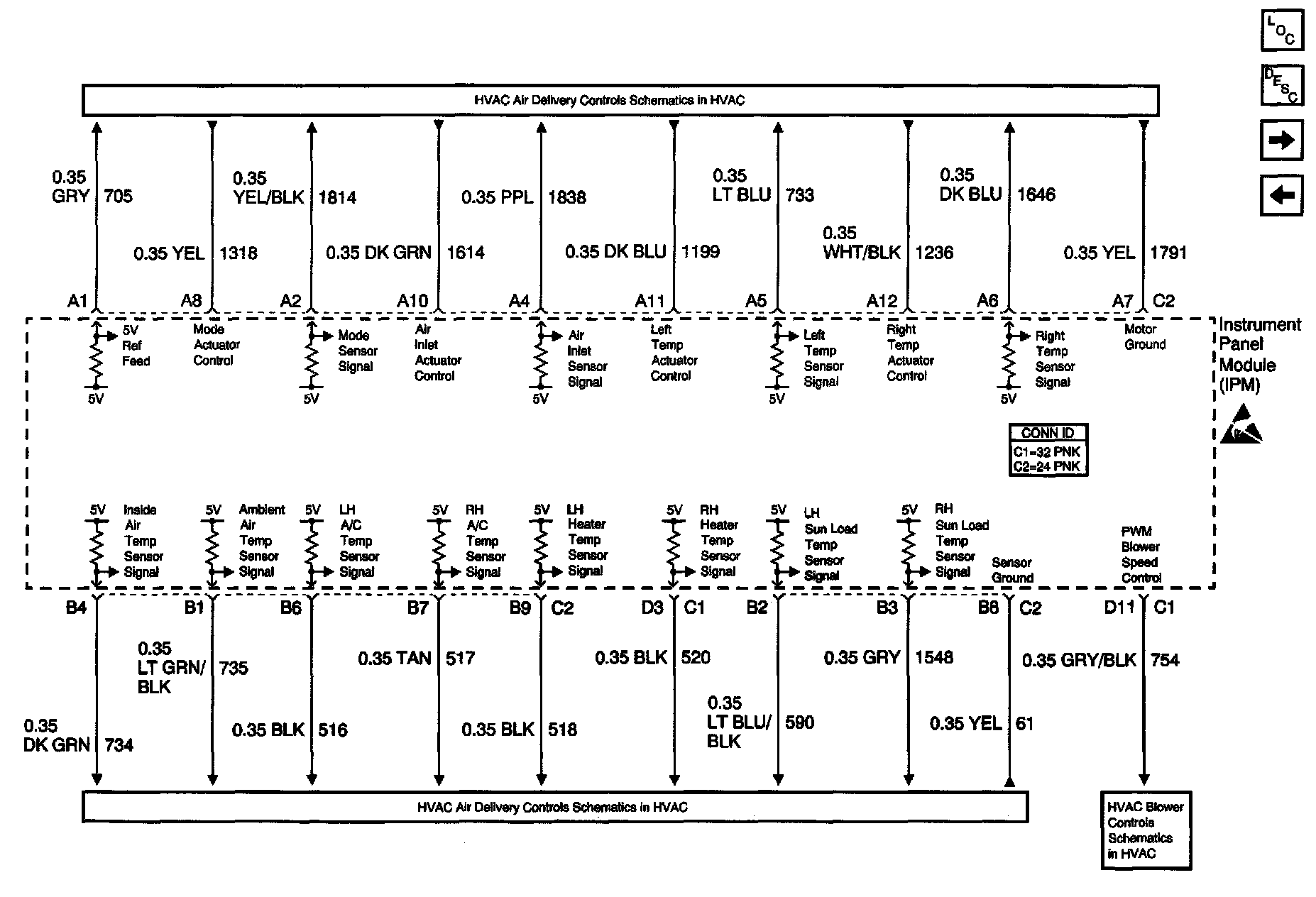

Body Control Module Schematics: IPM Input/output (1 Of 2):

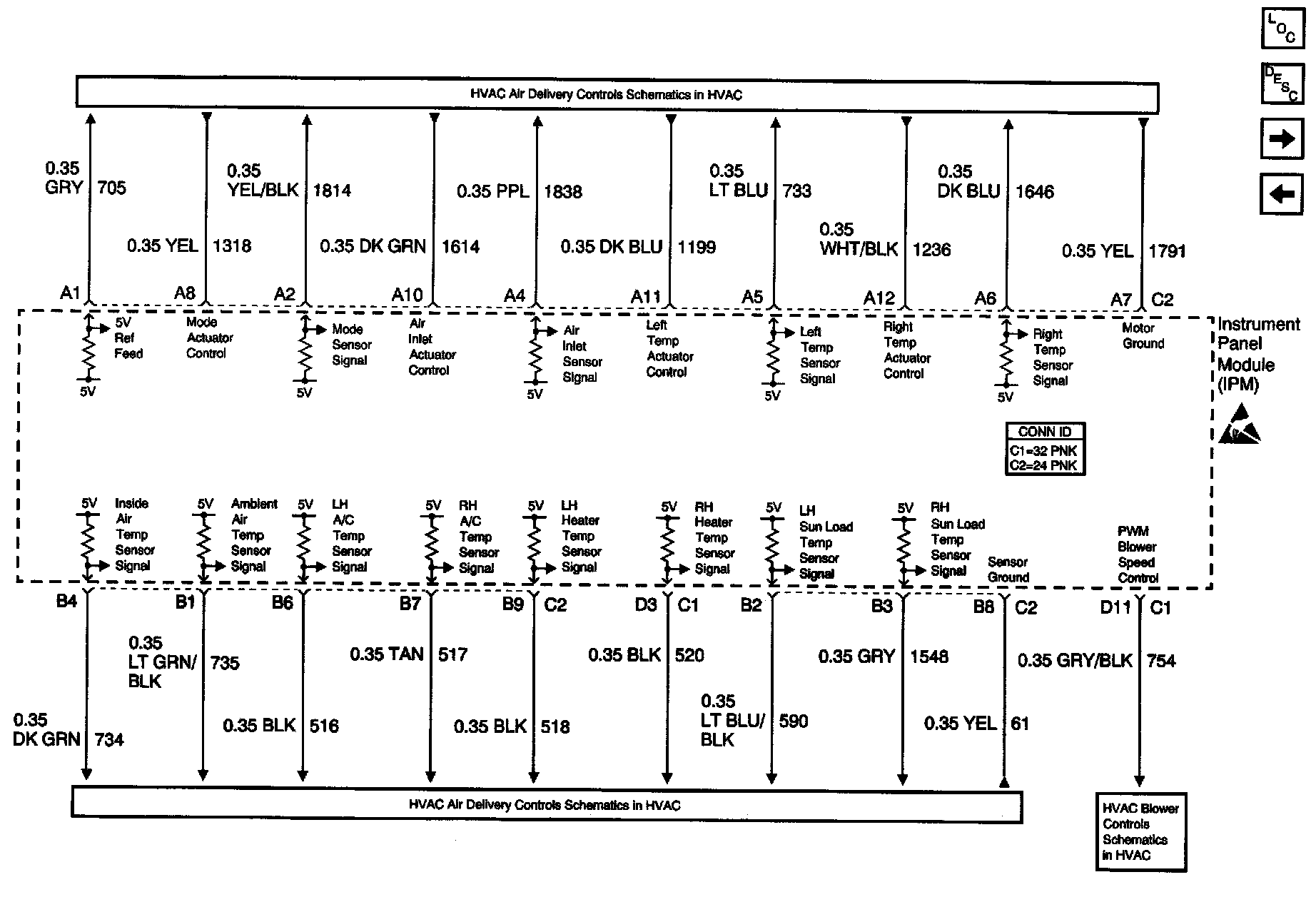

Body Control Module Schematics: IPM Input/Output (2 Of 2):
