C1

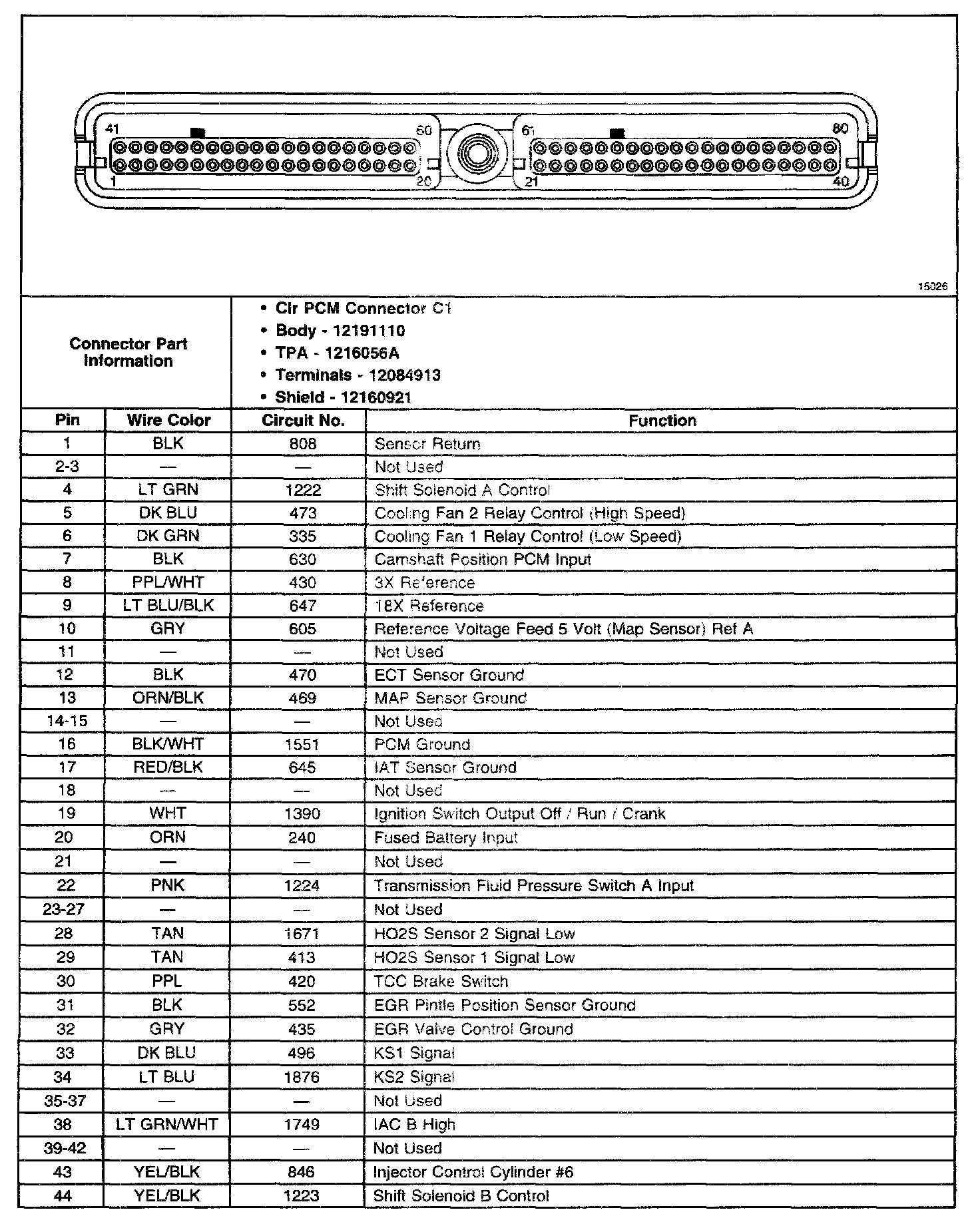

PCM 80-Way Blue Connector C1 Details (Part 1 Of 2):

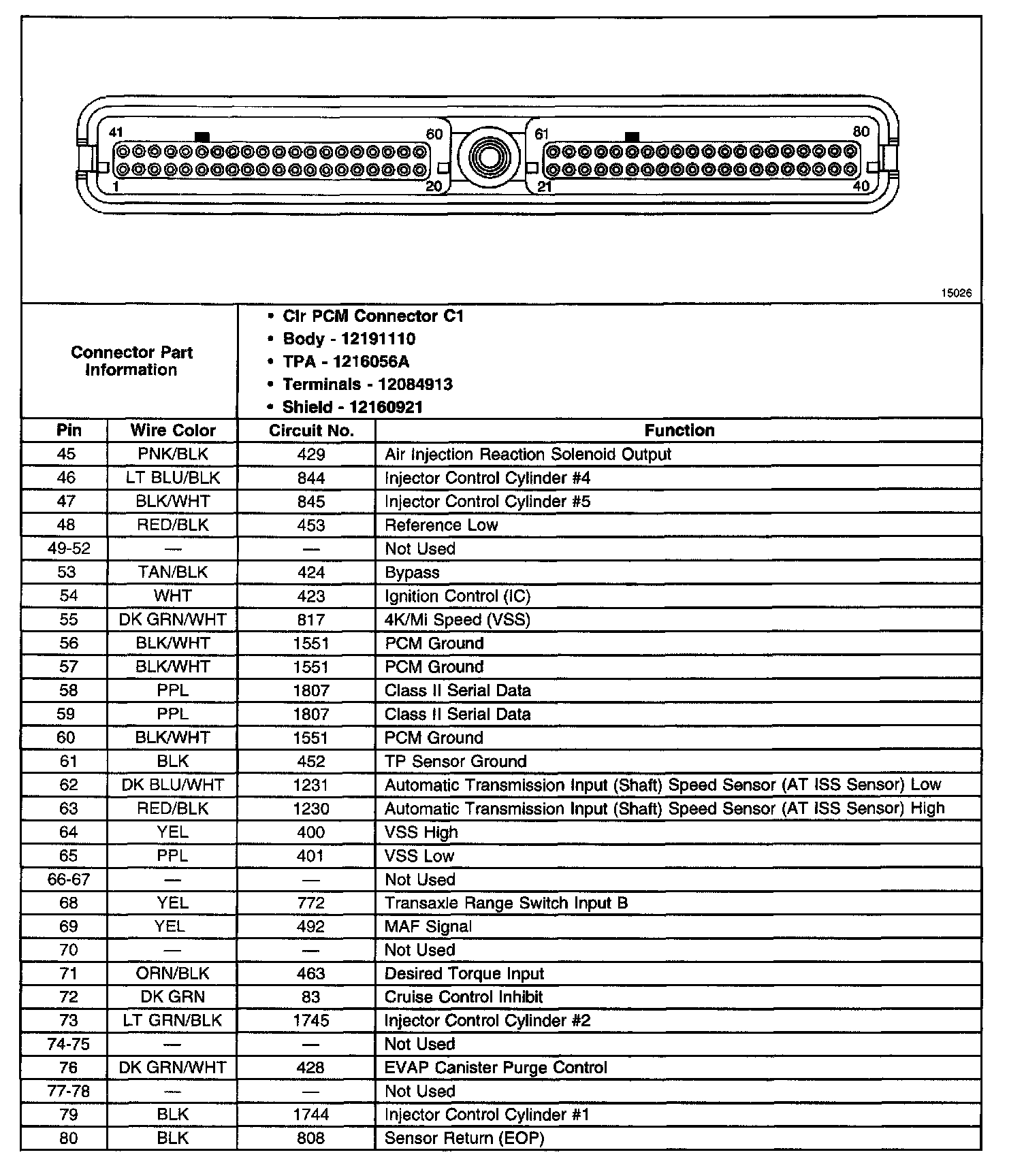

PCM 80-Way Blue Connector C1 Details (Part 2 Of 2):
