DIM Inputs And Outputs

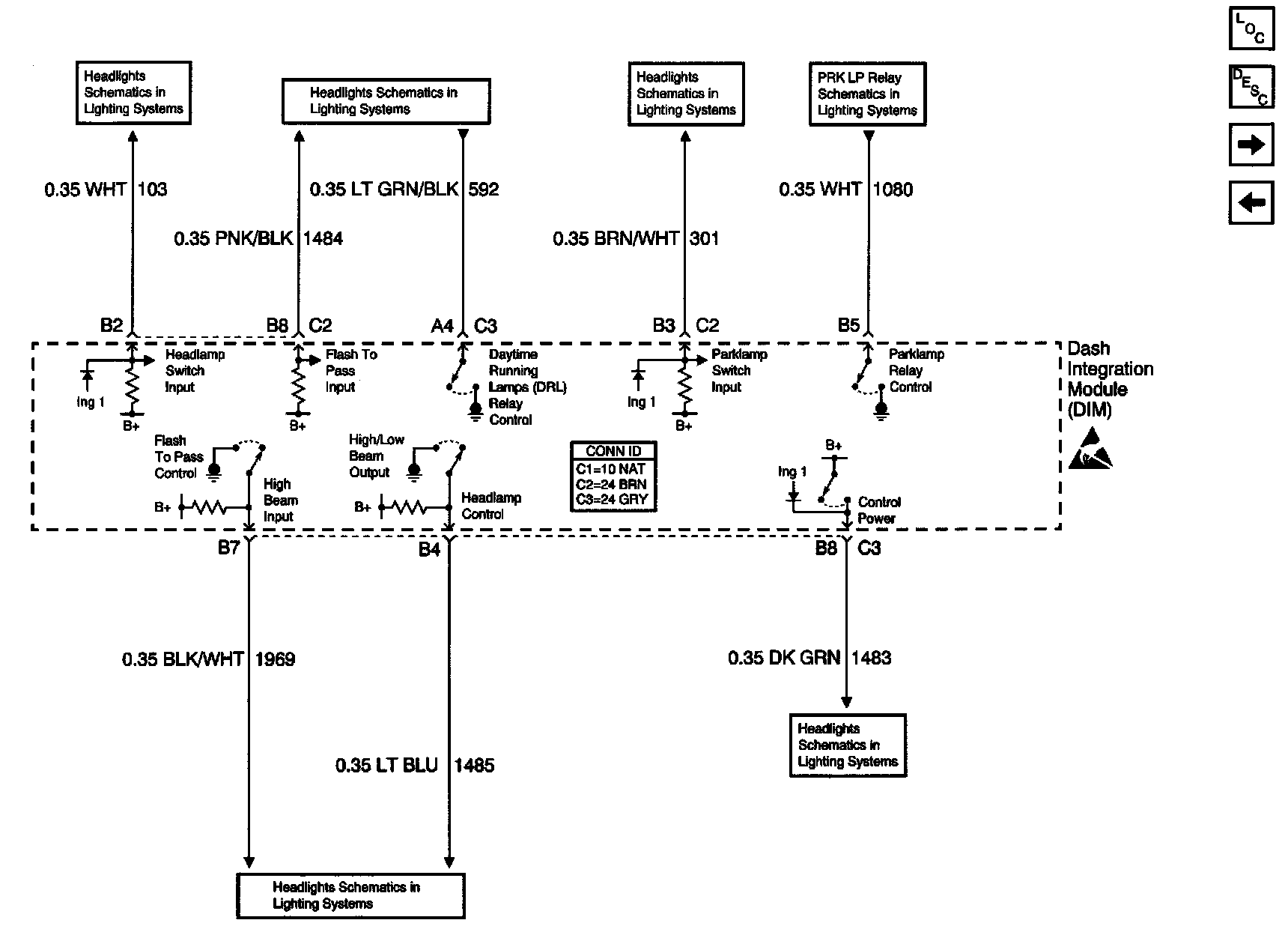

Body Control Module Schematics: DIM Input/Output (1 Of 2):

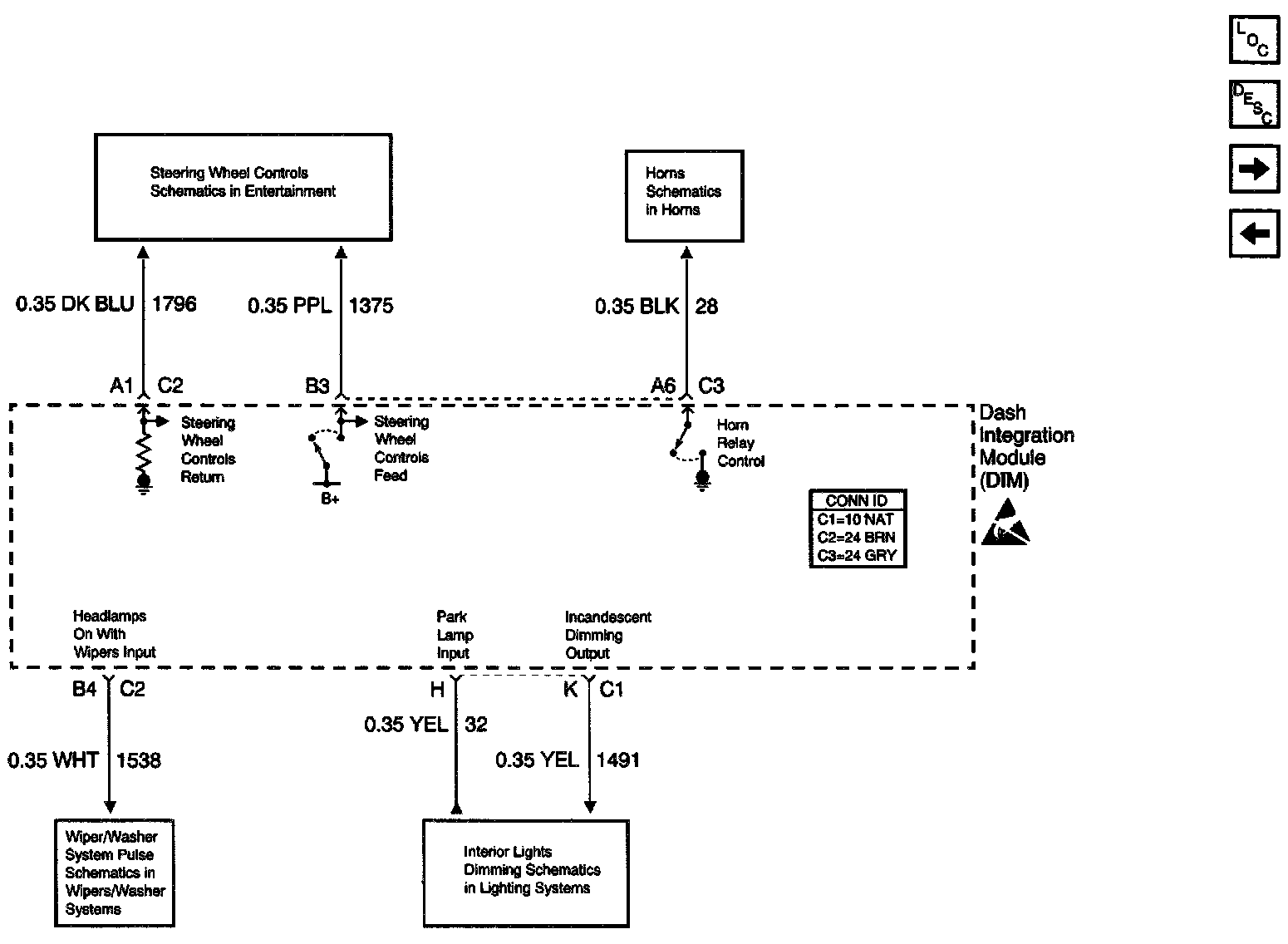

Body Control Module Schematics: DIM Input/Output (2 Of 2):
