WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

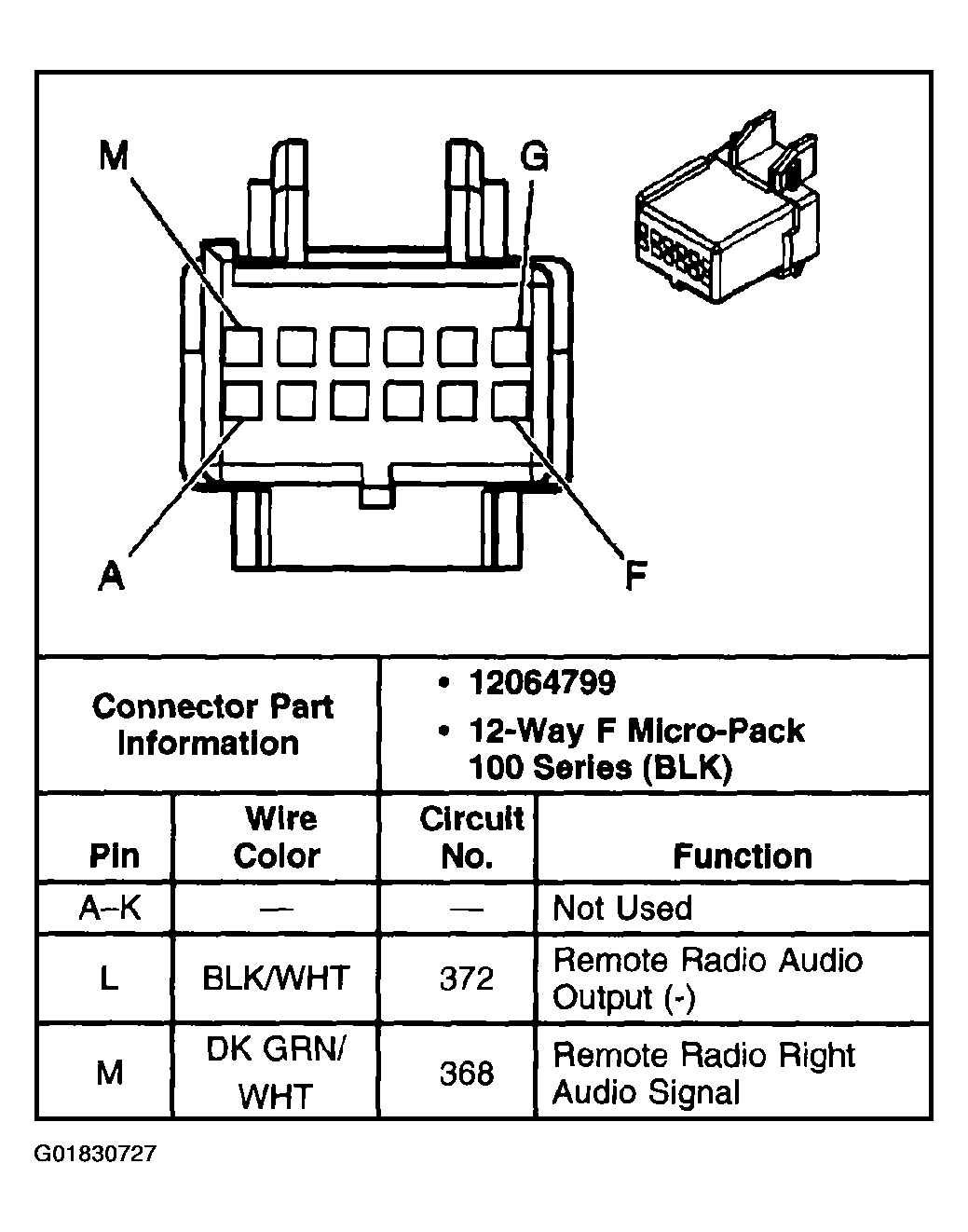

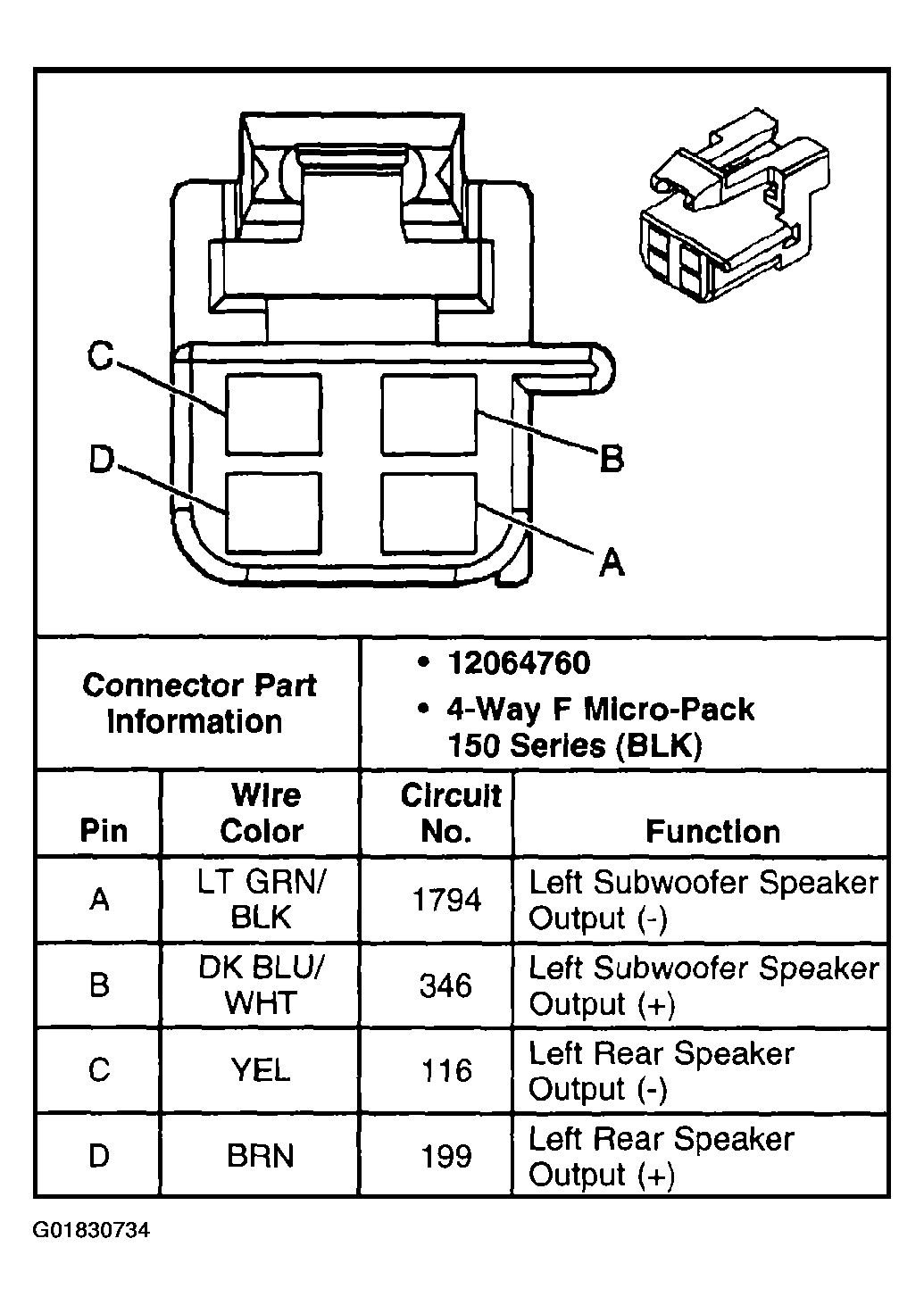

Fig 1: Audio Amplifier C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

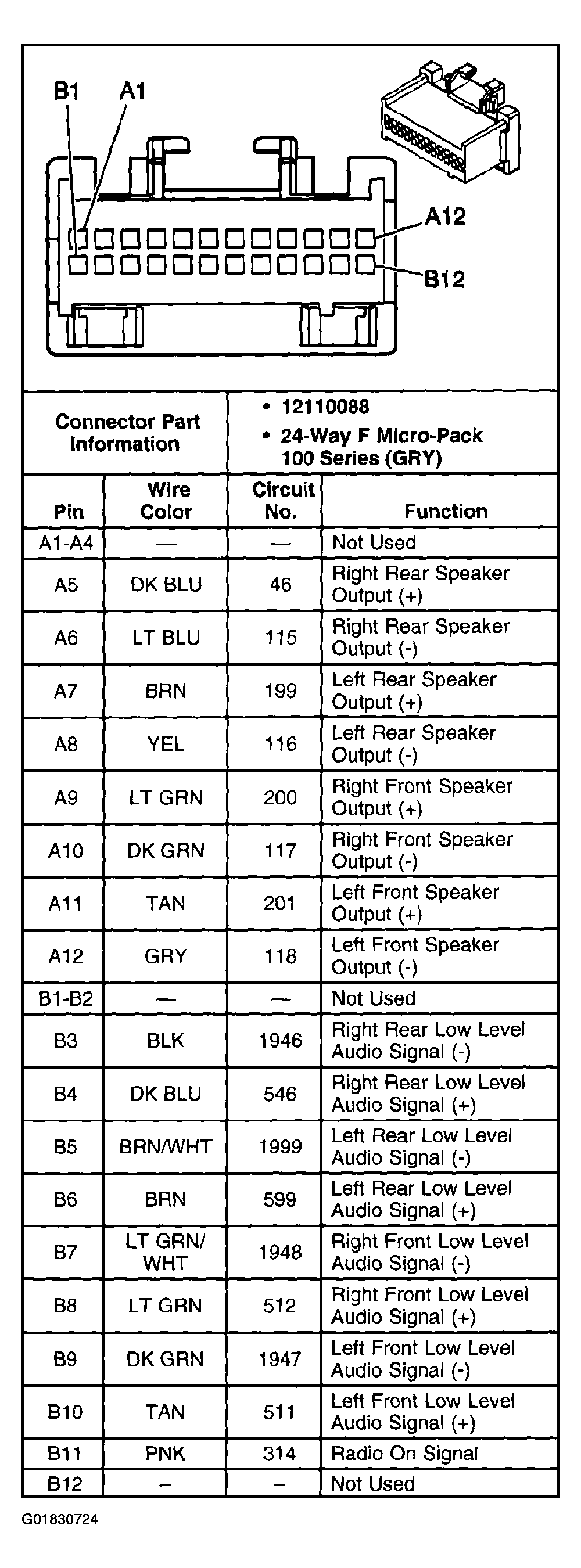

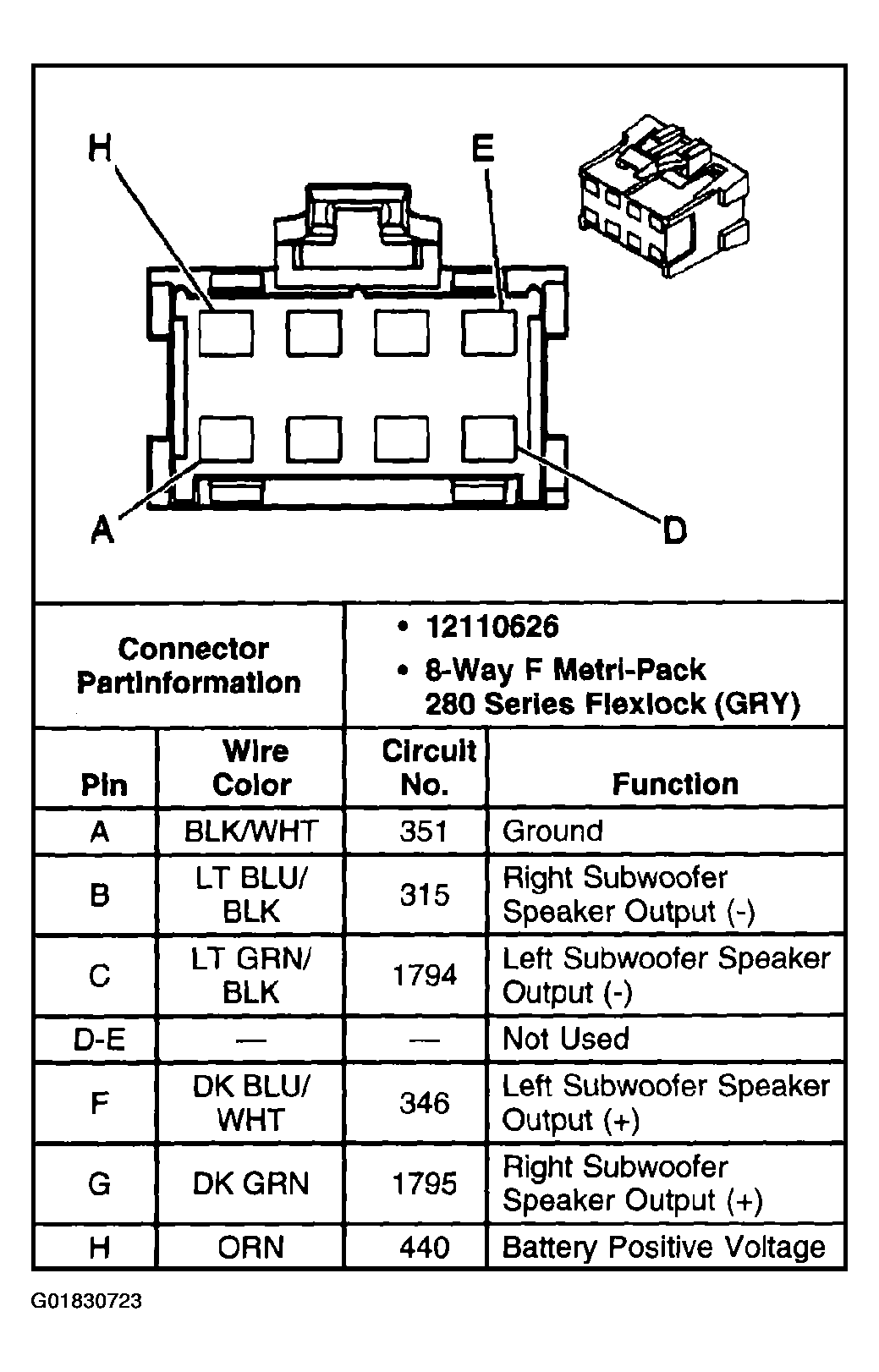

Fig 2: Audio Amplifier C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

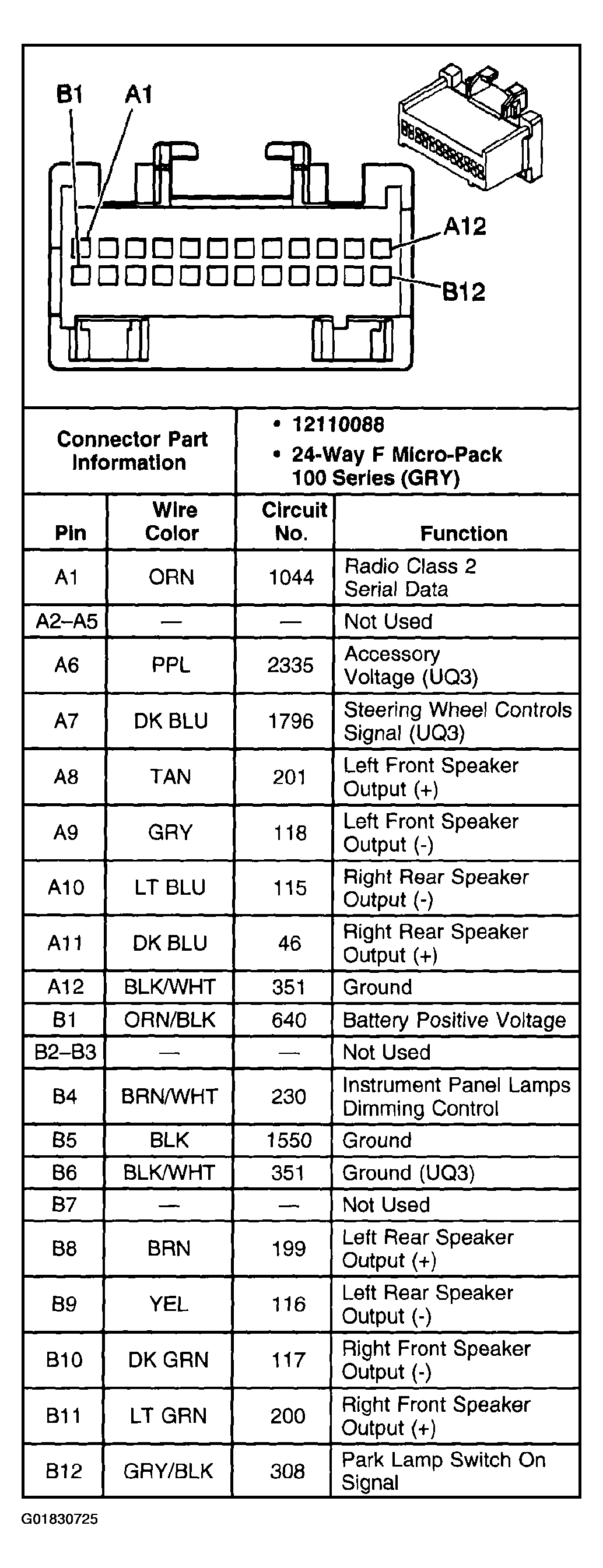

Fig 3: Radio C1 (W/O U85) Connector End View
Courtesy of GENERAL MOTORS CORP.

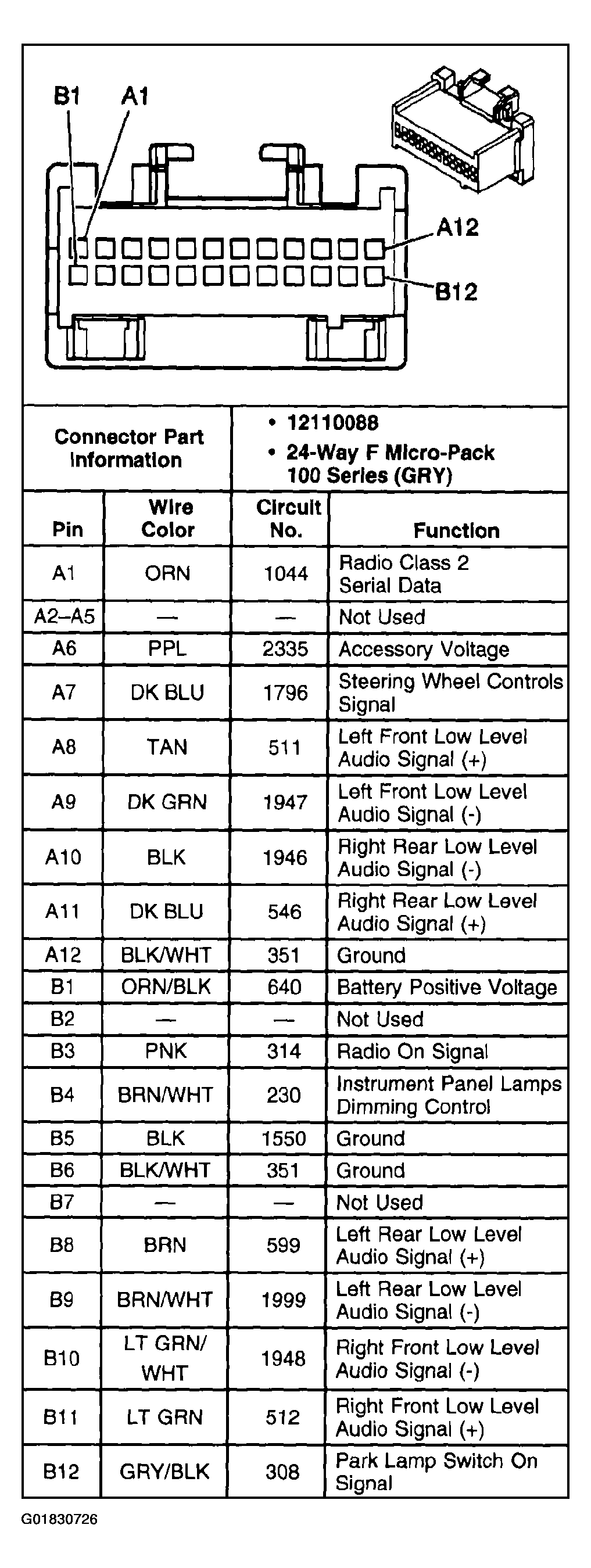

Fig 4: Radio C1 (W/U85) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Radio C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

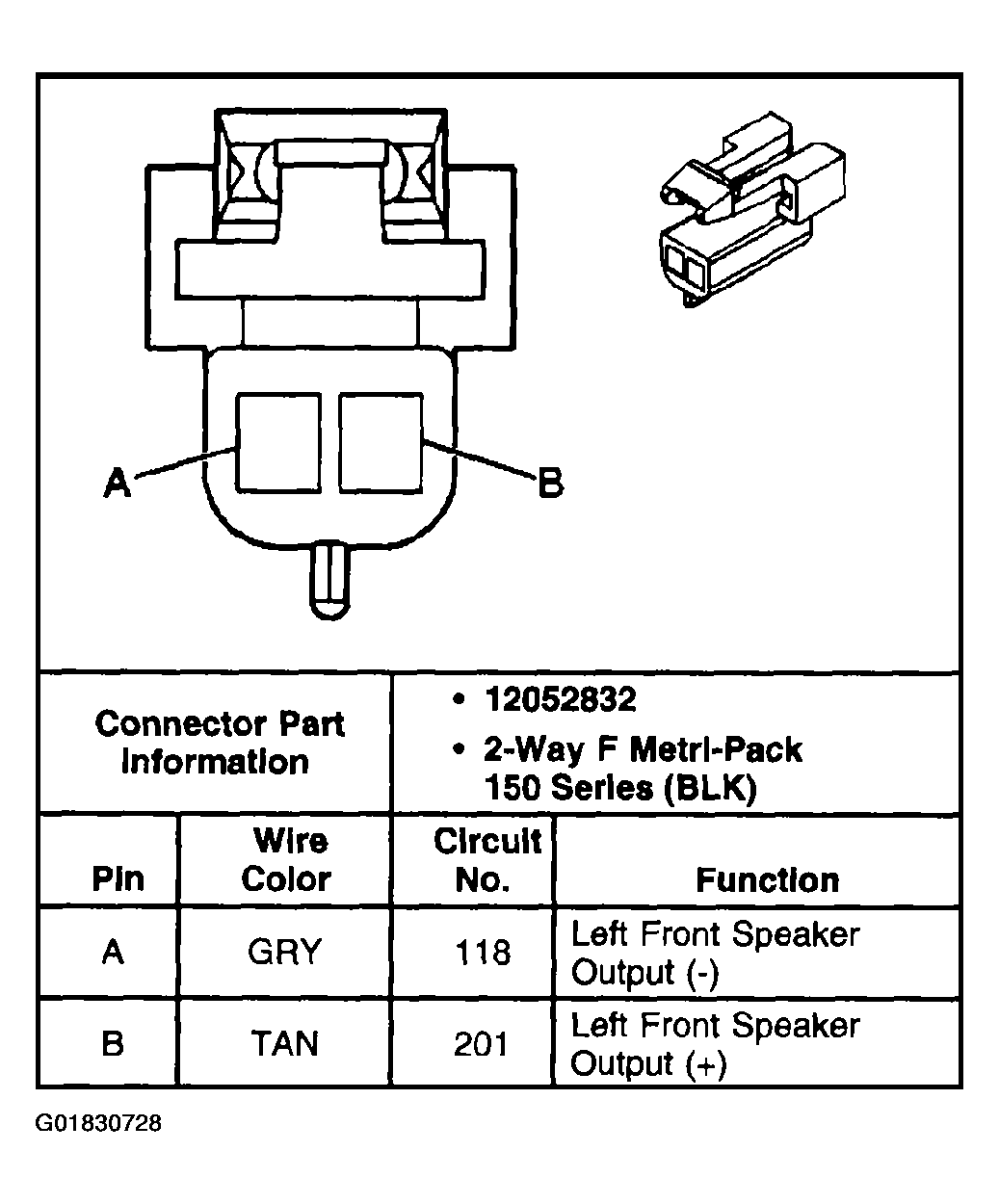

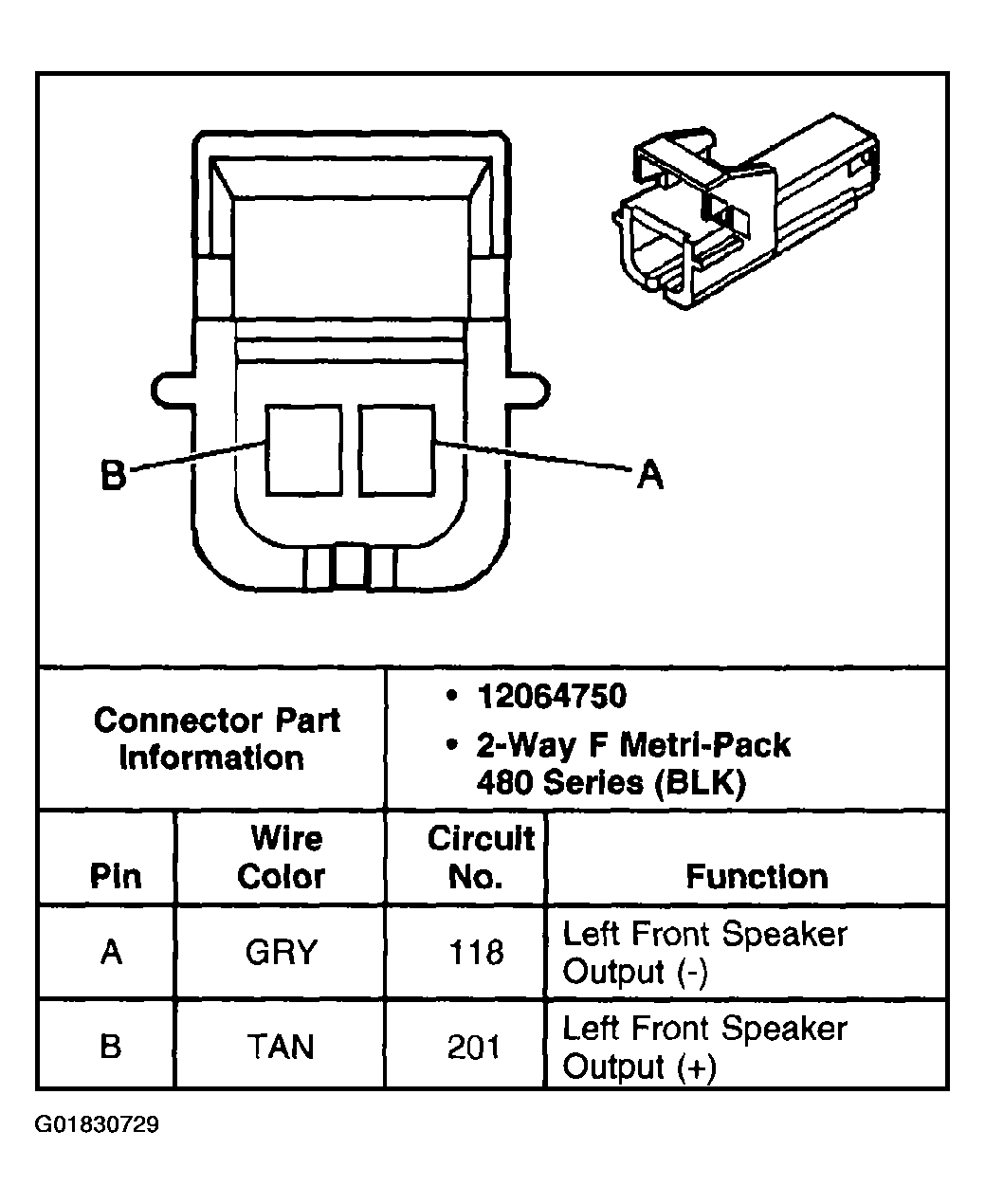

Fig 6: Speaker - LF Door Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: Speaker - LF Door Tweeter Connector End View
Courtesy of GENERAL MOTORS CORP.

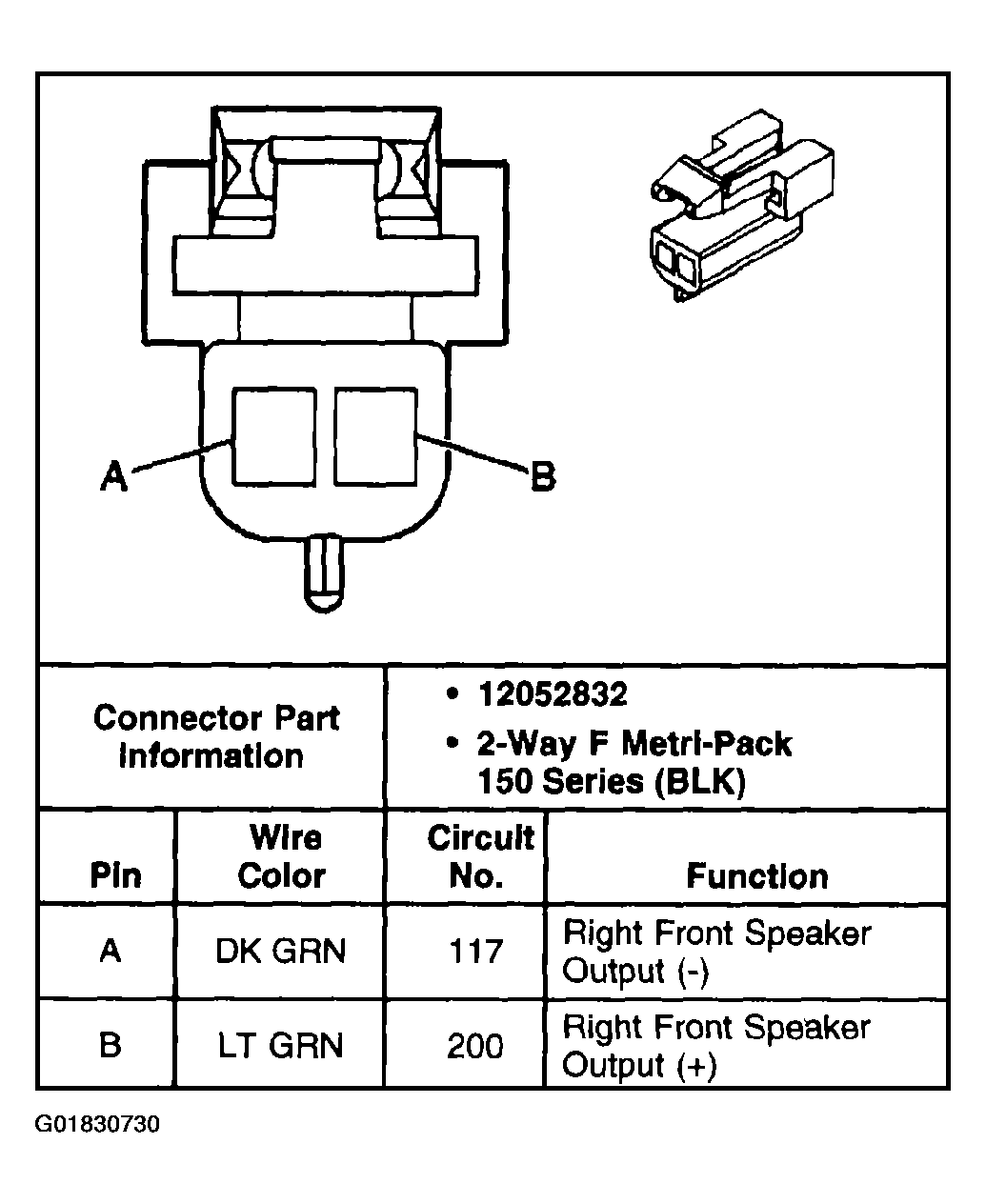

Fig 8: Speaker - RF Door Connector End View
Courtesy of GENERAL MOTORS CORP.

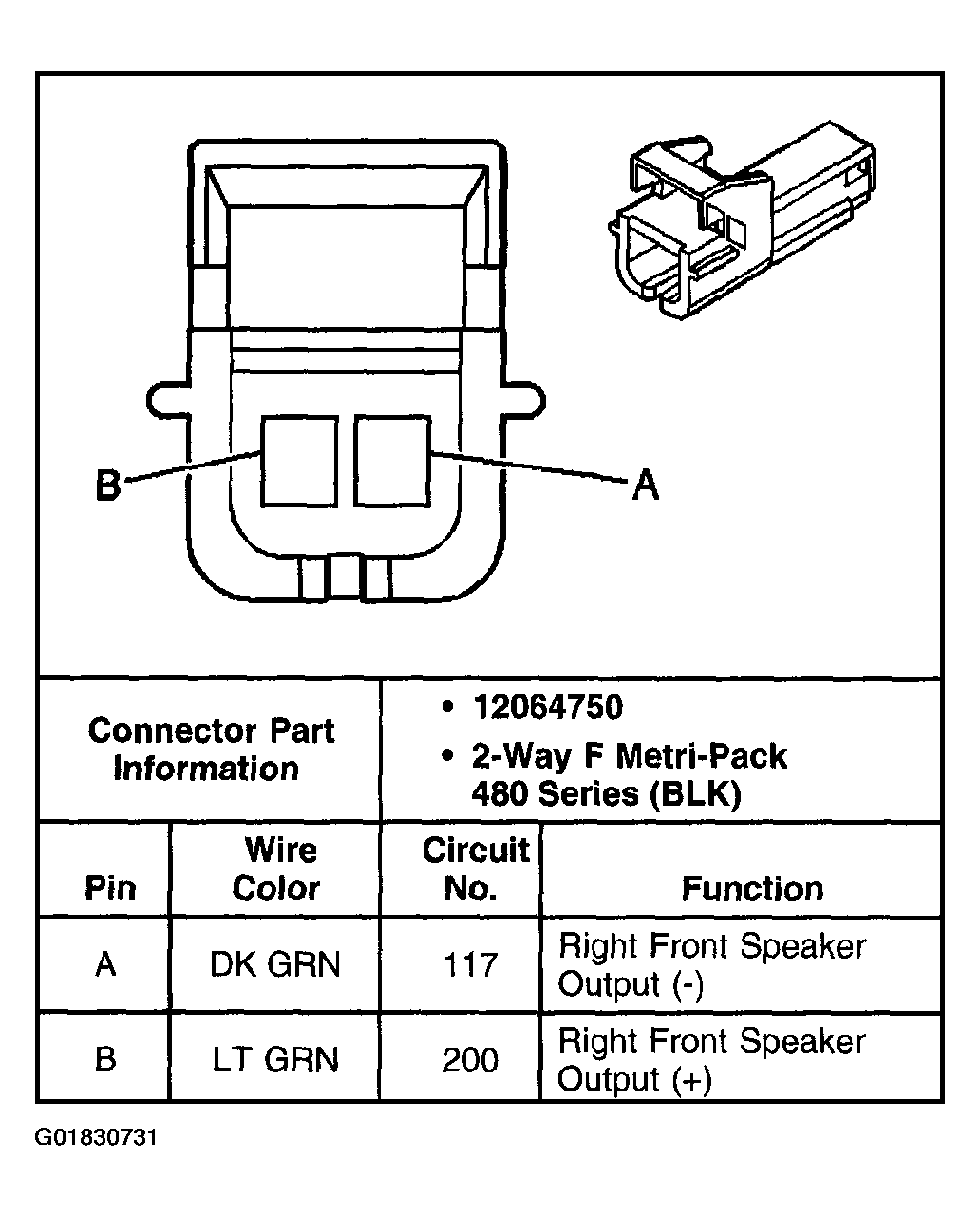

Fig 9: Speaker - RF Door Tweeter Connector End View
