Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat forward.
  2. Remove the seat adjuster-to-floor bolts and tilt the seat forward.
  3. Disconnect the two electric connectors.
    Fig 1: Disconnecting Two Electric Connectors
    G01833240Courtesy of GENERAL MOTORS CORP.
  4. Cut the tie straps on each side of the module.
  5. Remove the heated seat module from the car.

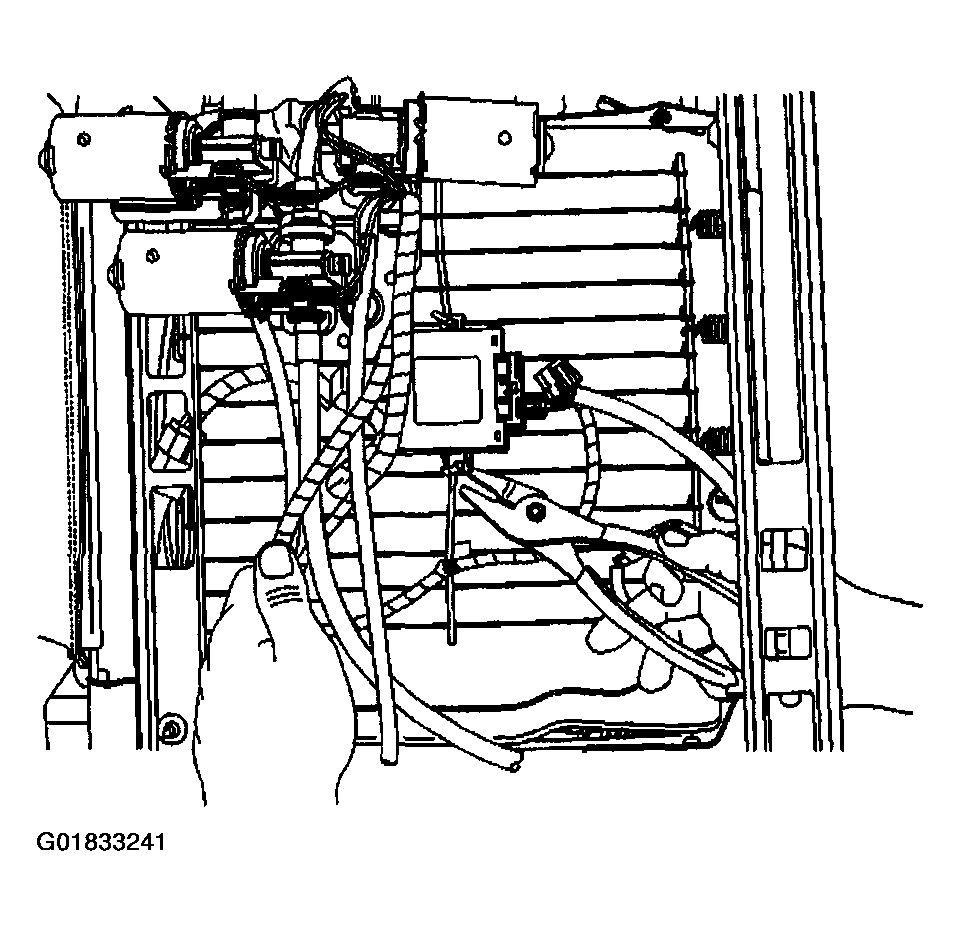

    Fig 2: Cutting Tie Straps On Each Side Of Module
    G01833241Courtesy of GENERAL MOTORS CORP.
