Seat Temperature Control Module: Service and Repair

Front Seat Heater Control Module Replacement

Removal Procedure

1. Position the seat to the full-up position.
2. Remove the front seat frame-to-floor bolts and rotate the seat forward to access the heater module.
3. Remove the rosebud retaining module from the seat frame.

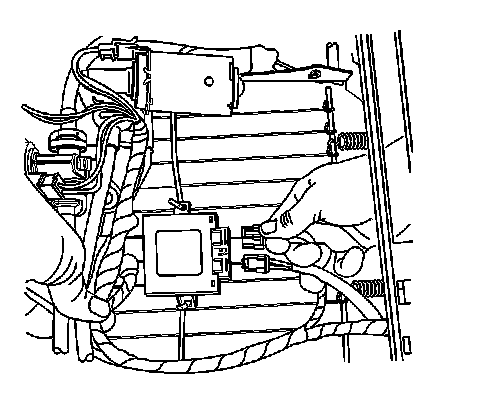

4. Disconnect the electrical connector from the heater module.
5. Remove the heater module from the front seat.

Installation Procedure

1. Install the heater module to the front seat.




2. Connect the electrical connectors to the heater module.
3. Install the rosebud that attaches the module to the front seat frame.

Notice: Refer to Fastener Notice in Cautions and Notices.

4. Install the front bucket seat adjuster-to-floor pan bolts.

Tighten the bolts to 42 Nm (31 lb ft).

5. Reposition the front seat to the original position.
