Engine

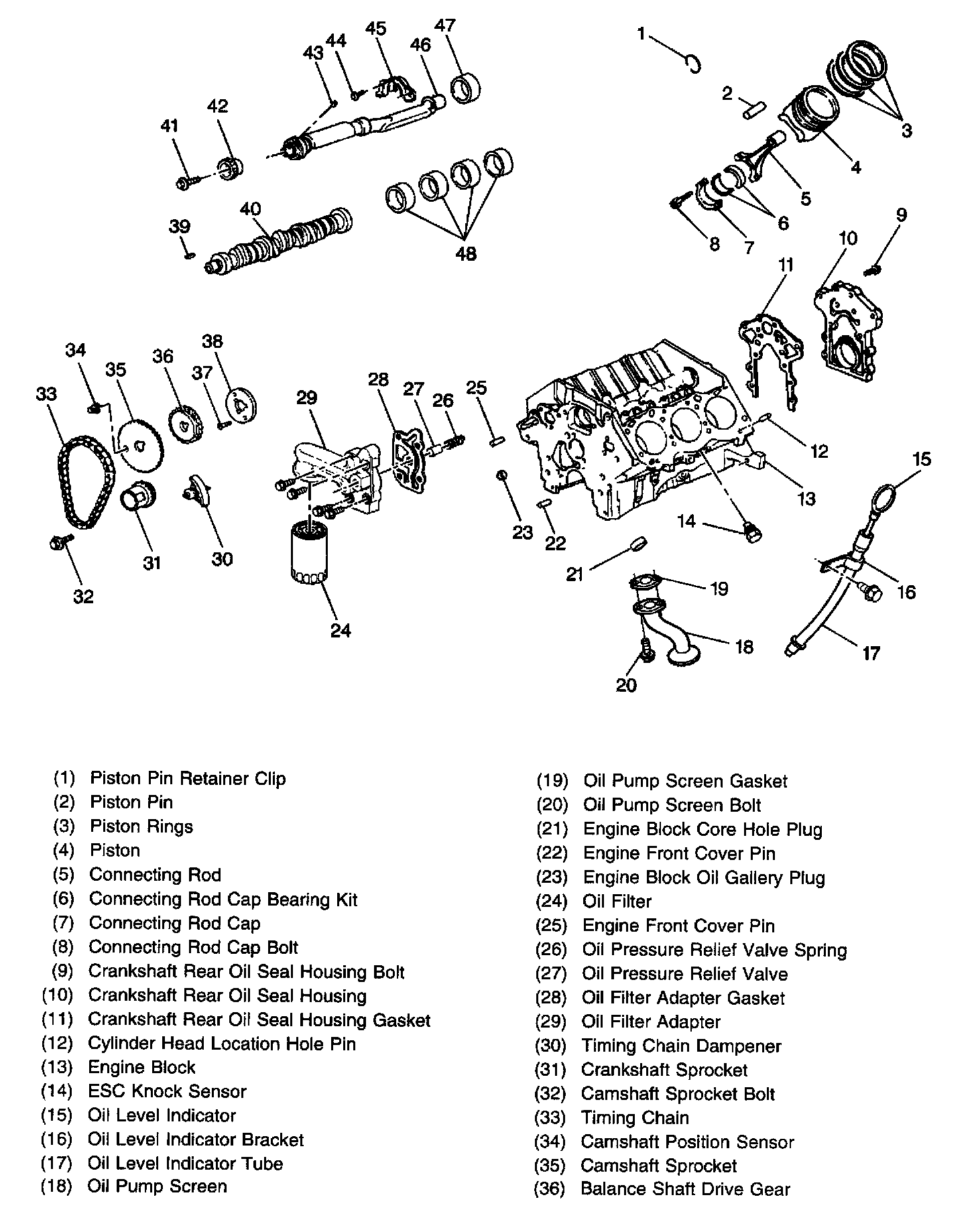

Engine Block and Components

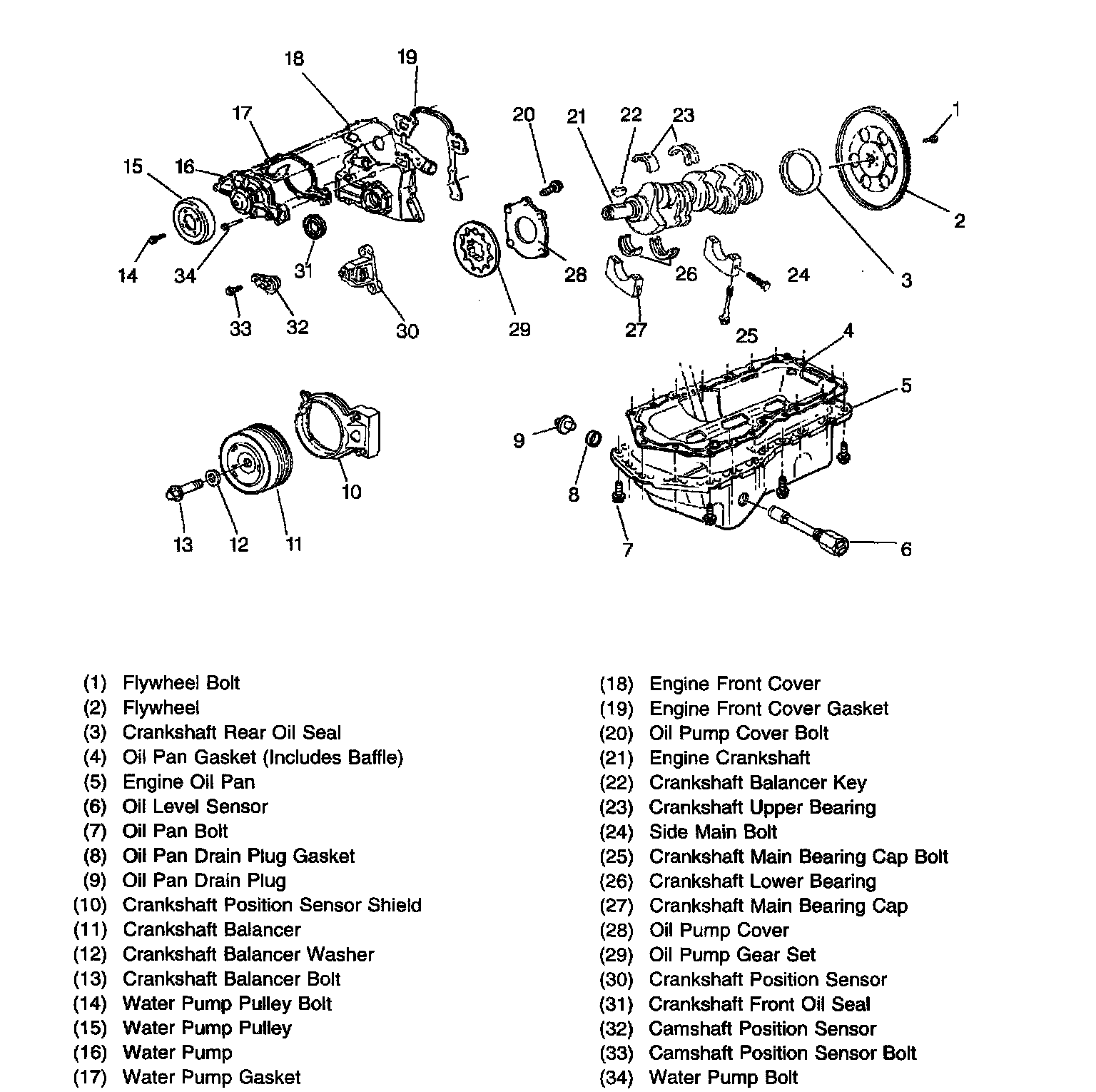

Crankshaft and Components

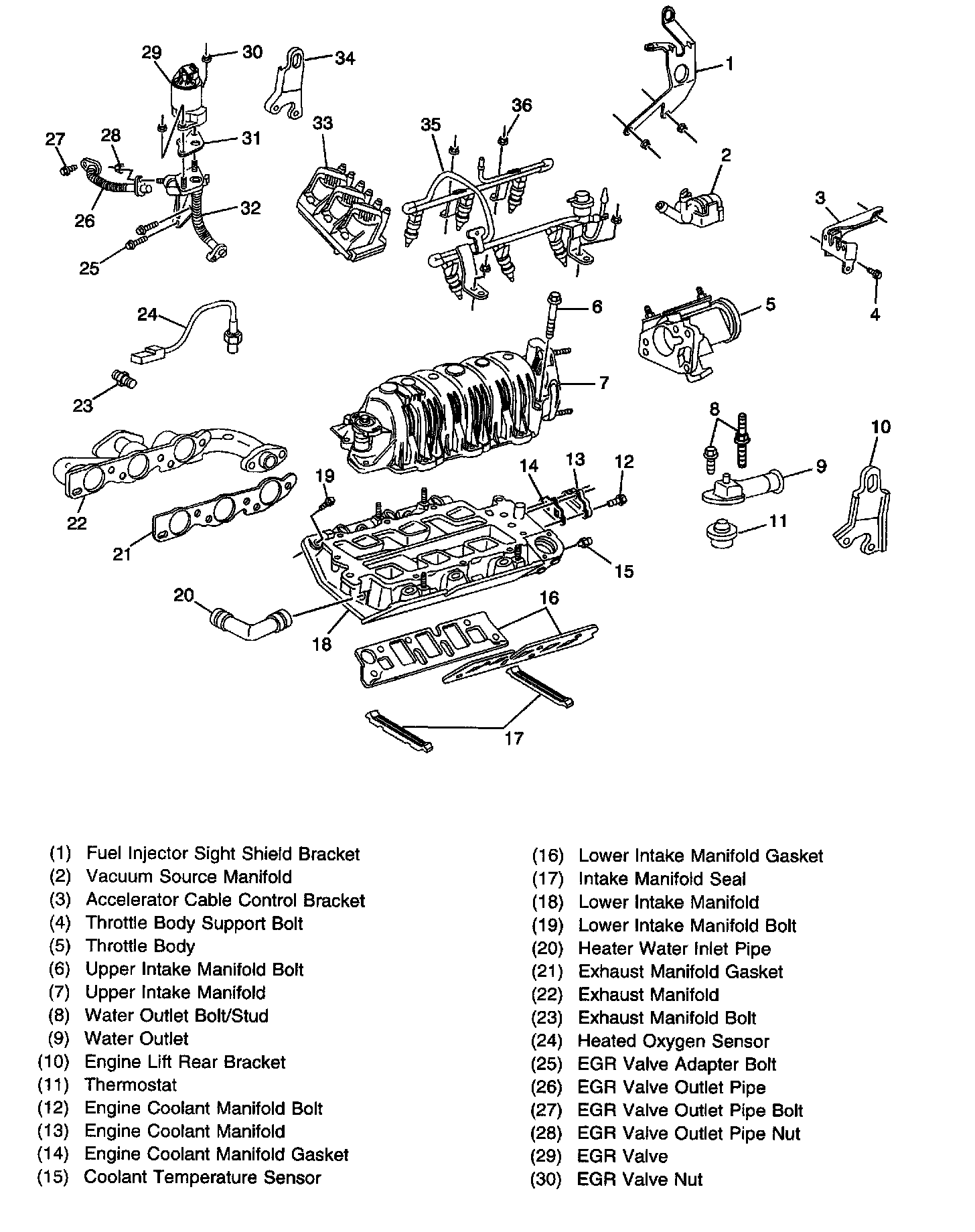

Intake Manifold and Components

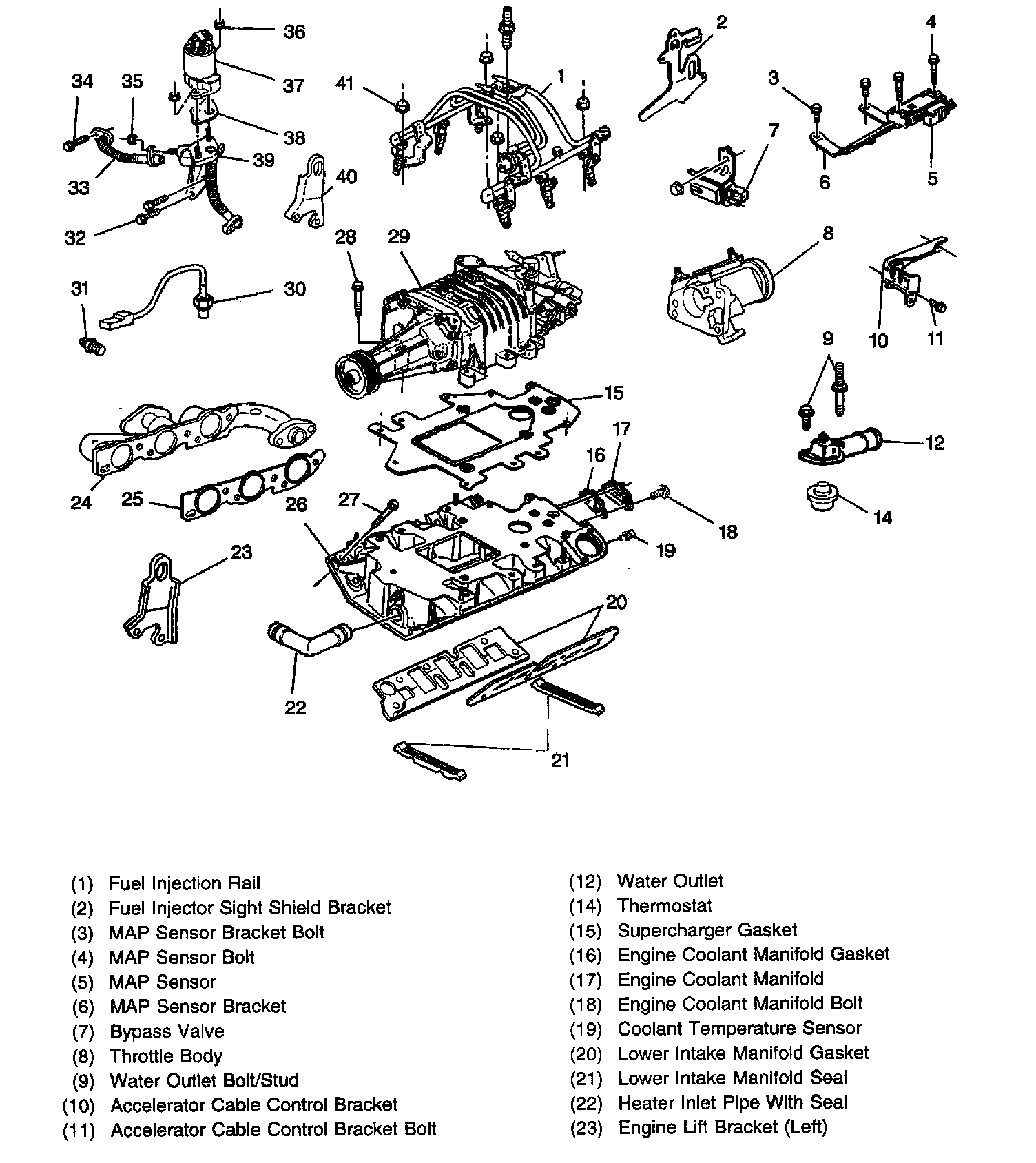

Supercharger and Components VIN 1

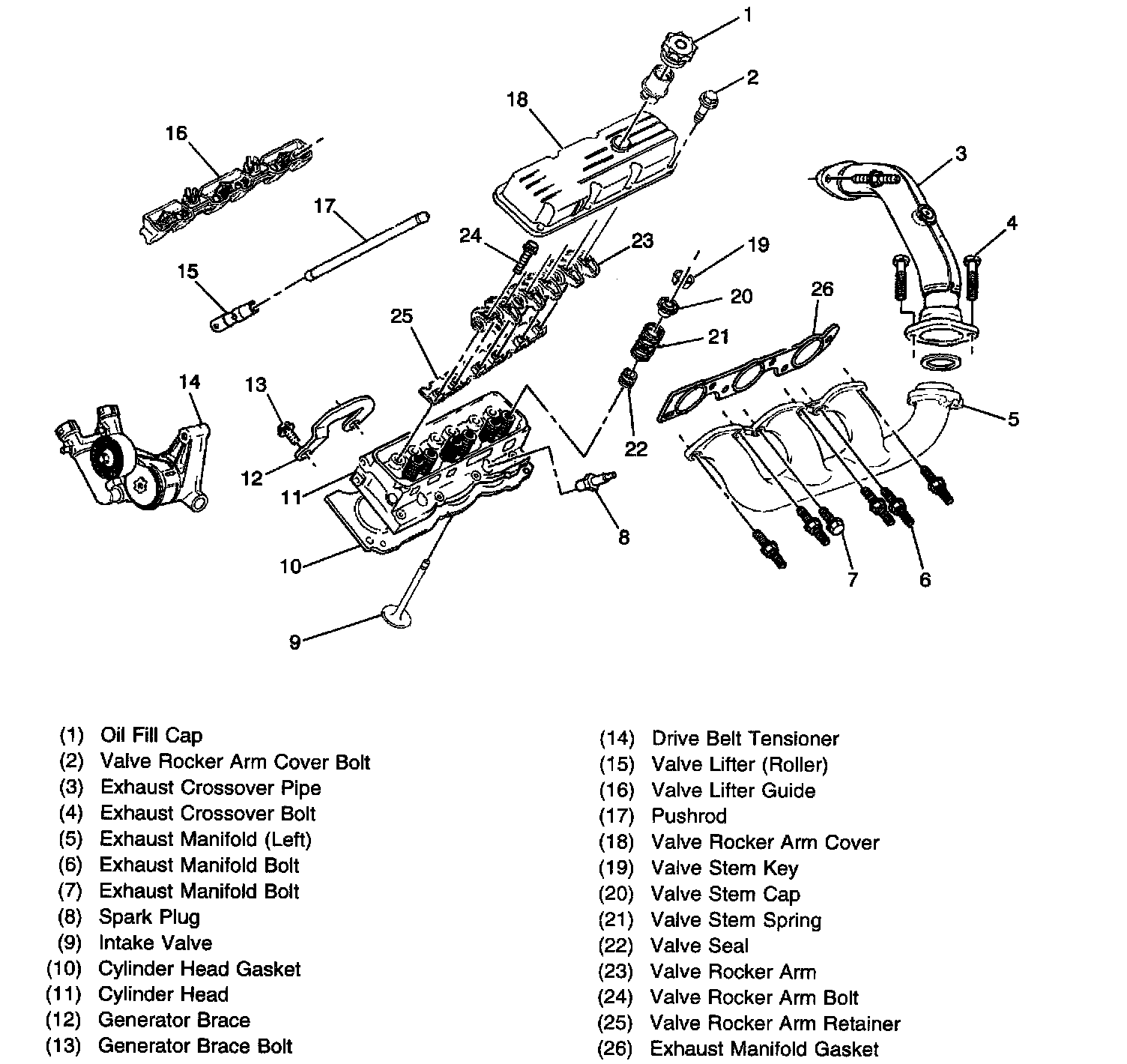

Cylinder Head and Components

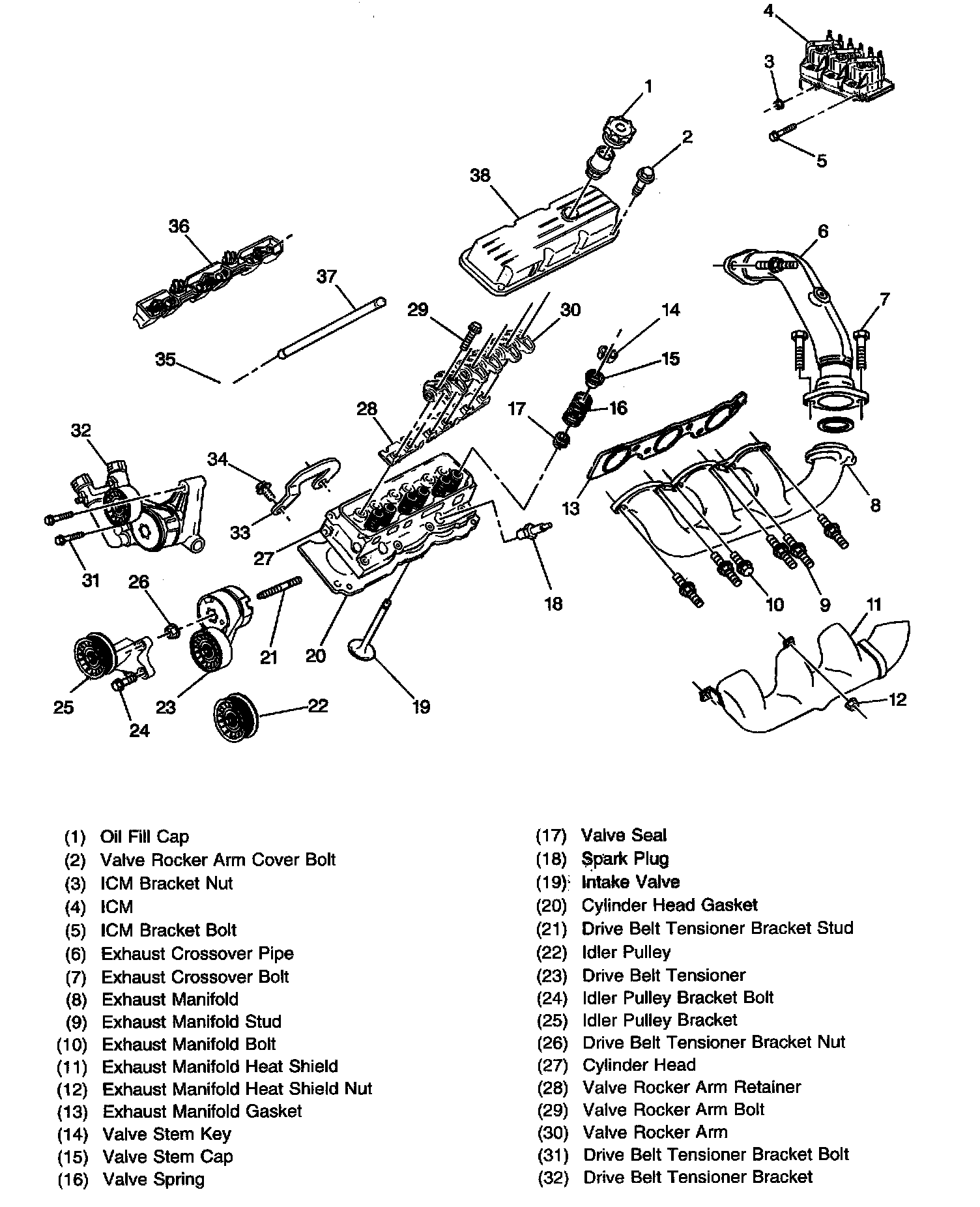

Cylinder Head and Components VIN 1
