Air Flow Meter/Sensor: Service and Repair

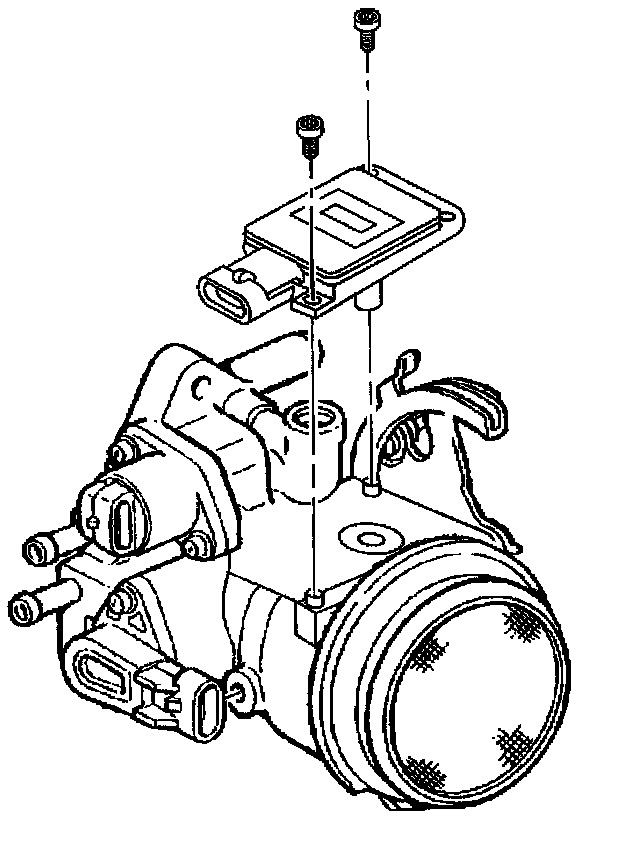

The MAF sensor on this engine is attached to the throttle body assembly.




REMOVAL PROCEDURE
1. Turn the ignition OFF.
2. Disconnect the MAF sensor electrical connector.
3. Remove the screws holding the MAF sensor to the throttle body.
4. Remove the MAF sensor from the throttle body.

INSTALLATION PROCEDURE
1. Carefully position the MAF sensor to the throttle body.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Reinstall the screws holding the MAF sensor to the throttle body.
3. Connect the electrical connector.
