Fuel Level Sensor: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: Always maintain cleanliness when servicing Fuel System components.

1. Relieve Fuel System pressure. Refer to Fuel Pressure Relief Procedure.
2. Remove the modular fuel sender assembly.

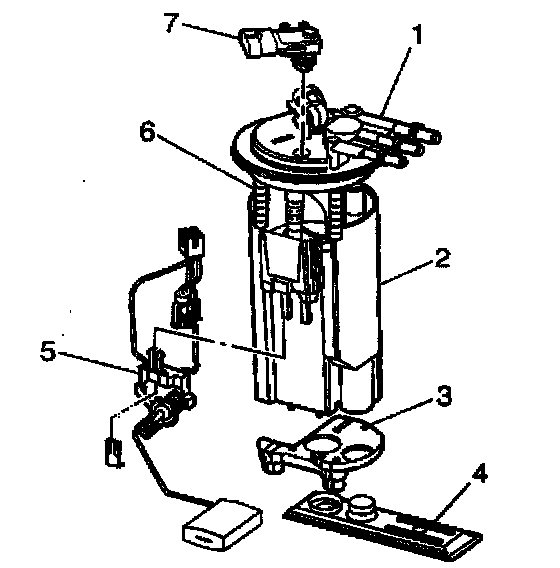

3. Remove the fuel level sensor (5) from the modular fuel sender.

INSTALLATION PROCEDURE
1. Install the fuel level sensor (5) to the modular fuel sender.
2. Install the fuel sender assembly.
3. Tighten the fuel fill cap.
4. Reconnect the negative battery cable.
5. Inspect for fuel leaks.
5.1. Turn ON the ignition for 2 seconds.
5.2. Turn OFF the ignition for 10 seconds.
5.3. Turn ON the ignition.
5.4. Check for fuel leaks.
6. Install the fuel injection sight shield.
